| Prod Model: |
ZS-PC16-6-161 |
| Supplier's Nature: |
Manufacturer |
| Certificate: |
ISO, TUV, CCC, IEC |
| Freight: |
Customer Pay for It |
| Employee: |
800-1000 People |
| Core Specification: |
Copper Core or Aluminium Core or Tinned Core |
| OEM: |
Ok |
| ODM: |
Ok |
| Delivery Time: |
7 Workdays |
| Application: |
Telecommunication |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
XLPE |
| Certification: |
VDE |
| Wire Core Material: |
Copper, Aluminium, as Per Client′s Request |
| Model: |
Zs-PC16-6-161 |
| Brand: |
Dayuan |
Product Description

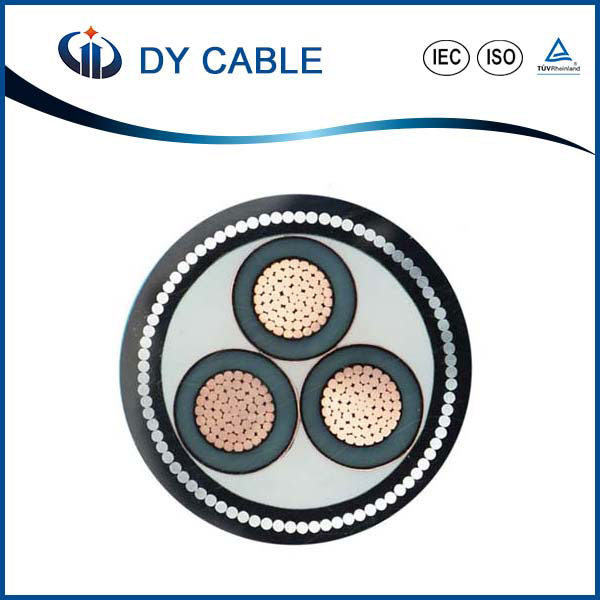

3.6-6kv 26-35kv XLPE Insulated Power Cable Yjv32 Yjv
Specifications
1 Conductor:Copper or Aluminium
2 Insulation:PVC or XLPE
3 Voltage:Low/Medium/High Voltage
Technical Parameters of our Power Cable
1). Standard: IEC60502; GB/T12706;IEC 60840;IEC62067;GB/T 11017;GB/Z 18890
2). Detailed description or construction:
* Conductor: compacted or uncompacted copper or aluminium
* Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
* Filler: Polypropylene filament with lapped binding tape
* Binder: Binding tape
* Inner sheath: Polyvinyl chloride (PVC)
* Armour: Galvanized steel wire armored (SWA) or steel tape armored (STA)
*Sheath: Polyvinyl chloride (PVC)
3). The rated voltages U0/U(Um) of the cables considered in this standard are as follows:
U0/U(Um) =0.6/1(1.2)-3.6/6(7.2)-6/10(12)-6.35/11(12)-8.7/15(17.5)-12/20(24)-12.7/22(24)-18/30(36)-19/33(36)-26/35(40.5)KV
4). Voltage:
0.6/1kV, 1.8/3kV, 3.6/6kV, 6/10kV,6.35/11kV, 8.7/15kV, 12/20kV,12.7/22kV, 18/30kV,19/33kV,26/35kV
In the voltage designation of cables U0/U(Um):
* U0 is the rated power frequency voltage between conductor and earth or metallic screen for which the cable is designed;
* U is the rated power frequency voltage between conductors for which the cable is designed;
* Um is the maximum value of the "highest system voltage" for which the equipment maybe used.
5). Application:
For laying indoors, in tunnel or cable trench with large difference of level able to bear external mechanical forces.
6). Marking: According to the customers' requirements
7). Nominal cross-sectional areas:
1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2, 800mm2
4. Name & Application
| Type | Description | Application |
| VV | Copper ( Al) PVC insulation PVC sheath power cable | Can be laid in indoor tunnels and pipelines, can't bear external mechanical force. |
| VV22 | Copper (Al) steel tape armored PVC insulation / sheath power cable | Can be laid in indoor tunnels and pipelines, can't bear external mechanical force. |
| VV32 | Copper (Al) thin steel wire armored PVC insulation / sheath power cable | Can be laid in indoor tunnels and pipelines, can't bear external mechanical force. |
| VV42 | Copper (Al) thick steel wire armored PVC insulation / sheath power cable | Can be laid in indoor tunnels and pipelines, can't bear external mechanical force. |
| YJV | Copper ( Al) XLPE insulation PVC sheath power cable | Can be laid indoor, outdoor, tunnels, reinforced concrete pipelines or loose soil. Cable can't bear outer mechanical force, but can bear a certain traction force. |
| YJV22 | Copper (Al) steel tape armored XLPE insulation PVC sheath power cable | Laid underground, cable be bear outer mechanical force, but should not bear a large traction force. |
| YJV32 | Copper (Al) thin steel wire armored XLPE insulation PVC sheath power cable | Laid indoor, tunnel or mines. Cable can bear outer mechanical force and fairly large traction force. |
| YJV42 | Copper (Al) thick steel wire armored XLPE insulation PVC sheath power cable | Can be laid in vertical section, indoor, tunnels or mines. Cable can bear outer mechanical force and very large traction force. |
5. Specification
| Type | Voltage | Section | Core Number |
| VV | YJV | 0.6/1kV | 1.5-800mm2 | 1 |
| VV22 VV32 | YJV22 YJV32 | 2.5-400mm2 |
| VV42 | YJV42 | 10-400mm2 |
| VV | YJV | 0.6/1kV | 1.5-400mm2 | 2 |
| VV22 VV32 | YJV22 YJV32 | 2.5-400mm2 |
| VV42 | YJV42 | 4-400mm2 |
| VV | YJV | 0.6/1kV | 1.5-400mm2 | 3 |
| VV22 VV32 | YJV22 YJV32 | 2.5-400mm2 |
| VV42 | YJV42 | 4-400mm2 |
| VV VV22 | YJV | 0.6/1kV | 4-400mm2 | 4,3+1,5,
4+1, 3+2 |
| VV32 VV42 | YJV32 YJV42 | 4-400mm2 |
6. Top Ranking Manufacture Equipment for HV/MV/LV of Power cables from Professional Suppliers
| Name | Type | Origin | Application |
| 35KV Cable production line | CCV | Maillefer Finland | Production of medium voltage insulation wire core |
| 35KV Cable production line | CCV | TROESTER Germany | Production of medium voltage insulation wire core |
| 110KV Cable production line | CCV | TROESTER Germany | Production of high voltage insulation wire core |
| 500KV Cable production line | VCV | Maillefer Finland | Production of high voltage insulation wire core |
| 500KV Cable production line | VCV | TROESTER Germany | Production of high voltage insulation wire core |
| 35KV rubber cable production line | CCV | TROESTER Germany | Production of medium voltage rubber cables |
| 630 Frame type stranding machine | 91 wires | Pourtier France | Production for blocks of large section conductor |
| 3600 Drum-twister for milliken conductor | DPTC3600 | Pourtier France | Production for blocks of large section conductor |
| High voltage cable out-sheath Product Line | Φ150+90 | Germany (Shanghai) TROESTER Machinery Co., Ltd. | Production for EHV cable double sheath |
7. Our Services:
Luoyang Da Yuan Cable Factory Co., Ltd., a professional wires and cables manufacturer for 6 years in China. Da Yuan attends International Exhibitions every year, we support to offer many kinds of wires and cables, such as xlpe/pvc electrical power cable, control power cable, aerial cable, ABC, AAC, AAAC, ASCR cables, and XLPO/PVC Solar PV Cable etc. We can produce the standard: ASTM, BS, CSA, IEC, ASMC, DIN as your need.
1). Factory: 200,081 square meters, available for OEM&ODM;
2). Lead time: 5-7 working days after payment received;
3). Authentication: CCC,ISO9001, CQC, etc;
4). Payment terms: T/T, L/C;
5). Guarantee: 17 years;
6). QC inspection: Strict inspection before delivery;
8.After-sales Service:
1). All our cables will be tested well in production and before delivery.
2). Please contact us if any problem, we will respond within 24 hours.
9. Company Certifications:
National Products Safety Cerficcation;
ISO9001 Quality System Certification;
CCC Chinese National Compulsory Products Certification;
Occupational Health Safety Management System Certification;
Environmental Management System Certification;
Production License of Industrial Products;
International Standard Products Sysmbol Certificate, etc.
