| Prod Model: |
YKS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Squirrel Cage High Voltage Motor |
| Protect Feature: |
Enclosed |
| Structure: |
Asynchronous Motor |
| Phase: |
Three Phase |
| Color: |
Grey or Other |
| Shape: |
Linear |
| Scope Of The Center Height: |
H355~H1000 |
| Work Mode: |
S1 |
| Protection Class: |
IP55 |
| Insulation Class: |
F |
| Function: |
Driving |
| Number Of Stator: |
Three-Phase |
| Number Of Poles: |
2, 4, 6, 8, 10, 12 |
| Brand: |
Pinnxun |
| Certification: |
CE, ISO, CCC |
Product Description
Product: Yks Series Air Water Cooling High Volage Squirrel Cage ac motor
Feature and usage
YKS series (6kv 10kv) 3-Phase High Voltage squirrel cage motor produced according to JB/T10446-2004(center height from 355mm to 630mm). The protection degree of YKS series motor is of IP44/IP54, cooling method is of ICW81A
YKS Series 3-Phase High Voltage squirrel cage motor is used to drive various mechanical equipment such as blowers, compressors, pumps, crushers, stock removing machines. It can serve as the prime movers in coalmines, mechanical industries, power plants and various industrial enterprises.
The structure and the mounting type is of IMB3 with continuous duty (S1). The rated frequency is 50HZ and the rated voltage is 6KV 10KV, special voltage requirements should be negotiate with the manufacturer before order is placed.
YKS Series 3-Phase High Voltage squirrel cage motor has such advantages: High efficiency, energy saving, low noise, low vibration, light weight, and reliable performance. Easy for installing and maintenance
Yks Squirrel cage electric motor Motor Performance
Power range: 160kw-6000kw
Frame Size: 355-1000mm
Rated Voltage: 3.3KV 6.6KV 10KV 11KV 13.8KV
Speed; 3000rpm 1500rpm 1000rpm 750rpm 600rpm
Protection Class: IP44 IP54 IP55
Cooling type; IC611 IC616
Ambient Temperature: -15° C~40° C
Altitude: Not exceed 1000 Meter
Rated Frequency: 50Hz/60Hz
Insulation Class: F
Temprature rise: B
Working Duty: S1(Continuous)
Company information

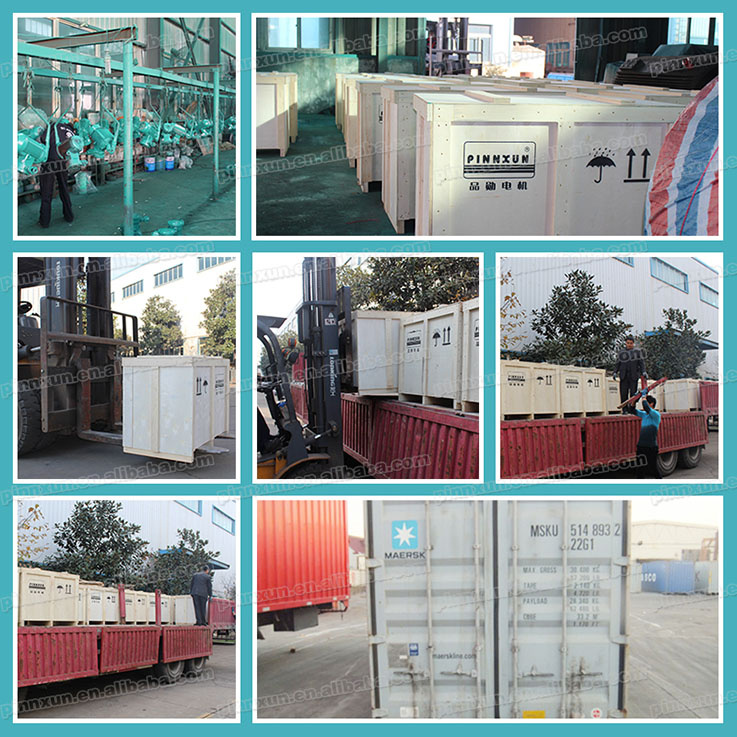

Packing information
Our Servies
WHY CHOOSE US
WHAT WE DO AT PINNXUN
Stamping of lamination
Rotor die-casting
Winding and inserting - both manual and semi-automatically
Vacuum varnishing
Machining shaft, housing, end shields, etc
Rotor balancing
Painting - both wet paint and powder coating
Motor assembly
Packing
Inspecting spare parts every processing
100% test after each process and final test before packing.
Warranty Terms:
1. Order warranty: We have large production capacity, can ship in a short time.
2. Quality warranty: We test every motor one by one to ensure our quality before we deliver the
Motors.
3. Shipping warranty: We choose the fastest and the most reliable forward agent to deliver our motors.
Delivery terms: Ex-works/FOB, CFR and CIF.
4. Service after sale warranty: Our motors warranty time: 12 months. And We have professional team
Who work on service after sale to help you to solve your technical problem. We will try our best to
Answer all your questions and improve the defect.
5. Replacement warranty: Once you find our motors is defected, we will replace it unconditionally.
|
No. |
Squirrel cage motor |
Y |
YKK |
YKS |
Y2 |
|
Slip ring motor |
YR |
YRKK |
YRKS |
/ |
|
1 |
Structure |
Box-type construction, made up of steel plates welded with each other |
Compact struction |
|
2 |
Cooling method |
IC01 or (IC11, IC21, IC31) |
IC611 or IC616 |
IC81W |
IC411 |
|
3 |
Natural ventilation, with top mounted protection cover |
With top mounted air-air cooler |
With top mounted air-water cooler |
|
|
4 |
Protection type |
IP23 |
IP44 or IP54 |
IP44 or IP54 |
IP54 |
|
5 |
Insulation |
F |
|
6 |
Mounting arrangement |
IMB3 |
|
7 |
Voltage available |
3kv, 3.3kv; 6kv, 6.6kv; 10kv, 11kv |
|
8 |
Frequency available |
50HZ 60HZ 0-100HZ |
