Prod Model: |
YR |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: |
Slip Ring Low Voltage Motor |
Protect Feature: |
Enclosed |
Structure: |
Asynchronous Motor |
Phase: |
Three Phase |
Color: |
Grey or Other |
Shape: |
Linear |
Scope Of The Center Height: |
H280~H355 |
Work Mode: |
S1 |
Protection Class: |
IP23 |
Insulation Class: |
F |
Function: |
Driving |
Number Of Stator: |
Three-Phase |
Number Of Poles: |
2, 4, 6, 8, 10, 12 |
Brand: |
Pinnxun |
Certification: |
CE, ISO, CCC |
Product Description

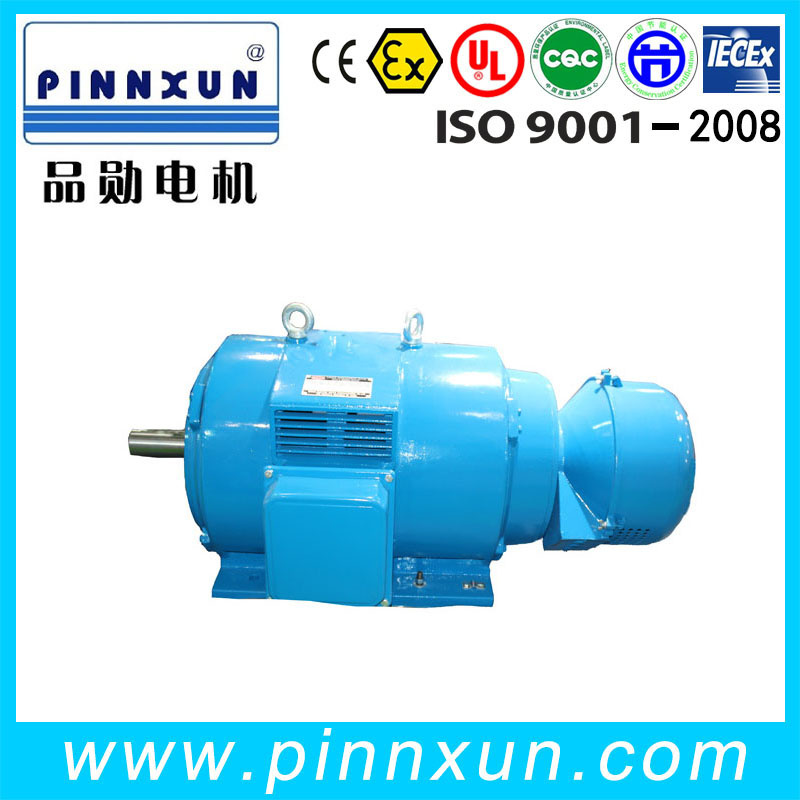

Product: YR winding three phase induction motor
1. YR winding horizontal three phase induction motor Geneal
YR series (IP23) three-phase asynchronous motors is for general purpose wound rotor three-phase asynchronous motor, updated products of the latest design.Their level of power and installation size in accordance with IEC standard.The shell of the motor protection class is IP23, cooling way IC01, working system S1, suitable for excluding inflammable, explosive, corrosive gas and cleaner place.
Motor has high efficiency, low noise advantages.Motor meet JB5269 (H280), JB5270 (H315-355 YR) series (IP23) three-phase asynchronous motor technology conditions.
Model Explanation
YR 3551-----4
YR---------------------Wound rotor asynchronous motor
3551----------------------------Center height is 355mm,NO.1 iron core
4-----------------------------------pole number
(1) sea level is not over 1000m
(2) the highest ambient temperature is not over 40 °C,the lowest ambient temperature is -15°C
(3) In moist month,the monthly overage highest relative humidity is 90%,at the same time,the monthly overage lowest temperature is not over 25 °C
(4) The frequency of power source is 50HZ ±1%
(5) The vaiation fo work voltage is not over rated voltage ±5%
(6) Moto rating is continuos operation system S1.
Company Information
Packing & Shipping
Our Servies
WE ARE READY
Q: Do you offer OEM service?
A: Yes.
Q: What is your payment term?
A: 30% T/T in advance, 70% before delivery. Or irrevocable L/C.
Q: What is your lead time?
A: About 10-45 days after receiving deposit or original L/C.
Q: What certifiicate do you have?
A: We have CE, ISO,CCC and so on.
WHY CHOOSE US
WHAT WE DO AT PINNXUN
- Stamping of lamination
- Rotor die-casting
- Winding and inserting - both manual and semi-automatically
- Vacuum varnishing
- Machining shaft, housing, end shields, etc
- Rotor balancing
- Painting- both wet paint and powder coating
- Motor assembly
- Packing
- Inspecting spare parts every processing
- 100% test after each process and final test before packing.
WHAT PINNXUN CAN DO FOR CUSTOMERS
- PINNXUN supplies standard products to customers.
- PINNXUN supplies standard products under customers' brands and packaging, etc
- PINNXUN R&D department develops any new products together with the customers.
- Warranty Terms :
1. Order warranty: We have large production capacity, can ship in a short time.
2. Quality warranty: We test every motor one by one to ensure our quality before we deliver the
motors.
3. Shipping warranty: We choose the fastest and the most reliable forward agent to deliver our motors.
Delivery terms: Ex-works/FOB ,CFR and CIF.
4. Service after sale warranty: Our motors warranty time :12 months .and We have professional team
who work on service after sale to help you to solve your technical problem. We will try our best to
answer all your questions and improve the defect.
5. Replacement warranty: Once you find our motors is defected, we will replace it unconditionally.
Type |
kW |
Volts |
HZ |
RPM |
AMPS |
EF% |
P.F. |
Tm |
Rotor |
Lp |
J kgm2 |
kg |
Bearings |
(Delta) |
V |
I |
(dB) |
DE |
NDE |
200L1-4 |
18.5 |
400 |
50 |
1470 |
33.9 |
90.3 |
0.87 |
3 |
239.4 |
47.6 |
85 |
0.29 |
272 |
6312 |
6312 |
200L2-4 |
22 |
400 |
50 |
1470 |
40 |
91 |
0.87 |
3 |
280.9 |
48 |
85 |
0.32 |
286 |
225M2-4 |
30 |
400 |
50 |
1475 |
52.3 |
92.2 |
0.89 |
3 |
350 |
51.5 |
87 |
0.63 |
376 |
6313 |
6313 |
250M1-4 |
37 |
400 |
50 |
1480 |
67 |
92.2 |
0.86 |
3 |
290 |
78.9 |
89 |
0.87 |
460 |
6314 |
6314 |
250M2-4 |
45 |
400 |
50 |
1480 |
80 |
92.9 |
0.87 |
3 |
338.7 |
81.7 |
89 |
0.98 |
520 |
280S-4 |
55 |
400 |
50 |
1480 |
97 |
92.6 |
0.88 |
3 |
466.4 |
71.5 |
89 |
1.86 |
655 |
6317 |
6317 |
280M-4 |
75 |
400 |
50 |
1485 |
131 |
93.6 |
0.88 |
3 |
381.7 |
118 |
90 |
2.41 |
765 |
315S-4 |
90 |
400 |
50 |
1486 |
157 |
93.8 |
0.88 |
3 |
334 |
159 |
90 |
3.97 |
1175 |
NU319 |
6319 |
315M-4 |
110 |
400 |
50 |
1486 |
189 |
94.8 |
0.88 |
3 |
340 |
191 |
90 |
4.59 |
1300 |
315L1-4 |
132 |
400 |
50 |
1488 |
226 |
94.8 |
0.89 |
3 |
419 |
185 |
93 |
5.33 |
1360 |
315L2-4 |
160 |
400 |
50 |
1489 |
271 |
94.8 |
0.9 |
3 |
496 |
189 |
94 |
6.11 |
1450 |
355M1-4 |
200 |
400 |
50 |
1489 |
329 |
95.2 |
0.92 |
3 |
531 |
227 |
94 |
10.03 |
1952 |
NU322 |
6322 |
355M2-4 |
250 |
400 |
50 |
1489 |
410 |
95.5 |
0.92 |
3 |
638 |
236 |
96 |
11.33 |
2078 |
355L-4 |
280 |
400 |
50 |
1490 |
456 |
95.8 |
0.92 |
3 |
709 |
237 |
96 |
12.47 |
2194 |
400L1-4 |
315 |
400 |
50 |
1485 |
524 |
95.1 |
0.905 |
2.8 |
557 |
340 |
111 |
17.85 |
3390 |
NU324 |
6324 |
400L2-4 |
355 |
400 |
50 |
1486 |
587 |
95.2 |
0.905 |
2.8 |
620 |
344 |
111 |
19.34 |
3515 |
400L3-4 |
400 |
400 |
50 |
1487 |
659 |
95.4 |
0.905 |
2.8 |
698 |
343 |
111 |
21.11 |
3655 |
200L1-6 |
15 |
400 |
50 |
980 |
29.4 |
89.7 |
0.82 |
2.8 |
199.3 |
48 |
78 |
0.41 |
276 |
6312 |
6312 |
225M1-6 |
18.5 |
400 |
50 |
980 |
35.3 |
90.4 |
0.84 |
2.8 |
187 |
62.5 |
80 |
0.65 |
335 |
6313 |
6313 |
225M2-6 |
22 |
400 |
50 |
980 |
41.6 |
91 |
0.84 |
2.8 |
224 |
61 |
80 |
0.72 |
360 |
250M1-6 |
30 |
400 |
50 |
985 |
55.3 |
91.4 |
0.85 |
2.8 |
284.7 |
66.3 |
80 |
1.22 |
480 |
6314 |
6314 |
250M2-6 |
37 |
400 |
50 |
985 |
69 |
91.9 |
0.84 |
2.8 |
337.9 |
68.5 |
81 |
1.35 |
520 |
280S-6 |
45 |
400 |
50 |
985 |
82 |
92.5 |
0.86 |
2.8 |
360.9 |
77.6 |
82 |
2.41 |
645 |
6317 |
6317 |
280M-6 |
55 |
400 |
50 |
985 |
98 |
93.1 |
0.86 |
2.8 |
486 |
70.1 |
82 |
2.74 |
695 |
315S-6 |
75 |
400 |
50 |
990 |
135 |
93.5 |
0.86 |
2.8 |
470 |
98 |
86 |
5.48 |
745 |
NU319 |
6319 |
315M-6 |
90 |
400 |
50 |
990 |
161 |
94.1 |
0.86 |
2.8 |
489 |
113 |
86 |
6.25 |
1335 |
315L1-6 |
110 |
400 |
50 |
990 |
192 |
94.6 |
0.87 |
2.8 |
485 |
140 |
86 |
7.3 |
1421 |
315L2-6 |
132 |
400 |
50 |
990 |
232 |
94.8 |
0.86 |
2.8 |
477 |
170 |
86 |
8.45 |
1430 |
355M1-6 |
160 |
400 |
50 |
992 |
281 |
95 |
0.86 |
2.8 |
471 |
205 |
89 |
12.28 |
1950 |
NU322 |
6322 |
355M2-6 |
200 |
400 |
50 |
993 |
346 |
95.5 |
0.87 |
2.8 |
577 |
209 |
90 |
14.86 |
2164 |
355L-6 |
220 |
400 |
50 |
993 |
381 |
95.5 |
0.87 |
2.8 |
649 |
204 |
90 |
16.71 |
2273 |
400L1-6 |
250 |
400 |
50 |
989 |
444 |
94.5 |
0.86 |
2.6 |
446 |
337 |
108 |
20.69 |
3345 |
NU324 |
6324 |
400L2-6 |
315 |
400 |
50 |
990 |
553 |
94.8 |
0.86 |
2.6 |
536 |
352 |
108 |
23.73 |
3545 |
400L3-6 |
355 |
400 |
50 |
992 |
627 |
95.1 |
0.86 |
2.8 |
670 |
315 |
108 |
28.28 |
3835 |
200L-8 |
11 |
400 |
50 |
730 |
23.7 |
88.4 |
0.75 |
2.4 |
147.3 |
47.3 |
74 |
0.41 |
276 |
6312 |
6312 |
225M1-8 |
15 |
400 |
50 |
735 |
31.9 |
89.7 |
0.75 |
2.4 |
169 |
56 |
76 |
0.71 |
357 |
6313 |
6313 |
225M2-8 |
18.5 |
400 |
50 |
735 |
39.1 |
90.6 |
0.75 |
2.4 |
211 |
54 |
76 |
0.83 |
387 |
250M1-8 |
22 |
400 |
50 |
735 |
44.5 |
90.4 |
0.79 |
2.4 |
213.9 |
64.9 |
77 |
1.18 |
480 |
6314 |
6314 |
250M2-8 |
30 |
400 |
50 |
735 |
61.5 |
91.2 |
0.77 |
2.4 |
274 |
68.4 |
78 |
1.4 |
520 |
280S-8 |
37 |
400 |
50 |
740 |
74 |
91.8 |
0.79 |
2.4 |
281 |
81.7 |
78 |
2.36 |
645 |
6317 |
6317 |
280M-8 |
45 |
400 |
50 |
740 |
86 |
92.8 |
0.8 |
2.4 |
357.7 |
77.7 |
80 |
3 |
735 |
315S-8 |
55 |
400 |
50 |
742 |
104 |
93 |
0.8 |
2.4 |
486 |
69 |
81 |
5.24 |
1050 |
NU319 |
6319 |
315M-8 |
75 |
400 |
50 |
742 |
139 |
93.8 |
0.81 |
2.4 |
498 |
91 |
83 |
6.82 |
1386 |
315L1-8 |
90 |
400 |
50 |
743 |
172 |
94.1 |
0.8 |
2.4 |
504 |
108 |
83 |
7.82 |
1475 |
315L2-8 |
110 |
400 |
50 |
743 |
209 |
94 |
0.81 |
2.4 |
514 |
129 |
83 |
9.21 |
1485 |
355M1-8 |
132 |
400 |
50 |
743 |
246 |
94.4 |
0.82 |
2.4 |
462 |
171 |
86 |
13.24 |
1908 |
NU322 |
6322 |
355M2-8 |
160 |
400 |
50 |
744 |
294 |
94.5 |
0.83 |
2.4 |
562 |
170 |
86 |
16.05 |
2086 |
355L-8 |
185 |
400 |
50 |
744 |
345 |
94.5 |
0.82 |
2.4 |
655 |
168 |
86 |
17.84 |
2203 |
400L1-8 |
200 |
400 |
50 |
740 |
404 |
93.8 |
0.76 |
3 |
464 |
257 |
102 |
18.9 |
3275 |
NU324 |
6324 |
400L2-8 |
250 |
400 |
50 |
740 |
498 |
94 |
0.76 |
3 |
557 |
267 |
105 |
21.94 |
3470 |
400L3-8 |
315 |
400 |
50 |
740 |
624 |
94.5 |
0.76 |
3 |
|
|
|
|
|
