| Prod Model: |
YRKK |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Slip Ring High Voltage Motor |
| Protect Feature: |
Enclosed |
| Structure: |
Asynchronous Motor |
| Phase: |
Three Phase |
| Color: |
Grey or Other |
| Shape: |
Linear |
| Scope Of The Center Height: |
H355~H1000 |
| Work Mode: |
S1 |
| Protection Class: |
IP55 |
| Insulation Class: |
F |
| Function: |
Driving |
| Number Of Stator: |
Three-Phase |
| Number Of Poles: |
2, 4, 6, 8, 10, 12 |
| Brand: |
Pinnxun |
| Certification: |
CE, ISO, CCC |
Product Description

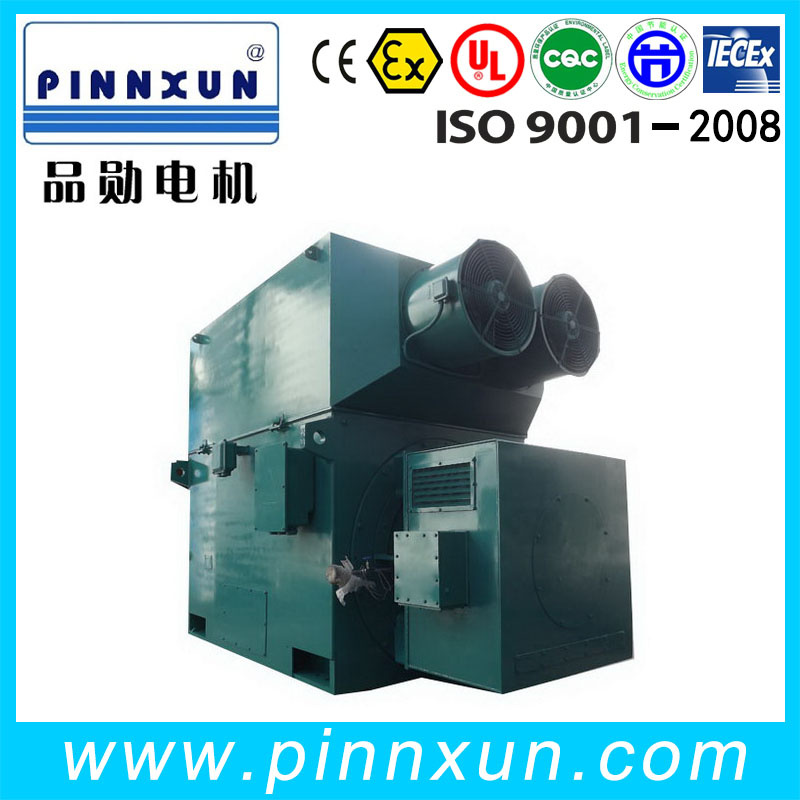

Product: YRKK slip ring electric motor
Feature and usage
YRKK slip ring electric motor Feature and usage:
Y, YR series, YKK, YKS, YRKK, YRKS series medium sized high voltage three phases asynchronous motors (shaft height 355-1000mm) are our optimized product series adopted the technical standard of high voltage three-phases asynchronous motors introduced from ABB and established on the basis of our experience of manufacturing high voltage motors, for upgrading the old JS, JSQ, JR and JRQ series.
These series motors adopt fine materials, excellent workmanship and features low operation cost, low noise, low vibration, high reliability and convenience for installation and maintenance.
The motors of these series meet the National Standard GB755 (Fundamental Technical Requirements For Rotation Electrical Machines), IEC Standards and Enterprise Standard of Mechanical and Electronic Industries Department JB/DQ3134, JB/DQ3135, JB/DQ3436 and JB/DQ3437.
The mechanical dimensions and tolerances of this series of motors conform with the China national standard GB l800-1804 and the ISO standard.
In respect to enclosure protection degree, the motor of these series are of IP23 and IP44 of GB4942.1 and IEC34-5 (Classification of Enclosure Protection of Electrical Machines). Motors of drip-proof IP23 can be modified to motors of pipe ventilation IP44 upon request of customer requests. Other protection degree such as IP24 and IP54 are also possible by separate agreement if customer requests.
In respect to type of cooling, the motors of these series are of IC01, IC611 and IC81W of China National Standard GB1993 and IEC34-6 (Type of Cooling of Electrical Machines). Other type of cooling are also possible by separate agreement if customer requests.
In respect to type of mounting the motors of these series are of IMB3 horizontal with feet, satisfying the requirements of GB997 and IEC34-7 (Construction and Code for Type of Mounting of Electrical Machines).
YRKK slip ring electric motor Model Explanation
YRKK slip ring electric motor Motor Performance
Power range: 160kw-6000kw
Frame Size: 355-1000mm
Rated Voltage: 3.3KV 6.6KV 10KV 11KV 13.8KV
Speed; 3000rpm 1500rpm 1000rpm 750rpm 600rpm
Protection Class: IP44 IP54 IP55
Cooling type; IC611 IC616
Ambient Temperature: -15° C~40° C
Altitude: Not exceed 1000 Meter
Rated Frequency: 50Hz/60Hz
Insulation Class: F
Temprature rise: B
Working Duty: S1(Continuous)
Company information
Packing information
Our Servies
WHY CHOOSE US
WHAT WE DO AT PINNXUN
Stamping of lamination
Rotor die-casting
Winding and inserting- both manual and semi-automatically
Vacuum varnishing
Machining shaft, housing, end shields, etc
Rotor balancing
Painting -both wet paint and powder coating
Motor assembly
Packing
Inspecting spare parts every processing
100% test after each process and final test before packing.
Warranty Terms:
1. Order warranty: We have large production capacity, can ship in a short time.
2. Quality warranty: We test every motor one by one to ensure our quality before we deliver the
Motors.
3. Shipping warranty: We choose the fastest and the most reliable forward agent to deliver our motors.
Delivery terms: Ex-works/FOB, CFR and CIF.
4. Service after sale warranty: Our motors warranty time: 12 months. And We have professional team
Who work on service after sale to help you to solve your technical problem. We will try our best to
Answer all your questions and improve the defect.
5. Replacement warranty: Once you find our motors is defected, we will replace it unconditionally.
|
No. |
Squirrel cage motor |
Y |
YKK |
YKS |
Y2 |
|
Slip ring motor |
YR |
YRKK |
YRKS |
/ |
|
1 |
Structure |
Box-type construction, made up of steel plates welded with each other |
Compact struction |
|
2 |
Cooling method |
IC01 or (IC11, IC21, IC31) |
IC611 or IC616 |
IC81W |
IC411 |
|
3 |
Natural ventilation, with top mounted protection cover |
With top mounted air-air cooler |
With top mounted air-water cooler |
|
|
4 |
Protection type |
IP23 |
IP44 or IP54 |
IP44 or IP54 |
IP54 |
|
5 |
Insulation |
F |
|
6 |
Mounting arrangement |
IMB3 |
|
7 |
Voltage available |
3kv, 3.3kv; 6kv, 6.6kv; 10kv, 11kv |
|
8 |
Frequency available |
50HZ 60HZ 0-100HZ |
Shanghai Pinnxun Electric Motor Co., Ltd located in the Beautiful scenery, convenient transportation international metropolis, ----Shanghai. Is a modernized large scale enterprise for motor and control system manufacturing, R&D, sales and services. Pinnxun always take good faith, responsibility, carefulness and excellence as our management philosophy, committed to providing customers with superior quality products, perfect solutions and Advisory pre and after sales service.

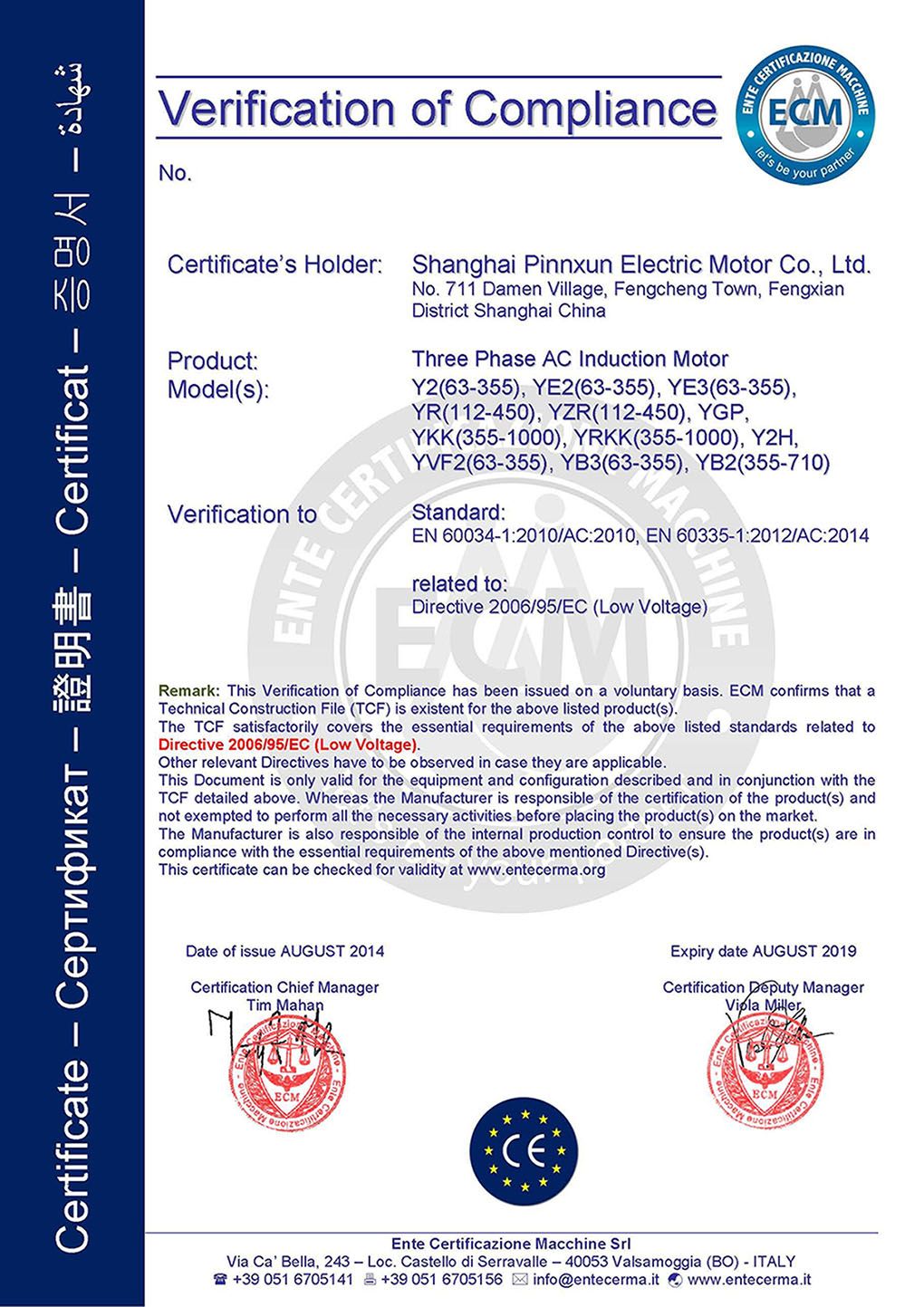

Pinnxun Motor had passed the ISO9001-2008 quality control system certificate and European Union CE certificate. Company products was designed and manufactured strictly according to IEC and DIN standards of high efficiency, energy saving, economy, environmental protection requirments, Company have sellf-support right to import and export. Motors and had widely export to more than 40 countries including Europe, Australia, Southeast Asia, Middle East, Africa and other countries and regions. Companies continue to introduce advanced production technology, while continuing to improve their management level, To set up a solid foundation for the company' S development.
