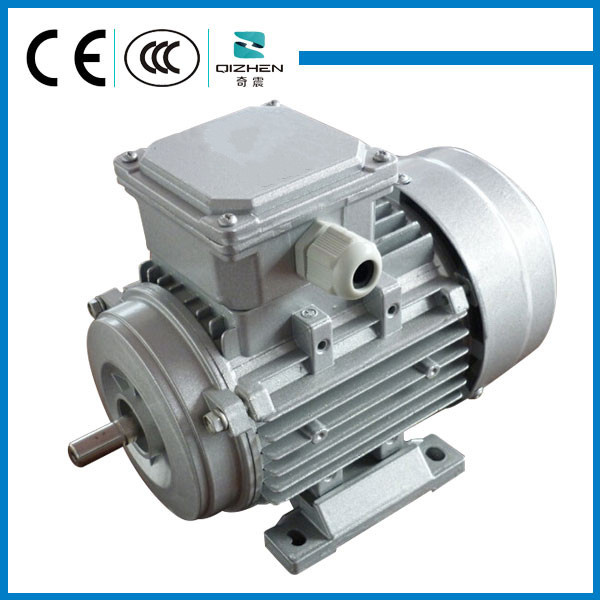

YS Micro Three Phase AC Motor
| Price: |
US $ 55/Piece |
| Trade Terms: |
FOB |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
YS63~YS90 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Frame: |
63~90 |
| Housing: |
Cast Iron / Aluminium |
| Protection Class: |
IP54 or IP55 |
| Insulation Class: |
F |
| Core Wire: |
Copper Wire |
| Poles: |
2, 4, 6 Poles |
| Duty: |
S1 |
| Mounting: |
B3, B5, B35, B14, B34 |
| Application: |
Power Tools |
| Operating Speed: |
Low Speed |
| Number Of Stator: |
Three-Phase |
| Species: |
YS Series Three-Phase |
| Rotor Structure: |
Winding Type |
| Casing Protection: |
Protection Type |
| Starting Mode: |
Direct on-line Starting |
| Brand: |
Qizhen |
Product Description
YS series three phase asynchronous motor is suitable for small machine tool, pump, air compressor and other equipment of three phase power supply.The series motor features by higher output power than single phase asynchronous motor, and has larger output of the same shape.Protection Class: IP44/IP54/IP55 Cooling Type: IC0141 Insulation Class:B or F Operation Type: S1 Rated Voltage: 380V Rated Frequency: 50Hz or 60HzShell material: casting iron and aluminium alloy| Type | Power | Speed (r/min) | Current (A) | Power Factor (cos¢) | Eff (%) | | |
| Hp | kW |
| YS6312 | 1/4 | 0.18 | 2790 | 0.53 | 0.75 | 69 | 2.3 | 2.4 |
| YS6322 | 1/3 | 0.25 | 2790 | 0.68 | 0.78 | 72 | 2.3 | 2.4 |
| YS7112 | 1/2 | 0.37 | 2800 | 0.96 | 0.80 | 73.5 | 2.3 | 2.4 |
| YS7122 | 3/4 | 0.55 | 2800 | 1.35 | 0.82 | 75.5 | 2.3 | 2.4 |
| YS8012 | 1 | 0.75 | 2800 | 1.75 | 0.85 | 76.5 | 2.2 | 2.4 |
| YS8022 | 1.5 | 1.1 | 2800 | 2.56 | 0.85 | 77 | 2.2 | 2.4 |
| YS90S-2 | 2 | 1.5 | 2800 | 3.44 | 0.85 | 78 | 2.2 | 2.4 |
| YS90L-2 | 3 | 2.2 | 2800 | 4.83 | 0.86 | 80.5 | 2.0 | 2.4 |
| YS6314 | 1/6 | 0.12 | 1390 | 0.48 | 0.63 | 60 | 2.4 | 2.4 |
| YS6324 | 1/4 | 0.18 | 1390 | 0.65 | 0.66 | 64 | 2.4 | 2.4 |
| YS7114 | 1/3 | 0.25 | 1390 | 0.84 | 0.68 | 67 | 2.4 | 2.4 |
| YS7124 | 1/2 | 0.37 | 1400 | 1.12 | 0.72 | 69.5 | 2.4 | 2.4 |
| YS8014 | 3/4 | 0.55 | 1400 | 1.56 | 0.73 | 73.5 | 2.4 | 2.4 |
| YS8024 | 1 | 0.75 | 1400 | 2.01 | 0.75 | 75.5 | 2.3 | 2.4 |
| YS90S-4 | 1.5 | 1.1 | 1400 | 2.75 | 0.78 | 78 | 2.3 | 2.4 |
| YS90L-4 | 2 | 1.5 | 1400 | 3.65 | 0.79 | 79 | 2.3 | 2.4 |
| YL,YC,YY,YU,YS Overall & Installation Dimensions |
Frame size | Mounting Dimensions(mm) | Overall Dinensions(mm) |
| A | B | C | D | E | F | G | H | K | M | N | P | R | S | T | AB | AC | AD | HD | L |
| 63 | 100 | 80 | 40 | 11 | 23 | 4 | 8.5 | 63 | ¢7 | 115 | 95 | 140 | 0 | 10 | 3.0 | 130 | 130 | 125 | 165 | 230 |
| 71 | 112 | 90 | 45 | 14 | 30 | 5 | 11 | 71 | ¢7 | 130 | 110 | 160 | 0 | 10 | 3.5 | 145 | 145 | 140 | 180 | 255 |
| 80 | 125 | 100 | 50 | 19 | 40 | 6 | 15.5 | 80 | ¢10 | 165 | 130 | 200 | 0 | 12 | 3.5 | 160 | 165 | 150 | 200 | 295 |
| 90S | 140 | 100 | 56 | 24 | 50 | 8 | 20 | 90 | ¢10 | 165 | 130 | 200 | 0 | 12 | 3.5 | 180 | 185 | 160 | 240 | 370 |
| 90L | 140 | 125 | 56 | 24 | 50 | 8 | 20 | 90 | ¢10 | 165 | 130 | 200 | 0 | 12 | 3.5 | 180 | 185 | 160 | 240 | 400 |
| 100L | 160 | 140 | 63 | 28 | 60 | 8 | 24 | 100 | ¢12 | 215 | 180 | 250 | 0 | 15 | 4.0 | 205 | 220 | 180 | 260 | 430 |
| 112M | 190 | 140 | 70 | 28 | 60 | 8 | 24 | 112 | ¢12 | 215 | 180 | 250 | 0 | 15 | 4.0 | 245 | 250 | 190 | 300 | 455 |
| 132S | 216 | 140 | 89 | 38 | 80 | 10 | 33 | 132 | ¢12 | 265 | 230 | 300 | 0 | 15 | 4.0 | 280 | 290 | 210 | 350 | 525 |
| 132M | 216 | 178 | 89 | 38 | 80 | 10 | 33 | 132 | ¢12 | 265 | 230 | 300 | 0 | 15 | 4.0 | 280 | 290 | 210 | 350 | 560 |
Established in 2014, Taizhou Qizhen Mechanical and Electrical Technology Co., Ltd is a new well-known professional electric motor and pump manufacturer in Zhejiang, which is an enterprise integrating R&D, production, import and export. Our products are widely exported to overy fifty countries and regions such as east Europe, South America, Southeast Asia and Middle East, Africa; Meanwhile, we have kept well touch with dozens of trade companies at home and abroad for cooperation relationship.
Our main products include electric motor type with Y series, Y2 series and YS series of three-Phase asynchronous electric motors, YC series, YL series, JY Series and YY series of single-Phase electric motors, and other derived electric motors, such as YCT series electromagnectrism speed regualating motors, YEJ series electromagnetic-brake motor, YVF2 variable-frequency speed regualating motor, YB2 explosion proof electric motor, YD Double-speed electric motor, YSF/YT series energy-saving induction motor and so on.
With own R&D center, our company has rich technology power, advanced developing measures, highly effective production facilities, overall test conditions and complete modern management system. In the meantime, we have thoroughly carries out IEC standard.
In the aspect of enterprise spirit, our company has advocated management philosophy "Realistic, concrete, effective, innovative ", and always insisted on the principle "People are the basis, Quality is the key to win ". Believing in "First-class enterprise image, design idea and product quality ", our company will pursue greater development for a more brillian future. Also, we are willing to strengthen cooperation and interchange with all customers and be always the creator of every customer, Value with the aim of "Meet the demands of the consumer and go beyond the expection of the customers
