| Prod Model: |
YC90-2 |
| Housing: |
Cast Lron Housing |
| Voltage: |
220V/380 |
| Frequency: |
50Hz/60Hz |
| Mounting: |
B3, B5, B35 |
| Insulation Class: |
F |
| Core Wire: |
Copper |
| Application: |
Power Tools |
| Operating Speed: |
High Speed |
| Number Of Stator: |
Single-Phase |
| Rotor Structure: |
Winding Type |
| Casing Protection: |
Closed Type |
| Starting Mode: |
y-δ Starting |
| Brand: |
Bro |
| Species: |
Single Phase Motor |
| Certification: |
Ce |
Product Description

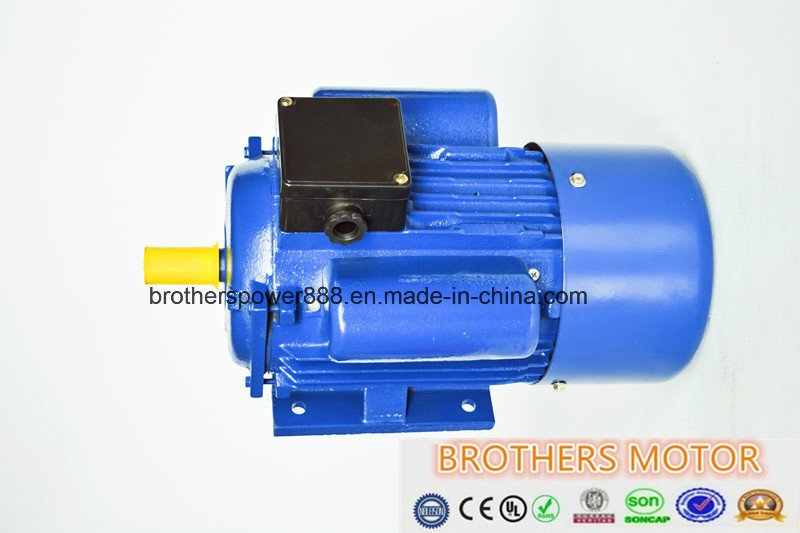

CE Approved Single Phase Induction YL YY MY ML YC electric motor
Packaging & Delivery Packaging Details
Standard export package Delivery Time
Deliver on time by Production cycle
PRODUCT INFORMATION :
- YC series single phase induction motor is suitable for driving small-size turning machine, especially for household and workshop where only need single-phase power supply.
- This series motor is designed with advanced technique and made of fine materials.
- It also has many good characteristics such as lower noise, lower temperature raising and starting current, higher starting torque, reliable operation, easy maintenance and pretty appearance.
- They all meet the relative rules of IEC standard.
- YC series motor is similar to YC series in appearance. Comparing with the same output YC series motors.
- YC series temperature rising reduce 8.74k on average, efficiency improve 4.21 percent, power factor raise 0.16.
OPERATING CONDITIONS:
| Ambient temperature | -15°c to 40 °c |
| Altitude | ≤1000m |
| Rated voltage | 3 phase: 380V, 400V, 415V, 220V, 230V, 240V, etc 1 phase: 110V, 115V, 120V, 220V, 230V, 140V, etc |
| Rated frequency | 50HZ, 60HZ, 50HZ/60HZ |
| Duty | Continuous(S1) |
| Insulation class | Class B, Class F |
| Protection class | IP44, IP54, IP55 |
| Cooling method | IC0141 |
TECHNICAL DATA:
| Type | Output | Current
(A) | Power Factor | Eff
(%) | Speed
(r/min) | Tst/Tn | Ist/IN | Tmax/Tn |
| KW | PH |
| YCL90S-2 | 1.1 | 1.5 | 7.2 | 0.95 | 73.2 | 2880 | 2.8 | 6.0 | 1.8 |
| YCL90L-2 | 1.5 | 2 | 8.9 | 0.97 | 76 | 2900 | 2.8 | 7.0 | 1.8 |
| YCL100L-2 | 2.2 | 3 | 13.2 | 0.96 | 78.8 | 2900 | 3.0 | 6.5 | 1.8 |
| YCL90S-4 | 0.75 | 1 | 5.0 | 0.93 | 73.3 | 1450 | 2.8 | 6.5 | 1.8 |
| YCL90L-4 | 1.1 | 1.5 | 7.8 | 0.90 | 75 | 1450 | 2.5 | 6.0 | 1.8 |
| YCL100L-4 | 1.5 | 2 | 9.3 | 0.92 | 79.4 | 1450 | 2.8 | 7.0 | 1.8 |
| YCL112M-4 | 2.2 | 3 | 13.6 | 0.90 | 81.6 | 1450 | 2.3 | 6.5 | 1.8 |
| YCL132S1-4 | 3.0 | 4 | 18.2 | 0.90 | 83.2 | 1450 | 2.1 | 6.5 | 1.8 |
| YCL132S2-4 | 3.7 | 5 | 22.0 | 0.90 | 84.9 | 1450 | 2.1 | 6.5 | 1.8 |
| YCL132M1-4 | 5.5 | 7.5 | 32.5 | 0.90 | 85.0 | 1460 | 2.0 | 6.5 | 1.8 |
| YCL132M2-4 | 7.5 | 10 | 40 | 0.90 | 85.5 | 1460 | 2.0 | 6.5 | 1.8 |
