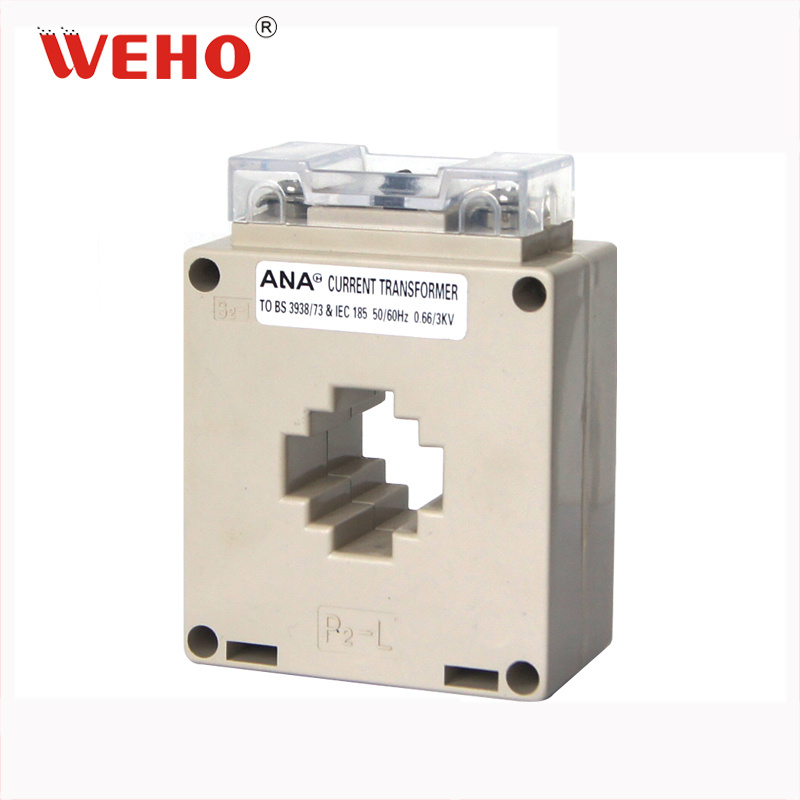

Yueqing Factory Outlet Msq-30 Current Transfomer

Name: Yueqing Factory Outlet Msq-30 Current Transfomer
Brand: all-electronics-online.com
SKU: 834657715
Availability: InStock
Rating: 5 (123 reviews)

Price:	US $ 2.56-4.86/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MSQ-30
Coil Number:	Autotransformer
Coil Structure:	Toroidal
Rated Voltage:	600V(See Table)
Class Of Accuracy:	1.0(See Table)
Security Factor:	Fs5
Plastic Case:	ABS
Color:	White Brown
Working Temperature:	-20°c~ +45°c
Application:	Lighting
Type:	Current Transformer
Phase:	Single

Product Description

CURRENT TRANSFORMERS

Specifications:

siemens current transformer

1 CE approved.

2.OEM/ODM available

3.Color customized

4.2 years warranty

Technical data:

1,The Current Transformers are made according to IEC_185 standard.

2,Class Of Accuracy :1.0(see table)

3,Rated Voltage :600V(see table)

4,Rated Sec.Current 5A(or 1A on request)

5,Security Factor:FS5

6,Working Temperature Rang:-20°C~ +45°C.

7,ABS plastic case,totally enclosed,built-in cover,and several ampere outputs at several ampere outputs at secondary side iron

Plate for fixing metal housing-2 pieces-1,iron bar.

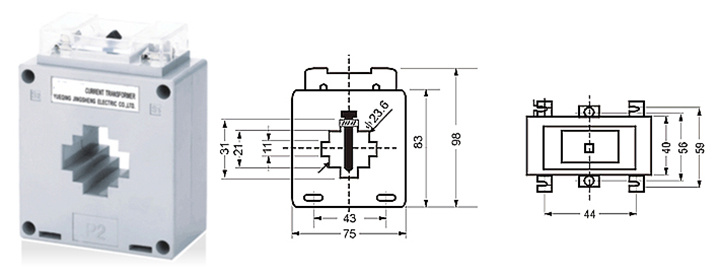

Model	A	B	C	D	E	F	G	H
MSQ-30(small)	60	36	67	17	60	31	10	59
MSQ-30	75	43	82	17	60	31	10	71
MSQ-40	75	43	82	17	60	31	10	71
MSQ-60	101	44	111	17	60	31	10	71
MSQ-100	145	45	139	17	60	31	10	72
MSQ-130	196	46	210	17	60	34	11	72

Model	Rated Current(A) Primary/Secondary	Busbar Hole Dimension	Rated Burden(VA)	Accuracy Class	Rated Voltage(V)	Rated Frequency(Hz)
MSQ-30	30/5A-300/5A	30×10mm	1.5-2.5	3.0~0.5	600	50/60
MSQ-40	150/5A-800/5A	40×10mm	5-10	1.0~0.5	600	50/60
MSQ-60	400/5A-1200/5A	60×20mm	5-10	1.0~0.5	600	50/60
MSQ-100	800/5A-3000/5A	100×10mm	15	1.0~0.5	600	50/60
MSQ-130	1500/5A-5500/5A	130×10mm	15	1.0~0.5	600	50/60

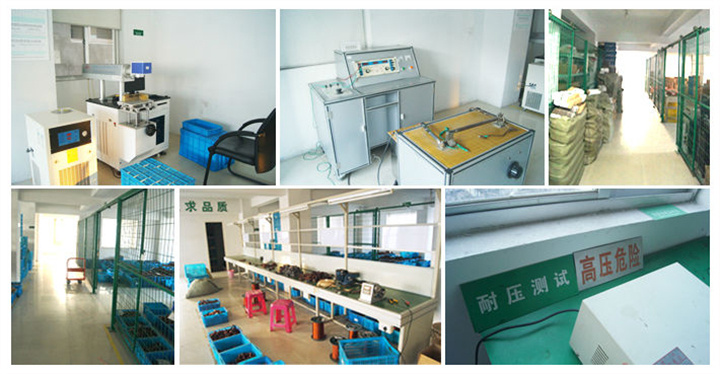

Workshop:

Zhejiang Weihao electronic Co., Ltd is located in "Chinese Electrical Capital"-Liushi Town, it is a high-tech enterprise, specializing in research, development and production of AC/DC DC/DC series switching power supply, adapter and AC stabilizer, frequency inverter, etc.

Our products are widely used in LED system, postal service, comunication system, power system, instrument and meter equipements, semiconductor refrigeration and heating system, medical equipments, monitorand automatic control system and railway system. etc. Our design is on basis of UL1012 TUVE60950, EMC LVD. VL1950, IEC950 and so on. The first-class imported components, advanced workmanshipand the consummation instruments achieved high quality products. All of them have past 100% high-temperature and full-load testing, the qualified rate can come to 99% and 3% repair rate.

We sticks to the principle of "Quality first Technology Advanced and providing ssatisfactory product and service " we also draw high attentionto demand of customers and provide high quality products.

The products are sold to oversesas market like America, Austrilia, Europe and MID-east etc.

Warmly welcome both of domestic and overseas customers to visit, negotiate and cooperate with us
