Yumo Lm3106 24 Points PLC Intelligent Programmable Logic Controller

Name: Yumo Lm3106 24 Points PLC Intelligent Programmable Logic Controller
Brand: all-electronics-online.com
SKU: 830217285
Availability: InStock
Rating: 4.7 (145 reviews)

Price:	US $ 117-140/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	LM3106
Part No.:	Lm3106
Local I/O:	14 Channels DC24V Di, 10 Channels Transistor Do
Expandable I/O:	4 Modules
High-Speed Counter:	Monophase Counter: 3 Points, 100kHz Biphase Counte
Pulse Output:	2point 20kHz
Pulse Catch:	3 Points
Interrupt Input:	3 Points
Real-Time Clock:	Built-in
Function Blocks:	Over 70
Output Voltage:	24VDC
Task:	Program
Structure:	Combination
Signal:	Continuous
Function:	Automatic Control
Certification:	CE
Condition:	New

Product Description

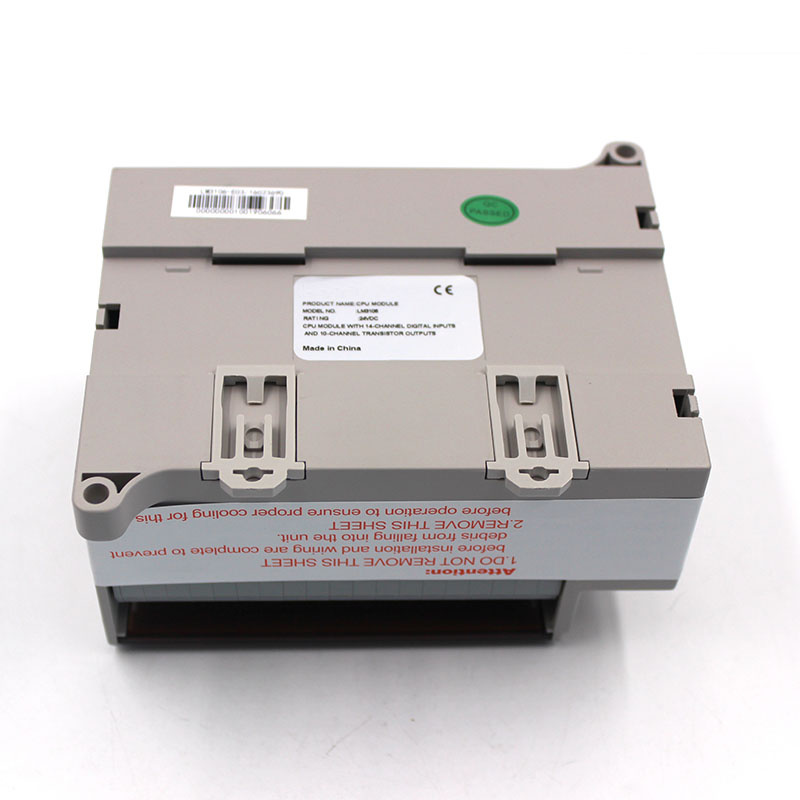

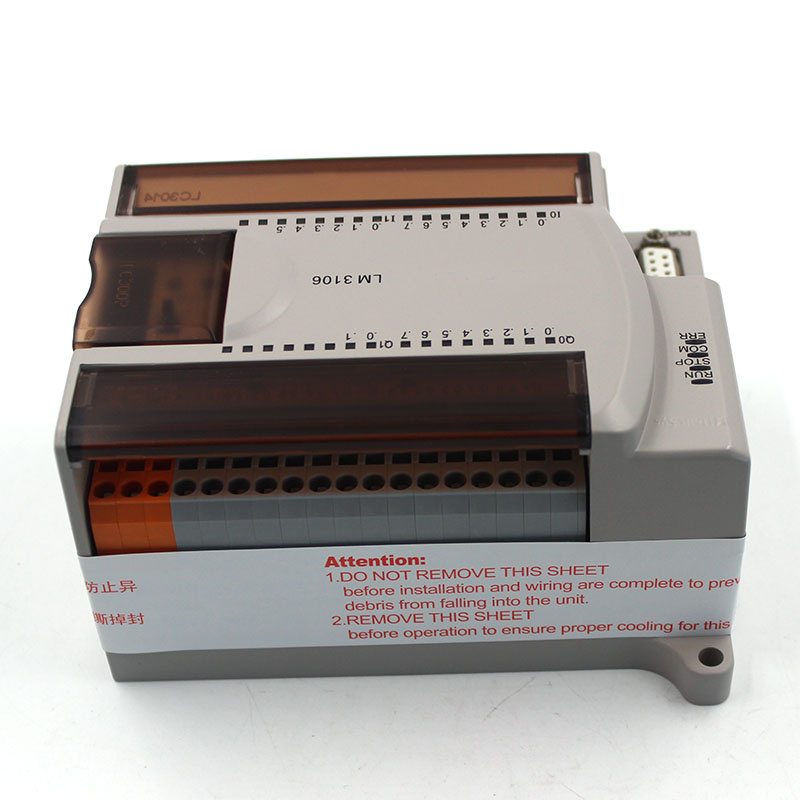

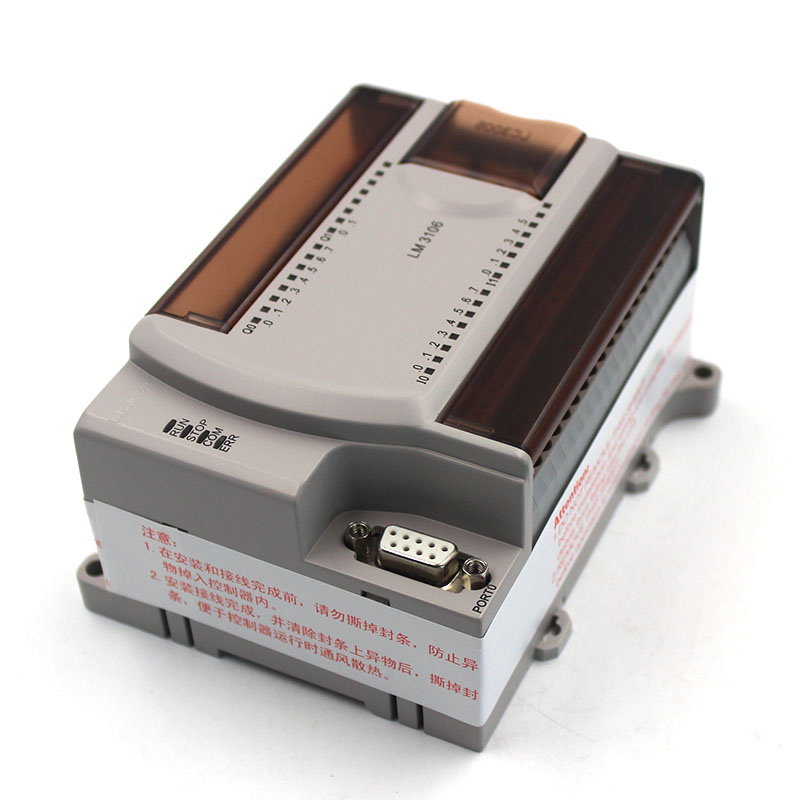

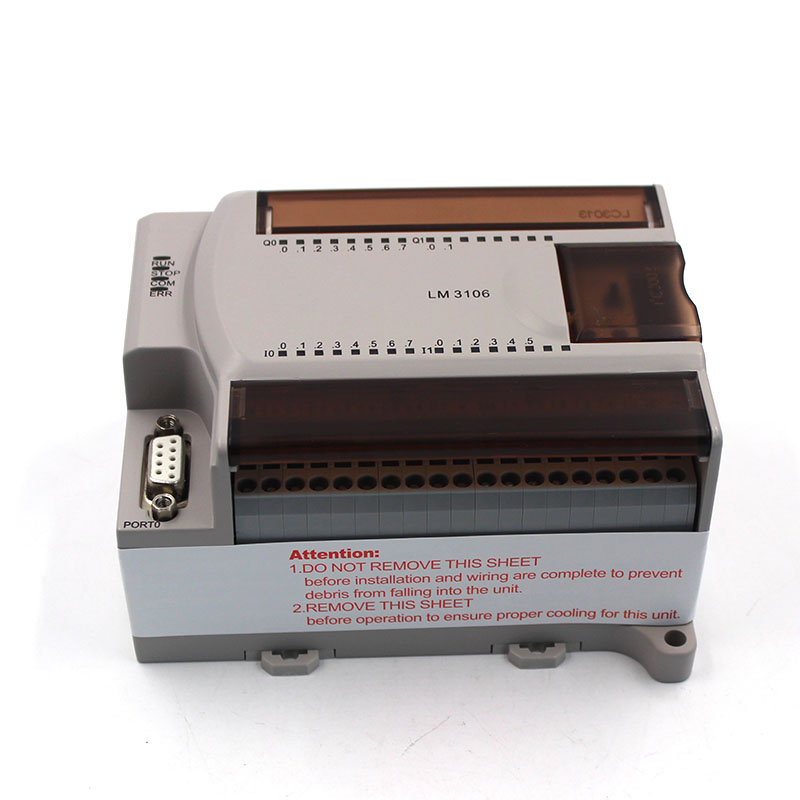

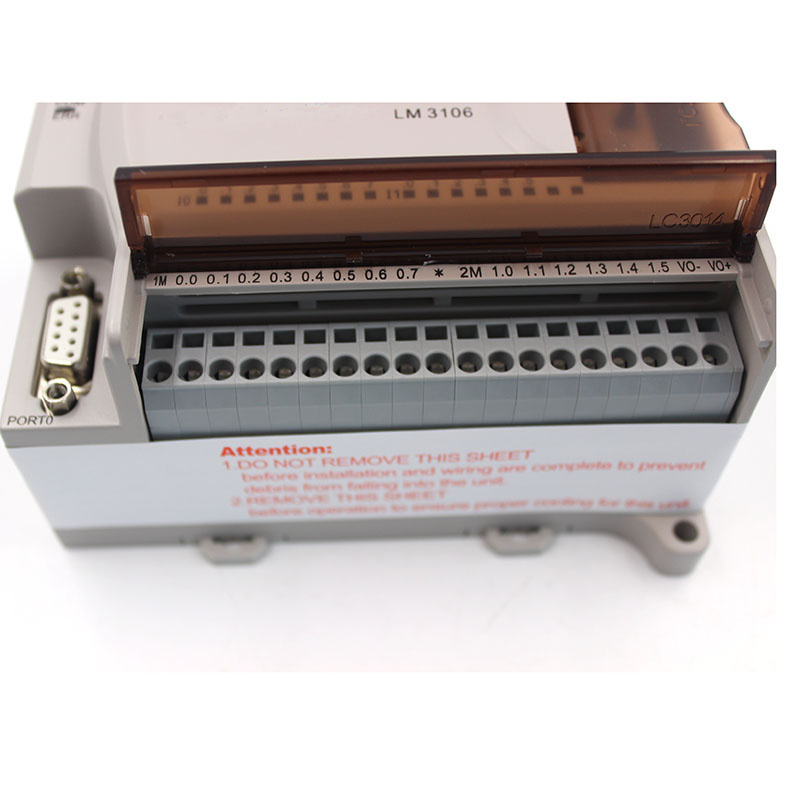

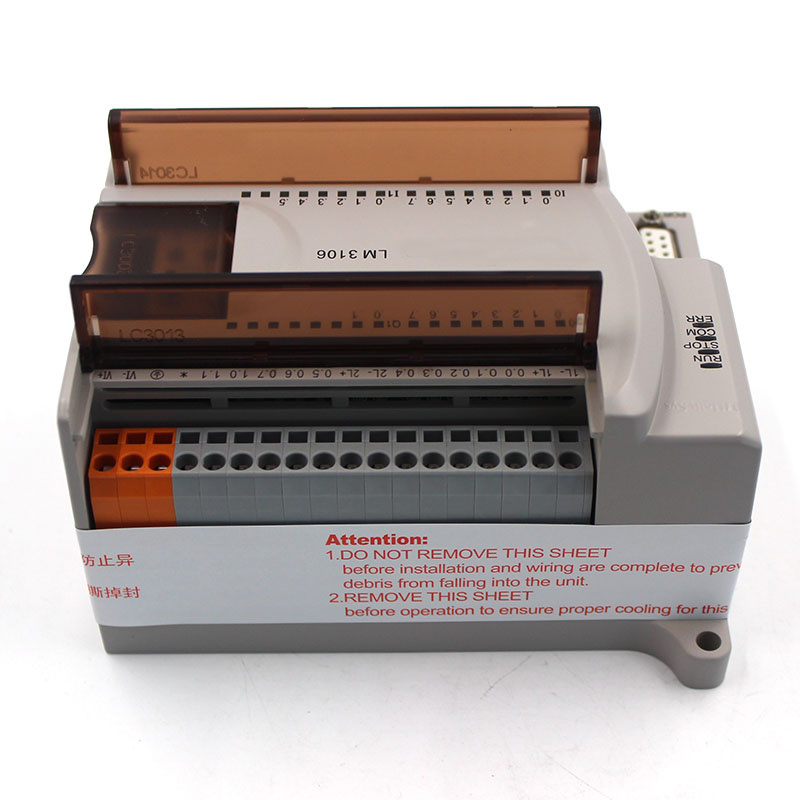

YUMO LM3106 24 points plc intelligent programmable logic controller

Product data:

Local I/O		14 Channels DC24V DI, 10 Channels Transistor DO
	Expandable I/O		4 modules
	High-speed counter		Monophase counter: 3 points, 100KHz Biphase counter: 2 points, 100KHz
	Pulse output		2point 20KHz
	Pulse catch		3 points
	Interrupt input		3 points
	Analog potentiometer		2, value setting range 0-255
	User program memory capacity		28K bytes/120K bytes
	Retain area		512 bytes/6K bytes
	Input data memory		512 bytes
	Output data memory		512 bytes
	Mid-variables memory		8K bytes
	Global memory		24K bytes
	Password		Yes
	Real-time clock		Built-in
	Timer		No limit (1ms as minimum unit)
	Counter		No limit (Maximum counting range: 16 bit)
	Basic instructions		283
	Function blocks		Over 70
	Operation speed		0.65μs (Basic instruction)
	Power supply		24V DC
	Allowed range		21V DC-27V DC
	Current consumption (MAX)		1300mA
	Output voltage		24V DC
	Allowed range		22.8V DC-25.2V DC
Current output		+24VDC (To expansion bus)		300mA
		+24V DC (To the outside)		300mA
		+5V DC (To expansion bus)		800mA
Short circuit protection				400mA, 24VDC output
Input type				Sink/Source
Input voltage rated value				24V DC
Allowed range				0V DC-30V DC
Logic 1 signal				15-30V DC
Logic 0 signal				0-5V DC
Input delay time				<0.6ms (Rated input voltage)
Isolation mode				Photocoupler isolation
Isolation group				2 groups
Maximum Isolation Voltage				1500VAC
Output type				Transistor
Output voltage				24V DC
Allowed range				20.4V DC-28.8V DC
Transistor conduction voltage drop				<0.5V (Output logic "1", current 1A)
Contact impedance				<0.2Ω
Logic "1" single point output maximum current				1A
Logic "0" maximum leaking current				1mA
Common end output current total				<4A
Isolation mode				Photocoupler isolation
Isolation group				2 groups
Maximum Isolation Voltage				1500VAC
Response time (status "0" to "1" or "1" to "0")				Common output <1ms High-speed pulse output<10us
