Yvf Series Variable Frequency/Speed Electric AC Induction Motor
| Price: |
US $ 58-6000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
YVF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Squirrel Cage Motor Variable Frequency Induction |
| Protect Feature: |
Enclosed |
| Structure: |
Asynchronous Motor |
| Phase: |
Three Phase |
| Color: |
Grey or Other |
| Shape: |
Linear |
| Scope Of The Center Height: |
H63~H355 |
| Work Mode: |
S1 |
| Protection Class: |
IP55 |
| Insulation Class: |
F |
| Function: |
Driving |
| Number Of Stator: |
Three-Phase |
| Number Of Poles: |
2, 4, 6, 8, 10, 12 |
| Brand: |
Pinnxun |
| Certification: |
CE, ISO, CCC |
Product Description

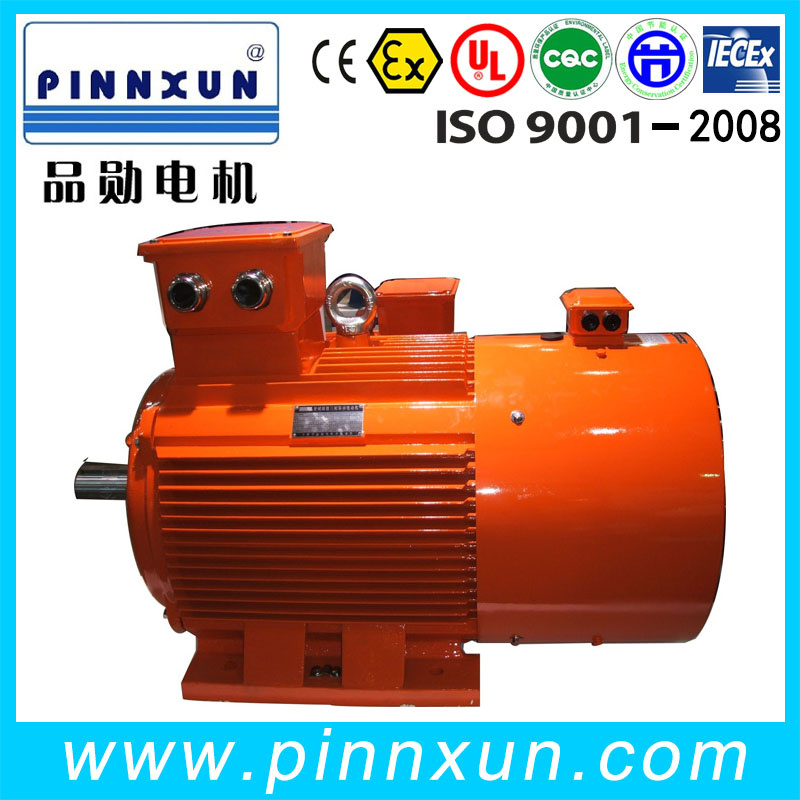

YVF Series Variable Frequency Electric ac induction Motor
YVF series variable frequency motor is a kind of speed regulation motors working with frequency converter.
YVF series variable frequency motor are fitted with ventilation fan which provide better cooling effect to ensure motors running at various speed. To be convenient for users, dimensions and rated output of YVF series motors are same as those of Y series motors, also in conformity with IEC60072-1:1991.
YVF series variable frequency motor
YVF series variable frequency motor are widely used for driven equipment in need of speed-regulation in light industries, metallurgy industries,textile industries, printing and dyeing industries, chemical industries, transportation and machine tool industries, etc. It is one of the ideal power source of velocity modulation.
Ambient Temperature: -15°C~40°C
Power:0.37KW-200KW
Altitude: not exceed 1000 Meter
Rated Voltage: 380V or any voltage between 220-760V
Rated Frequency: 50Hz/60Hz
Protection Class: IP44, IP54, IP55
Insulation Class: B/F
Cooling Method: IC416
Working Duty: S1(Continuous)
Humidity: Lower than 90%
Connection: Star-connection for up to 3kW; Delta-connection for 4kW and above
Company Information
Packing & ShippingOur Servies
WE ARE READY
Q: Do you offer OEM service?
A: Yes.
Q: What is your payment term?
A: 30% T/T in advance, 70% before delivery. Or irrevocable L/C.
Q: What is your lead time?
A: About 10-45 days after receiving deposit or original L/C.
Q: What certifiicate do you have?
A: We have CE, ISO,CCC and so on.
WHY CHOOSE US

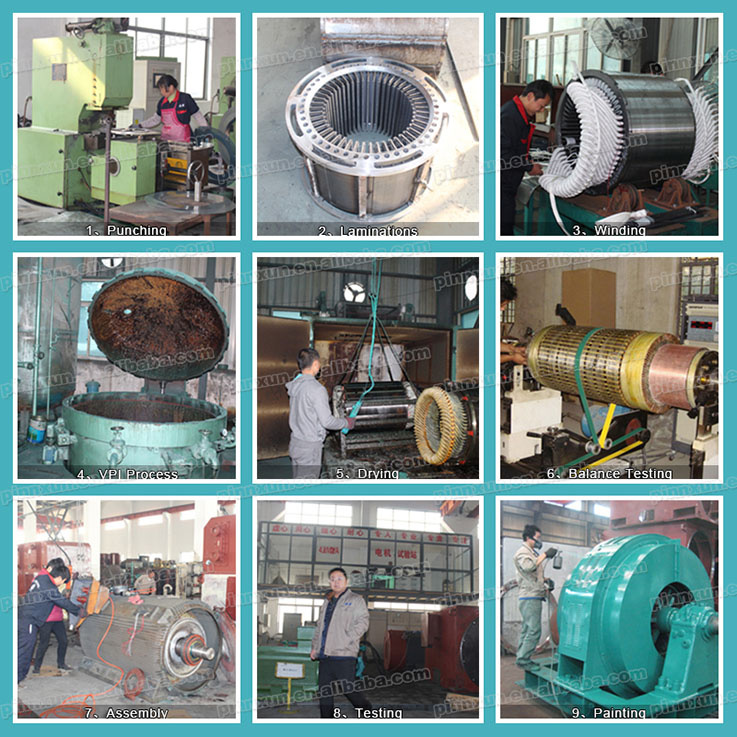

WHAT WE DO AT PINNXUN
- Stamping of lamination
- Rotor die-casting
- Winding and inserting -both manual and semi-automatically
- Vacuum varnishing
- Machining shaft, housing, end shields, etc
- Rotor balancing
- Painting - both wet paint and powder coating
- Motor assembly
- Packing
- Inspecting spare parts every processing
- 100% test after each process and final test before packing.
WHAT PINNXUN CAN DO FOR CUSTOMERS
- PINNXUN supplies standard products to customers.
- PINNXUN supplies standard products under customers' brands and packaging, etc
- PINNXUN R&D department develops any new products together with the customers.
|
|
(kW) |
(A) |
(N.m) |
(Hz) |
(Hz) |
-------- |
-------- |
-------- |
-------- |
|
YVF280M1-4 |
0.55 |
1.5 |
3.5 |
5-50 |
50-100 |
2 |
10 |
2.8 |
1.7 |
|
YVF280M2-4 |
0.75 |
2 |
4.7 |
1.6 |
|
YVF290S-4 |
1.1 |
2.8 |
7 |
|
YVF290L-4 |
1.5 |
3.7 |
9.5 |
|
YVF2100L1-4 |
2.2 |
5.1 |
14 |
1.5 |
|
YVF2100L2-4 |
3 |
6.8 |
19 |
|
YVF2112M-4 |
4 |
8.7 |
25.4 |
|
YVF2132S-4 |
5.5 |
11.4 |
35 |
1.4 |
|
YVF2132M-4 |
7.5 |
15.3 |
47.7 |
|
YVF2160M-4 |
11 |
22.1 |
70 |
|
YVF2160L-4 |
15 |
30.1 |
95.5 |
|
YVF2180M-4 |
18.5 |
35.4 |
117.1 |
1.2 |
|
YVF2180L-4 |
22 |
41.6 |
140.9 |
|
YVF2200L-4 |
30 |
55.9 |
190.9 |
|
YVF2225S-4 |
37 |
68.2 |
235.5 |
|
YVF2225M-4 |
45 |
82.5 |
286.4 |
1.1 |
|
YVF2250M-4 |
55 |
101 |
350.1 |
3-50 |
1.7 |
|
YVF2280S-4 |
75 |
132.3 |
477.1 |
1 |
|
YVF2280M-4 |
90 |
157.4 |
572.9 |
|
YVF2315S-4 |
110 |
191.4 |
700.2 |
|
YVF2315M-4 |
132 |
227.6 |
840.3 |
|
YVF2315L1-4 |
160 |
274.2 |
1018.5 |
|
YVF2315L2-4 |
200 |
341.6 |
1273.2 |
0.9 |
Shanghai Pinnxun Electric Motor Co., Ltd located in the Beautiful scenery, convenient transportation international metropolis, ----Shanghai. Is a modernized large scale enterprise for motor and control system manufacturing, R&D, sales and services. Pinnxun always take good faith, responsibility, carefulness and excellence as our management philosophy, committed to providing customers with superior quality products, perfect solutions and Advisory pre and after sales service.

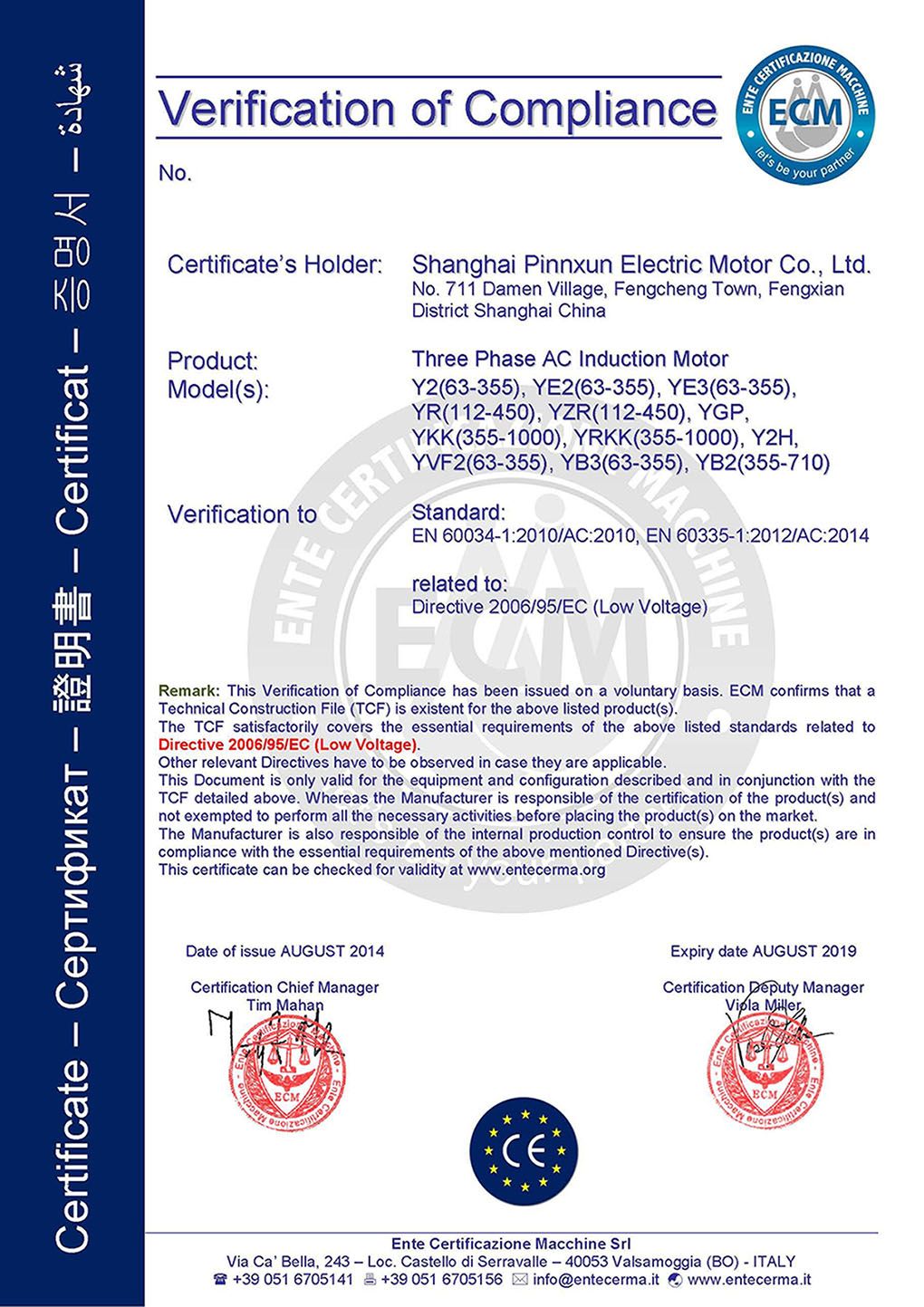

Pinnxun Motor had passed the ISO9001-2008 quality control system certificate and European Union CE certificate. Company products was designed and manufactured strictly according to IEC and DIN standards of high efficiency, energy saving, economy, environmental protection requirments, Company have sellf-support right to import and export. Motors and had widely export to more than 40 countries including Europe, Australia, Southeast Asia, Middle East, Africa and other countries and regions. Companies continue to introduce advanced production technology, while continuing to improve their management level, To set up a solid foundation for the company' S development.
Products including Low voltage three phase AC motor, high voltage motor, large size synchronous motor, Russia GOST standard motors and DC motor, They are widely use in Electricity, Coal industry, Petro industry, Mining, Metallurgy, Railway industry, Transportation, Chemical, Paper making, Printing-Dyeing, industry, Navigation, Irrigation, Military and other high-tech areas. They are designed precision, long life, low noise, stable performance, low failure rate, high technology characteristics, they had win widely praised by global user in various fields, As our company' S rapid development, we plan to establish multiple business outlets in the nation' S major industrial cities and expand our sale department around the world.
We take Integrity as our fundamental, market as the guide, brand as the honor, quality as our life, provide our clients energy saving, environmental protection, safe, efficiency and first-class products. And quality pre-sale after-sales service, focus on creating "pinnxun "brand,
We warmly welcome customer to contact and visit us, we would like to establish stable and long terms relationships to support your business for mutual benefits.
