Yvp Series Frenquency Changing and Speed Regulating Conveyor Belt Motor

Prod Model:	yvp
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	K.Lida
Type:	Asynchronous Motor
Frequency:	50/60Hz
Output Power:	0.12kw-315kw
Protect Feature:	Totally Enclosed
Phase:	Three-Phase
AC Voltage:	380V/660V or Others
Efficiency:	Ie1,Ie2
Application:	Industrial
Operating Speed:	Low Speed
Number Of Stator:	Three-Phase
Species:	YVP Series Frequency Control
Rotor Structure:	Squirrel-Cage
Casing Protection:	Protection Type

Product Description

Electric Motor; Ac Motors; Three Phase Motor; 55kw Motor; Induction Motors; Bicycle electric motor; China electric motor; Three-phase electric motor; 3 phase motor; Explosion-proof motor; General motor; Electromotor; Synchronous motors; Three phase asynchronous motor; Machine motor; Yc series; Ac geared motor; Shutter motor; Electric gate motor; Aluminium body motor; Electric motor repair; Mini motor; Aluminium motor; Induction electric motor; Geared motor; Spin motor; Washing motor; Brake motors; Electric motorcycle; Step motor; Power motor; Y series motor; High voltage motor; Electric alternator; Torque motor; Brushed motor; Brush motor; Electric brushless motor; Starting motor; Air motor; Series motor; Motor manufacturer; Bicycle motor; Micro gear motor; Capacitor start; Dc geared motor; Yc motor, yb2 motor, single phase motor; Three phase motor;
IE2 ie3 standard motor; Gost anp standard motor; Nema motor; Adjustable-speed motor; Cooling motor

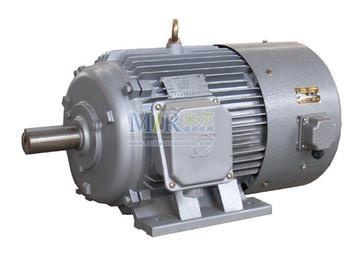

YVP series frequency variation speed regulation motors
Operating conditions:
Three-phase AC frequency variation power supply, power supply for frequency converter three-phase 380v (50HZ), output of frequency converter 5-100HZ (5-50HZ, 50-100HZ), velocity modulating below 50 HZ with constant torque and velocity modulating above 50HZ with constant output, ambient temperature between -20° C and +40° C, relative humidity lower than 85%, altitude lower than 1000 meters above sea level, IP44 (IP54) class protection, continuous S1 duty, IC416(or IC411) method of cooling.

Specialties and applications;
The rotor of the motor is specially designed to guarantee rated rotor torque output at low velocity. The independent axial flow ventilator in the cooling system ensures the cooling effect at different velocities. The motor has F class insulation, which greatly improves its operating reliability. This series has the same frame centerheigh, output, foot-mounting dimension with Y series (a bit different in shape). Its mounting arrangements are IMB3, IMB35, IMB5, IMV1, etc. It can be coordinated with the same type frequency converter at home and abroad. It possesses remarkable applicability and exchangeability, reliable operation and easy maintenance.

USE:
This series motors are widely used in light industry, chemical industry, textile, metallurgical industry and the velocity modulation of blower and pumps. It is also generally applied for automatic producing assembly lines. It is an ideal power source of velocity modulation.
