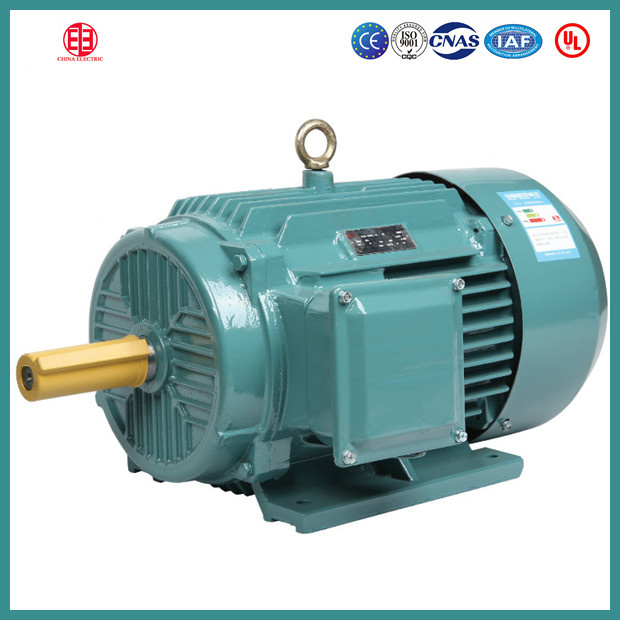

Yx3 Series Three Phase Ie2 High Efficiency AC Motors
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
YX3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling: |
IC411 (Tefc) |
| Protection Rating: |
IP54, IP55 |
| Voltage: |
380/660, 415/690, 440, 480V |
| Frequency: |
50 or 60 Hz |
| Duty: |
S1 |
| Insulation Class: |
F |
| Power: |
0.18 ~ 315kw |
| Pole: |
2, 4, 6, 8 |
| Frame Size: |
80 ~ 355 |
| Efficiency: |
Ie2 Premium Efficiency |
| Application: |
Industrial |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Three-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Closed Type |
| Starting Mode: |
Direct on-line Starting |
| Species: |
Ye3 Three Phase |
Product Description
YX3 series high efficiency ac motors
1.Brief introduction:
The YX3 series high efficiency ac motors are totally enclosed fan cooled squirrel cage motors that we manufacture with new material technology. It is new generate motor and can save energy.
YX3 induction motors have some notable advantages such as high efficiency, good starting performance, low noise, improved structure, improved cooling abilities.
2.Feature:
These series motors have many virtues, including beautiful profile, high efficiency and energy saving, class F insulated, the protective class is IP55, low noise, little vibration, running smoothly.
3. Application:
Energy saving application where continuous of frequent duty is pumps, fans, also can be used to drive petrol, chemical, medical industries and mining.
Note:If the special environment, please contact the sales department.
4.Technical parameters (for reference only):
Series Name: |
YX3 |
Certificate: | CE,ISO9001,UL,CCC,ROHS |
| Phase: | Three Phase |
| Housing | Aluminium/Cast iron |
| Voltage: | 380V-660V |
| Rate Frequency | 50HZ/60HZ |
| Current | 1.8-435.7A |
| Standard: | IE2 |
| Wire: | 100% copper |
| Frame Size: | 80-355(mm) |
| Frame material | aluminium body(56-132 frame), cast iron(71-355 frame) |
| Poles: | 2 |
| Duty: | Continous S1 |
| Insulation Class: | F |
| IP: | 55 |
| Speed | 910-2980r/min |
| Ambient Temperature | -15°C-40°C |
| Model of CONEECTION |
Y-Connection for 3 KW motor or less while DeltaConnection for 4 KW motor or more |
IM: | B3,B5,B35,B14,B34 |
| Delivery Time: | 30 Days |
| Package | ply-wooden box/pallets |
Products pictures:
China ELECTRIC, Shanghai FORTUNE ELECTRIC Co., Ltd. is located in Shanghai China. It has employees more than 1000. Its factory is about 30, 000~50, 000 square meters. It passed ISO 9001: 2008. All its products passed CE Certificate for European Union, UL and CSA for North America, GOST for Russia and SONCAP for Nigeria.
China ELECTRIC is qualified to issue Form E Certificate of Origin for ASEAN customers, China-Pakistan FTA Certificate of Origin and all Preferential Certificate of Origin for Peru, Chile, India, Bangladesh and Sri Lanka. It also permitted to issue CIQ Certificate of Pre-shipment Inspection for exporting to Africa, such as Egypt.
China ELECTRIC is specialized in manufacturing and exporting electrical machines. Its main products are as below:
GW-JJ series aluminum shell mechanical tilting coreless medium frequency induction melting furnace, induction holding furnace;
GWG-J (GW-J) series steel shell hydraulic tilting coreless medium frequency induction melting furnace, induction holding furnace;
HX series electric steel-making arc furnace;
LF series ladle refinery furnace;
Continuous casting machine, CCM;
Z2, Z4 series DC motor;
Z series medium/large size DC motor;
ZYZJ series DC motor for sugarcane mill;
ZJJ800 series DC motor for rolling mill auxiliary drive
ZFQZ series frequently starting/braking DC Motor
ZSN4 series DC Motor for driving cement rotary kiln
Y, Y2, YKK, YKS series medium/large size squirrel-cage motor;
YR, YRKK, YRKS series medium/large size wound rotor slip ring motor;
YLS, YLKK, YLKS, YLST, YLKKT, YLKST series vertical type medium/large size squirrel-cage motor;
VHS series IEC standard Vertical hollow shaft motor;
OHS series NEMA standard Vertical hollow shaft motor;
China ELECTRIC is one of the biggest manufacturer and exporter for medium frequency induction melting furnace, high voltage motor and DC motor.
Customer satisfaction is the mission of China ELECTRIC. Professional, timely and careful is the basic essence and work attitude of China ELECTRIC's every member.
Thanks to the competitiveness both in quality, service and price, China ELECTRIC's products are distributed to most of the countries and regions around the world, such as Bulgaria, Croatia, Romania, Slovenia, Turkey, Armenia, Azerbaijan, Ukraine, Kazakhstan, Uzbekistan, Russia, Iran, Dubai, Yemen, Saudi Arabia, Egypt, Nigeria, South Africa, Pakistan, Sri Lanka, Mexico, Chile, Peru, Bolivia, Uruguay, Argentina, Australia, Singapore, Malaysia, Vietnam, Thailand, Indonesia, Philippines and etc. China ELECTRIC warmly welcomes both former and new customers to further develop business relationship and partnership for prosperous futures.
