Yxz2V/N2xrgby, Power Cable, 0.6/1 Kv, Cu/XLPE/PVC/Swa/Sta/PVC (IEC 60502-1, VDE 0276)

Prod Model:	YXZ2V/N2XRGBY
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Manufacture Standard:	IEC 60502-1/VDE 0276
Rated Voltage:	0.6/1 Kv
Number Of Cores:	2-4
Size Range:	4-300 mm2
Class Of Conductor:	2
Application:	Underground
Voltage:	Low and Medium Voltage Cable
Current:	DC Cable
Insulation Material:	XLPE
Certification:	CE
Model:	Yxz2V/N2xrgby
Brand:	Boan

Product Description

YXZ2V/N2XRGBY, Power CABLE, 0.6/1 KV, CU/XLPE/PVC/SWA/STA/PVC (IEC 60502-1, VDE 0276)
XLPE INSULATED , ROUND STEEL WIRE ARMOURED , PVC SHEATHED WITH COPPER CONDUCTOR

Standarts
TS IEC 60502-1, VDE 0276

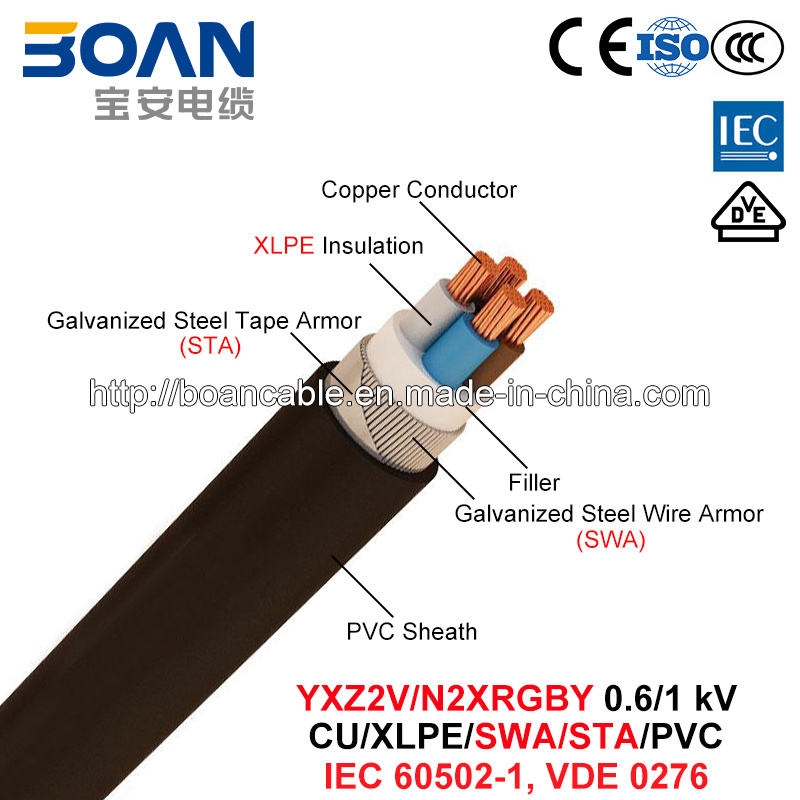

Construction
Copper Conductor, XLPE Insulation, PVC Filler,Galvanized round steel wire, Galvanized steel tape,PVC Outer Sheath

Application
These cables have a low dielectric loss, coupled with mechanical resistance are mainly used in energy net - works with sudden load change residential or industrial areas.Can be laid outdoors,undergrounds and in areas where sudden mechanical stresses are expected.

Technical Datas
Max. operating temperature 90 °C

cross-section	Overall Diameter	Net Weight	Conductor DC resistance at 20 °C	Current carrying capacity in
mm2	mm	kg/km	ohm/km	Ground(A)	Air(A)
3x1.5 re	13,5	340	12,1	30	24
3x2.5 re	14,5	400	7,41	40	32
3x4 re	15,0	480	4,61	52	42
3x6 re	16,5	570	3,08	64	53
3x10 rm	20,0	1000	1,83	86	60
3x16 rm	23,0	1400	1,15	111	80
3x25 rm	26,0	1900	0,727	143	106
3x35 rm	28,0	2100	0,524	173	131
3x50 rm	31,0	2600	0,387	205	159
3x70 rm	37,0	3800	0,268	252	202
3x95 rm	40,0	4800	0,193	303	244
3x120 rm	44,0	5800	0,153	346	282
3x150 rm	50,0	7300	0,124	390	324
3x185 rm	55,0	9000	0,0991	441	371
3x240 rm	60,0	10900	0,0754	511	436
4x1.5 re	14,0	400	12,1	30	24
4x2.5 re	15,0	450	7,41	40	32
4x4 re	16,0	550	4,61	52	42
4x6 re	18,0	750	3,08	64	53
4x10 rm	23,0	1200	1,83	86	60
4x16 rm	25,0	1500	1,15	111	80
4x25 rm	28,0	2100	0,727	143	106
4x35 rm	31,0	2600	0,524	173	131
4x50 rm	35,0	3500	0,387	205	159
4x70 rm	40,0	4600	0,268	252	202
4x95 rm	44,0	5900	0,193	303	244
4x120 rm	50,0	7600	0,153	346	282
4x150 rm	54,0	8900	0,124	390	324
4x185 rm	59,0	10900	0,0991	441	371
4x240 rm	64,0	13300	0,0754	511	436
4x300 rm	75,0	16700	0,0601	580	638
4x400 rm	83,0	22000	0,0470	663	746
5x1.5  re	15,0	420	12,1	21	18
5x2.5  re	16,0	500	7,41	28	24
5x4  re	19,0	750	4,61	42	32
5x6  re	20,0	900	3,08	54	43
5x10  rm	24,0	1450	1,83	76	63
5x16  rm	27,0	1850	1,15	101	86
5x25  rm	31,0	2500	0,727	133	120
5x35  rm	34,0	3200	0,524	163	150
5x50  rm	39,0	4200	0,387	195	185
5x70  rm	44,0	5700	0,268	240	235
5x95  rm	49,0	7600	0,193	285	280
5x120 rm	54,5	9300	0,153	330	340
5x150 rm	59,5	11000	0,124	370	387
