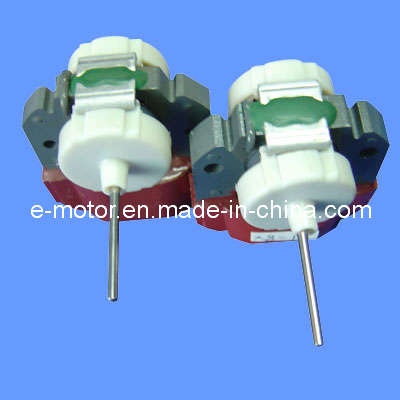

Yzf-3-8-R Micro Shaded Pole Motor

Prod Model:	1306
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	8.5W
Rotation:	Cw/Ccw
Usage:	Electricity
Number Of Stator:	Single-Phase
Certification:	Ce
Brand:	as Customer's Requests

Product Description

The goods are mainly applicable for the other household electrical appliances such as ice box, freezing cabinet, micro-wave oven, warmer and so forth., we also produce motors accordance with uesrs requirements.

Feature:
1) Input Voltage: 220V (we can make from 100-240V)
2) Rated Frequency: 50Hz (we can make 50/60Hz)
3) Input Power: 10W (we can make from 5W-110W)
4) Working Condition: Continuous
5) Number of Pole: 2 Pole 3000RPM
6) Insulation Class: B/F/H
7) Speed number: 1-5
8) Environment Temp: -20 -40 degree
9) Core lamination thickness: 11mm(we can make from 7 to 50mm)
10) Shaft diameter: φ 4 (we can make from φ 3 to φ 12)
11) Bearing: Ball bearing/sleeve bearing
12) Usage: Home appliances, such as microwave ovens, humidifiers, aquarium pumps, copy machines, vending machines, cooker hood, juicer, fan, blower, freezer, refrigerator, air-conditioner, heater, dishwasher, automatic hand dryer, hair dryer, exhauster, air purifier, etc.
13) Small, Light weight, Low loss, Long life, Good self-healing, High efficiency, High reliability, Little vibration, Low noise

We can also supply more motors with different voltages and frequencies according to client's requirement

Model	Voltage	Frequency	Current	Input power	Rotation
YZF-3-8-R	220V	50/60hz	0.085A	8.5W	CW/CCW
	110V	50/60hz	0.16A	8.5W	CW/CCW
