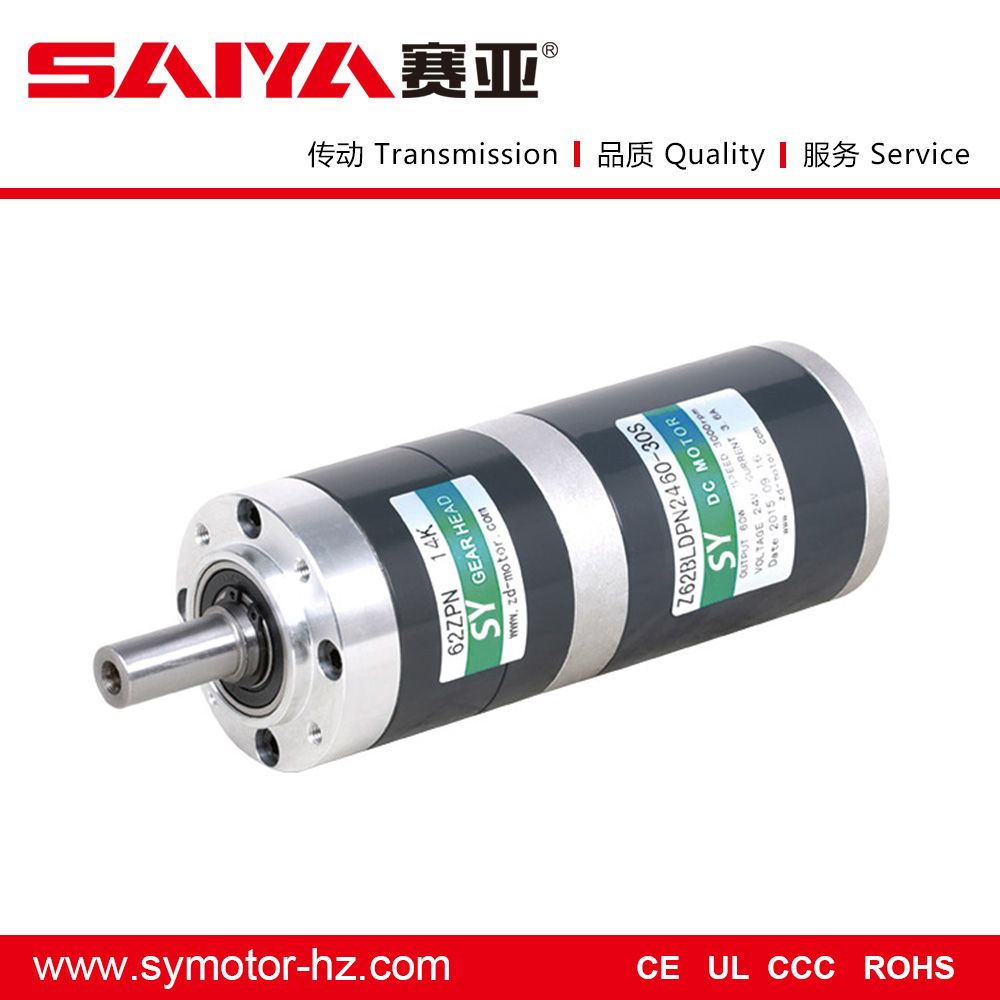

Z62bldp2460 62mm 60W Brushless DC Planetary Gear Motor
| Price: |
US $ 105.5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
Z62BLDP2460-30S/62PM8.63K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
60W |
| Voltage: |
24V |
| No-Load Speed: |
3500rpm |
| Rated Current: |
4.0A |
| Rated Speed: |
3000rpm |
| Weight: |
2.0kg |
| Application: |
Industrial |
| Operating Speed: |
Constant Speed |
| Excitation Mode: |
Shunt |
| Structure And Working Principle: |
Brushless |
| Number Of Poles: |
3 |
| Type: |
Zpn |
| Certification: |
Ce UL RoHS |
| Brand: |
Sy Motor |
Product Description
Z62BLDP2460 62mm 60W Brushless DC Planetary Gear MotorIt's only the typical data.
The gear motor can be customized if you have some special requirements such as the gear ratio, torque and shaft dimension.
The motor price is also for reference only and it will be decided by the reduction ratio and body's length.
3.If you have any questions, pls do not feel hesitate to ask us. You can send us messages, emails or give us a call.
Features:
The planetary gearbox for transmission is widely matched with DC motor and BLDC motor. It shows the characters of high torque and controlablity as well as the high lasting torque. The perfect combination fully expresses the product's smaller and high torque.
TYPES:
BLDP: Brushless DC motor matched with planetary gearbox
DP: Brush DC motor with inner brush(no brush replacement from outside), matched with planetary gearbox
PM: Tansmission planetary(metal)
PK: Tansmission planetary(plastic) | Motor type | Voltage | Power | No-load speed | No-load current | Rated speed | Rated current | Rated torque | Motor life | Motor weight |
| | V | W | RPM | A | RPM | A | N. M | H | Kg |
| Z22DP2410-60S | 24 | 10 | 6500 | 0.3 | 6000 | 0.85 | 1.6 | 1000 | 0.5 |
| Z22BLDP2410-60S | 24 | 10 | 6500 | 0.3 | 6000 | 0.9 | 1.6 | 3000 | 0.5 |
| Z32DP2415-30S | 24 | 15 | 3500 | 0.5 | 3000 | 1.2 | 47.5 | 1000 | 0.8 |
| Z32BLDP2415-30S | 24 | 15 | 3500 | 0.5 | 3000 | 1.2 | 47.5 | 2000 | 0.8 |
| Z42DP2425-30S | 24 | 25 | 3500 | 0.7 | 3000 | 1.8 | 79.6 | 1000 | 1 |
| Z42BLDP2425-30S | 24 | 25 | 3500 | 0.7 | 3000 | 1.7 | 79.6 | 3000 | 1.2 |
| Z52DP2440-30S | 24 | 40 | 3300 | 0.8 | 3000 | 2.5 | 127.3 | 2000 | 1.5 |
| Z52BLDP2440-30S | 24 | 40 | 3300 | 0.8 | 3000 | 2.4 | 127.3 | 5000 | 1.8 |
| Z62DP2460-30S | 24 | 60 | 3500 | 1 | 3000 | 4 | 0.19 | 2000 | 1.8 |
| Z62BLDP2460-30S | 24 | 60 | 3600 | 1 | 3000 | 4 | 0.19 | 5000 | 2 |
| Z62DP2490-30S | 24 | 90 | 3500 | 1 | 3000 | 5.5 | 0.29 | 2000 | 2 |
| Z62BLDP2490-30S | 24 | 90 | 3500 | 1 | 3000 | 5.5 | 0.29 | 5000 | 2.3 |
| Motor type | Gearbox type | Reduction ratio | Dimension(mm) |
| Z22DP | 22PM | 3.65-8.63 | 24 |
|
|
|
| Z22BLDP | 13-74 | 32.3 |
| 87-643 | 40.6 |
| Z32DP | 32PM | 3.65-8.63 | 28.5 |
|
| 13-74 | 38.3 |
| Z3BL2DP | 87-643 | 48.1 |
| Z42DP | 42PM | 3.65-8.63 | 38.6 |
|
| 13-74 | 56.9 |
| Z42BLDP | 87-643 | 75.2 |
| Z52DP | 52PM | 3.65-8.63 | 48.7 |
|
| 13-74 | 65.1 |
| Z52BLDP | 87-643 | 81.5 |
| Z62DP | 62PM | 3.65-8.63 | 53 |
|
| 13-74 | 71 |
| Z62BLDP | 87-643 | 89 |
The brief introduction of our company:
Our company supplys different kinds of products. High quality and reasonable price.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
To perfect our service, we provide the products with good quality at the reasonable price.
The Products Of Our Company:
Our Company Is Specialized In Gear Motors. At Present, There Are Three Kinds Of Motors In Our Company:
1) Micro Gear Motor Include Micro AC Gear Motor And Micro DC Gear Motor;
2) Small AC Gear Motor;
3) Planetary Gear Motor.
The Usages Of Our Products:
They Are Widely Used In Machine Tools, Textile Machinery, Medical Appliance, Conveying Machines, Printing Mechanism, Food Machinery, Vending Machines, Packing Machinery, And Gumming Machines. With Excellent Equipment, Advanced Procedure, Scientific Management, And Modern Test Method, We Can Provide All Customers Both At Home And Abroad With Our Top Quality Products, Favorable Prices And Sincere Service.
You Can Tell Us About Your Requirements, And We Will Help You To Find The Right Type And Model Which Is Suitable For Your Products. Or You Can Also Provide Your Products Information And We Can Help You To Choose The Right Motors For You.
We Hope That We Can Establish Long-term Business Relationships Together With You For Mutual Business Success.
Motor Voltage, Power, And Speed Will Be Customized According To Your Request Under The Allowed Circumstanced Of Adoptable Dimension
