| Prod Model: |
Z900 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Power 220V: |
0.4kw-3.7kw |
| Input Power 380V: |
0.75kw-160kw |
| Appearance: |
Compact, Small |
| Our Brand: |
Machtric |
| Certificate: |
Ce, ISO9000, ISO14001, Ohsas18000 |
| Payment Ways: |
T/T, Western Union, Money |
| Warranty: |
18 Months |
| MOQ: |
1PC |
| Application. : |
Food Machinery |
| Color: |
Black |
| Application: |
High Frequency Converter Transducer |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Current |
| Output Type: |
1/3 Phase |
| Brand: |
Machtric |
Product Description
First eyesight.
-------Advantageness.
1).Compact size with wide power range, up to 160kw is avaiable at the end of 2015
2). Both for AM & PM
3).Competitive
4).Like Delta VFD-E series
1. Detail :

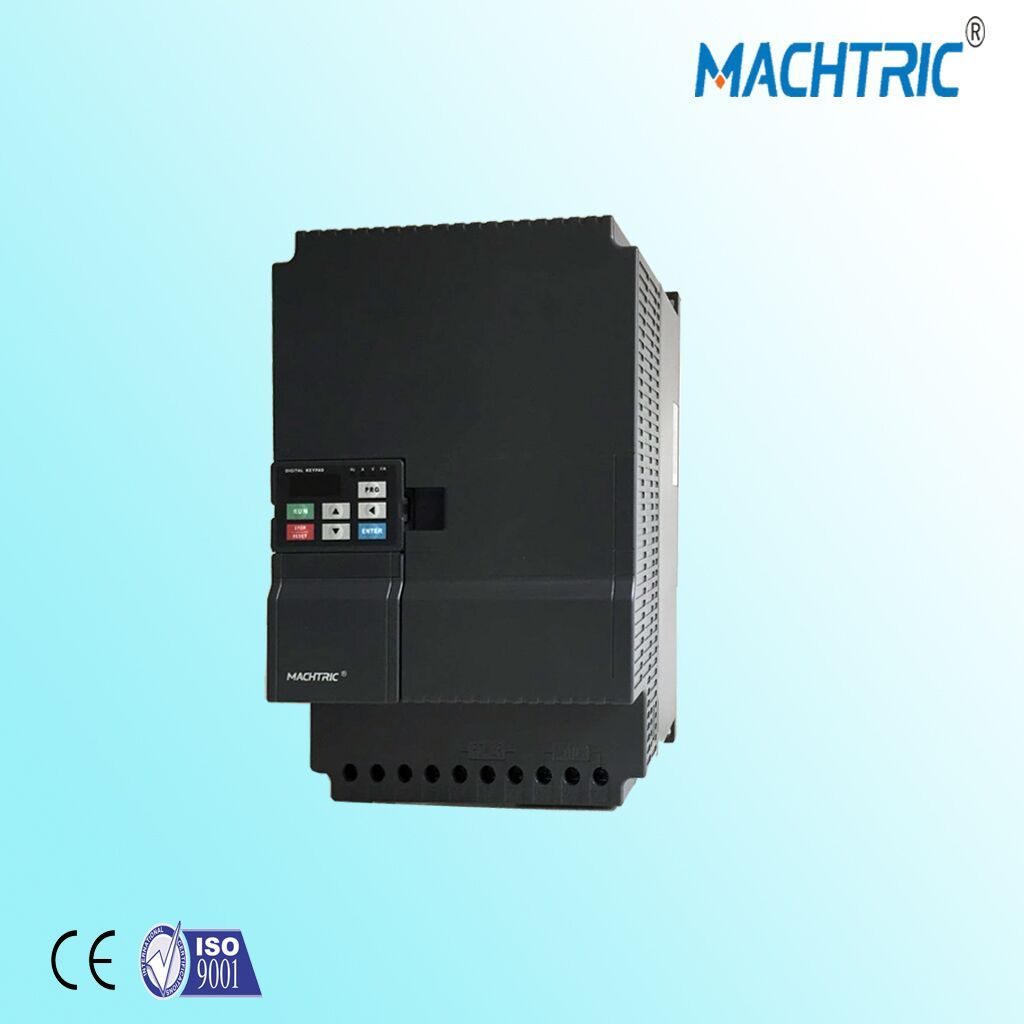

Z900E series Open loop vector control compact variable frequency inverter for general purpose
.
2. Application.
Food Machiney : Dumpling Machine ,Mixer ,Encrusting Machtine ,Pastry Machine
Woodworking Machinery : Polishing Machine ,Grinding Machine ,Engraving Machine
CNC Machines ,Treadmills ,Grinders ,Drilling Machines ,Coating Machines ,Milling Machines ,Edge banding Machines .
Small pumps ,Blower,Converying Equipments
Industrial Washing Machines ,Centrifuges ,Air Compressors ,Stone Cutting Machine
3. Production Specifications:
Items |
Z900GE |
Power
Supply |
Rated voltage, Frequency |
Single phase/Three phase 220V 50/60Hz |
Voltage Range |
220V:170V~240V 380V:330~440V |
Output |
Voltage Range |
220V:0~220V,380V:0~380V |
Frequency Range |
0.10`400.00Hz |
Control method |
Sensorless flux vector control (SFVC)
Voltage/Frequency (V/F) control |
Indication |
Operating status/Alarm definition/interactive guidance: eg , frequency setting, the output frequency/current, DC bus voltage, the temperature and so on. |
Control Specifications |
Output Frequency Range |
0.10Hz~400.00Hz |
Frequency Setting Resolution |
Digital input:0.01Hz, analog input:0.1% of maximum output frequency |
Output Frequency Accuracy |
0.01Hz |
V/F Control |
Setting V/F curve to satisfy various load requirements |
Torque Control |
Auto increase: auto raise torque by loading condition; manual increase; enable to set0.0~20.0% of raising torque |
Multifunctional lnput
Terminal |
Six multi-function input terminals, realizing functions including fifteen section speed control, program running, four-section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions |
Multifunctional Output
Terminal |
2 multi-function output terminals for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings |
Acceleration/deceleration Time Setting |
0~-999.9s acceleration/deceleration time can be set individually |
Other Functions |
PID Control |
Built-in PID control |
RS485 |
Standard RS485 communication function(MODBUS) |
Frequency Setting |
Analog input:0 to 10V,,0 to 20mA can be selected;
Dig ital input: Input using the setting dial of the operation panel or RS485 or UP/DOWN |
Multi-speed |
Six multifunction input terminals, 15section speed can be set |
Automatic voltage regulation |
Automatic voltage regulation function can be selected |
Counter |
Built -in 2group of counters |
Protection/
Warning Function |
Overload |
150%,60 second(Constant torque) |
Over Voltage |
Over voltage protection can be set |
Under Voltage |
Under voltage protection can be set |
Other Protections |
Overheat, short circuit, over current, and parameter lock and so on |
Environment |
Ambient Temperature |
-10ºC to 40ºC(non-freezing) |
Ambient Humidity |
Max.95%(non-condensing) |
Altitude |
Lower than 1000m |
Vibration |
Max. 0.5G |
Structure |
Cooling Mode |
Forced air cooling |
Protective Structure |
IP20 |
Installation |
Mode |
Wall Mounted |
FAQ
Q: What is your payment ?
A: Our payment is by T/T. Western Union. L/C and Money.
Q: Is there a discount on the price of your product?
A: It depends the quantity of order.
Q:Is same quality between the sample and big order?
A:Our products are always as good as the samples we send, I can promise there will be no debasement of quality.
Q:Is the price for FOB?
A:Yes.
Q: How much is your minimum order quantity?
A: one pcs or unit.
Q: How do we send goods to customer?
Shipping by Express: DHL, TNT, UPS, Fedex, by Sea and by Air; Or customer forwarder are accepted.
