| Prod Model: |
ZDLW 2KVA |
| Product Name: |
Zdlw 2kVA Online Interactive UPS |
| Waveform: |
Modified Sine Wave (Battery Mode) |
| DC Voltage: |
24/48/72/96VDC |
| Size: |
Plse on Specification |
| Phase: |
Single Phase |
| Type: |
Line Interactive |
| Protection: |
Short Circuit |
| Classification: |
UPS |
| Output Capacity: |
Depend on Capacity |
| Brand: |
Kemapower |
Product Description

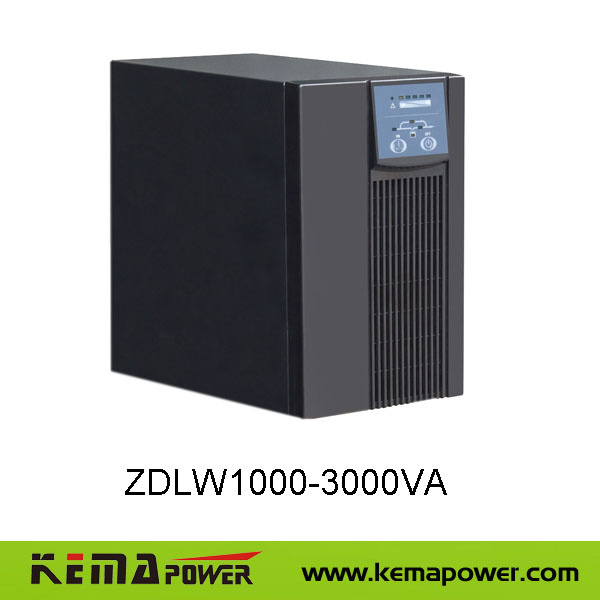

ZDLW 2KVA Online Interactive UPS
Key featues:1.Low frequency onLine interactive Pure sine wave UPS
2.1KVA,2KVA,3KVA, Capacity , PF=0.8
3.Pure sine wave output , 5-10% adjustable output precision under Line Mode
4.Hot replace battery , Battery self-check,Temperature compensation charger
5.Acquiescent RS232 communication , USB and SNMP Communication option
6.Unattended management function
7.Provide lightning, surge, and overload and short-circuit protection
8.Cold start function (DC power on)
9.Auto transfer, the typical transfer time 4Ms
10.Automatic self-detection on startup
Technical Specifications | Model | ZDLW2K(S) |
| Rated Capacity | 2000VA/1.6KW |
| Input | Voltage | 140-280cV or 70-140V ±5V |
| Frequency | 45~65Hz |
| Output | Voltage | 220V or 110V , ±5-10% adjustable under AC Mode , |
| Frequency | 50/60±0.5HZ |
| Waveform | sine wave |
| Current Crest Ratio | | 3:01 |
| Harmonic distrotion | | 3% THD( Line load ), 6% THD (non-linear load |
| Protection | Over Voltage; Low-Voltage; Short Circuit, Over Temp, Over load,Low Battery Voltage |
| DC voltage | 72VDC(Option 96V) |
| Charge Current | 1K-3K | Max 3Amp |
| 1KS-3KS | Max 8AMP(default value 3AMP) |
| Battery | Battery Type | Valve controlled maintenance free sealed lead-acid battery |
| 1K-3K | 6*12V/7AH
(Option 8*12V/7AH) |
| 1KS-3KS | 72V External
(Option 96V) |
| backup time | 1K-3K | |
| Recharge time | 1K-3K | 5-6 hours to 90% |
| Transfer Time(ms) | Typical 4MS,Max 10MS |
| Overload Protection | 120%-150% 10 seconds,150% load hold 1 second |
| Alarm | Bat mode 4 times/Mins, battery low,UPS beeping once second,Overload, battery Fault |
| Communication Interface | Acquiescent RS232 communication , USB and SNMP Communication option |
| Surge protection | yes |
| Display | LED | Line,Battery,Fault,Battery Rate,Load Rate |
| LCD | IP/OP VAC HZ, BAT VDC % , LOAD % W , BAT LINE BYPASS MODE,ºC |
| Product size | WxDxH (mm) | 355*145*225 |
| Package size | WxDxH (mm) | 595*340*490 |
| Packing Weight (1-3KK/ 1-3KS) (KG) | 34/15 |
| REMARK | ZDLW*K --- Standard Type, ZDLW*KS---- Long Time Type. |

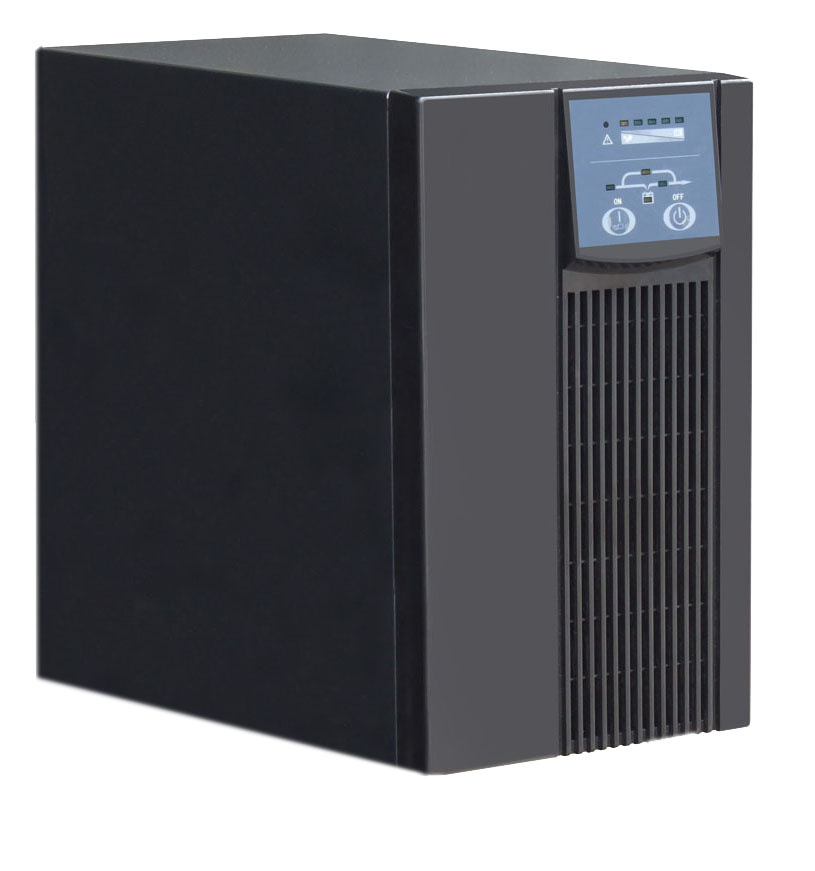

Product Show:
Trade Show:
Certification:
