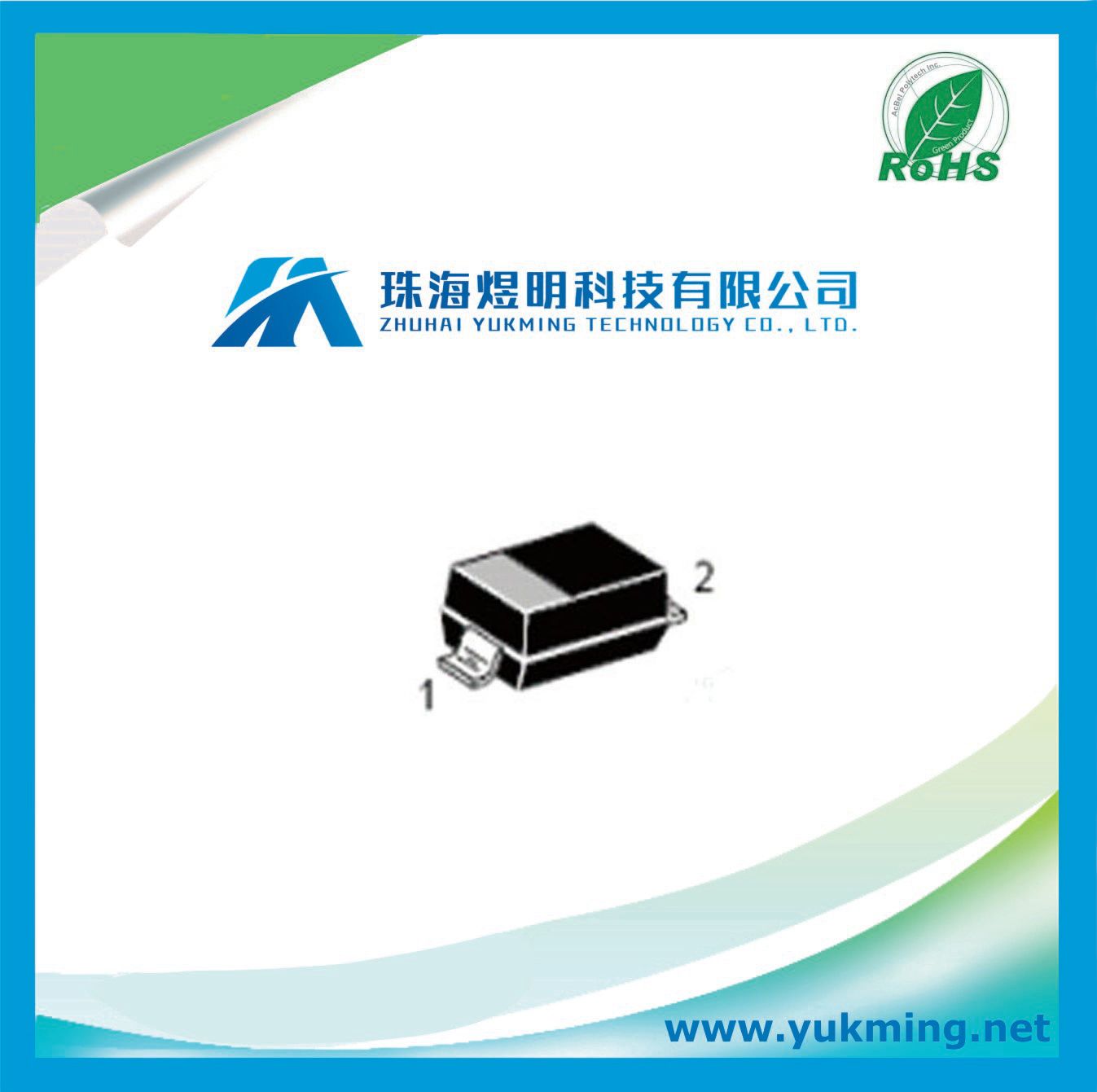

Zener Diode Bzt52c12 Surface Mount of Electronic Component

Name: Zener Diode Bzt52c12 Surface Mount of Electronic Component
Brand: all-electronics-online.com
SKU: 797147155
Availability: InStock
Rating: 4.6 (138 reviews)

Price:	US $ 0.027/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BZT52C12
Test Current (Ma):	5
Nominal Zener Voltage (V):	12
Maximum Zener Impedance (Ohm):	25
Zener Voltage Tolerance:	5%
Maximum Reverse Leakage Current (Ua):	0.1
Maximum Power Dissipation (MW):	500
Operation Temperature Range:	-65 to 150
Shape:	SOD-123

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

DESCRIPTION
This BZT52C12 zener diode from Micro Commercial Components is perfect for blocking a voltage. Its test current is 5 mA. Its maximum leakage current is 0.1 μA. Its maximum power dissipation is 500 mW. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This zener device has a nominal voltage of 12 V and a voltage tolerance of 5%. This zener diode has an operating temperature range of -65 °C to 150 °C. It is made in a single configuration.

FEATURES
· Planar die construction. Lead-free
· 500mW power dissipation on ceramic
PCB.
·General purpose, medium current.
·Ideally suited for automated assembly processes.

APPLICATIONS
·Zener diode.
·Ultra-small surface mount package.

Specifications
EU RoHS Compliant
Configuration Single
Test Current (mA) 5
Nominal Zener Voltage (V) 12
Maximum Zener Impedance (Ohm) 25
Zener Voltage Tolerance 5%
Maximum Reverse Leakage Current (uA) 0.1
Maximum Power Dissipation (mW) 500
Minimum Operating Temperature (°C) -65
Maximum Operating Temperature (°C) 150
Packaging Tape and Reel
Mounting Surface Mount

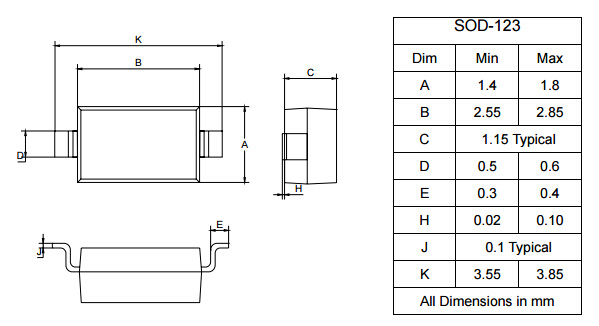

Package Height (mm) 1.2(Max)
Package Length (mm) 2.85(Max)
Package Width (mm) 1.8(Max)
PCB changed 2
Standard Package Name SOD
Supplier Package SOD-123
Pin Count 2
Lead Shape Gull-wing
