Zener Diode Fairchild of Electronic Component for PCB Assembly

Name: Zener Diode Fairchild of Electronic Component for PCB Assembly
Brand: all-electronics-online.com
SKU: 796647115
Availability: InStock
Rating: 4.4 (89 reviews)

Price:	US $ 0.027/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BZX84C6V8
Test Current (Ma):	5
Nominal Zener Voltage (V):	6.8
Maximum Zener Impedance (Ohm):	15
Zener Voltage Tolerance:	5%
Maximum Reverse Leakage Current (Ua):	2
Maximum Power Dissipation (MW):	250
Encapsulation Structure:	Sot-23

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

MANUFACTURER
Fairchild Semiconductor

PRODUCT CATEGORY
Zener

DESCRIPTION

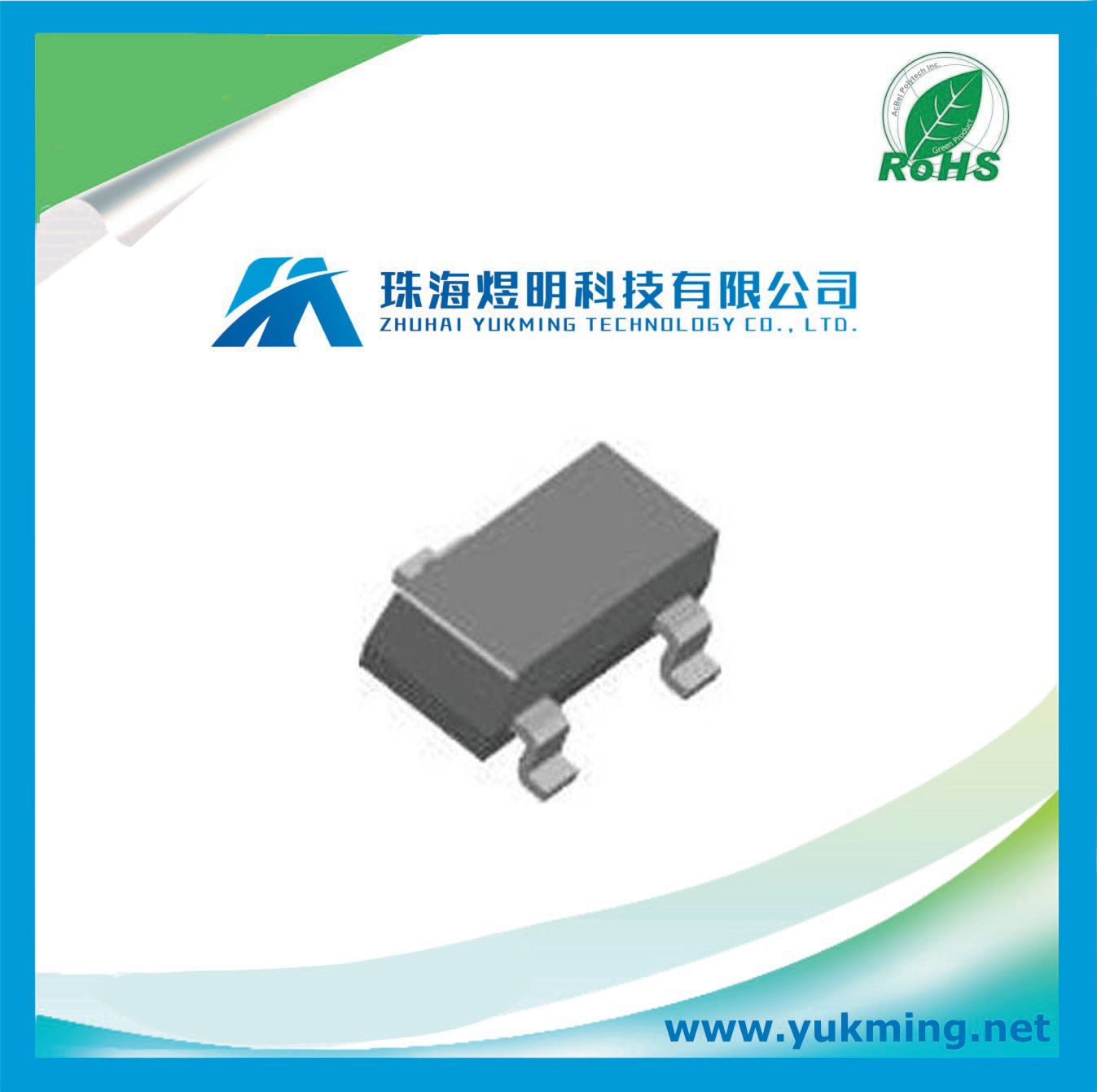

Diode Zener Single 6.8V 5% 250mW 3-Pin SOT-23 T/R

This series of Zener diodes is offered in the
convenient, surface mount plastic SOT-23 package.
These devices are designed to provide voltage
regulation with minimum space requirement. They are
well suited for applications such as cellular phones,
hand held portables, and high density PC boards.

If your circuit requires a diode to operate in the reverse breakdown region, then this BZX84C6V8 zener diode from Fairchild Semiconductor is exactly what you need. Its maximum leakage current is 2 μA. Its maximum power dissipation is 350 mW. Its test current is 5 mA. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This zener diode has an operating temperature range of -55 °C to 150 °C. It is made in a single configuration. This zener device has a nominal voltage of 6.8 V and a voltage tolerance of 5%.

Features
• Zener breakdown voltage range - 2.0 V to 75 V
• Package designed for optimal automated board
assembly
• Small package size for high density applications

Specifications
EU RoHS Compliant
Configuration Single
Test Current (mA) 5
Nominal Zener Voltage (V) 6.8
Maximum Zener Impedance (Ohm) 15
Zener Voltage Tolerance 5%
Maximum Reverse Leakage Current (uA) 2
Maximum Power Dissipation (mW) 250
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Packaging Tape and Reel
Temperature Grade Military
Mounting Surface Mount

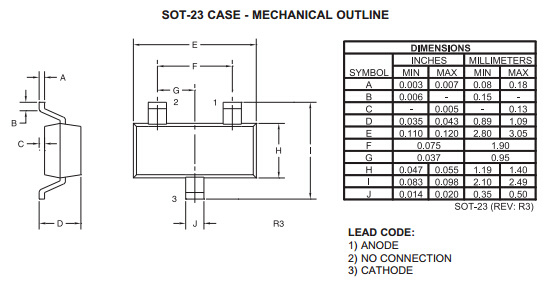

Package Height (mm) 0.93
Package Length (mm) 2.92
Package Width (mm) 1.3
PCB changed 3
Standard Package Name SOT-23
Supplier Package SOT-23
Pin Count 3
Lead Shape Gull-wing
