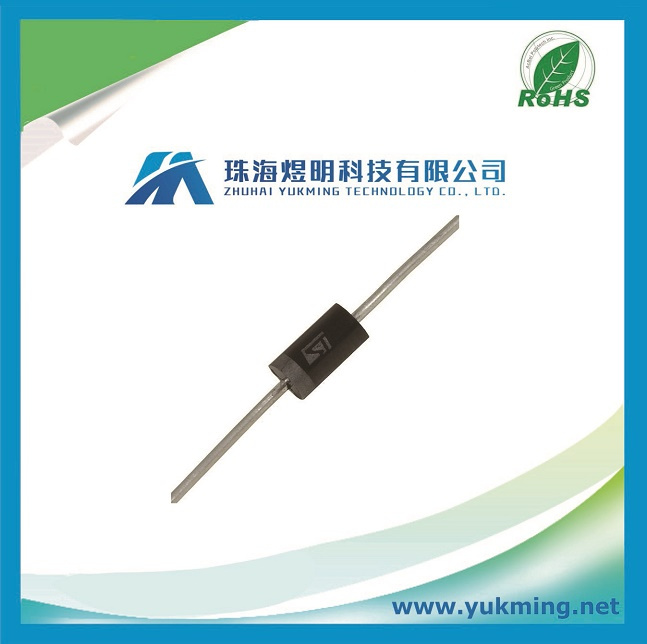

Name: Zener Transient Voltage Suppressor Diode P6ke200arl of Electronic Components
Brand: all-electronics-online.com
SKU: 800662585
Availability: InStock
Rating: 4.9 (148 reviews)

Price:	US $ 0.0167/Piece
Min Order:	6000/Piece
Pay Type:	L/C,T/T,D/P,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	P6KE200ARL
Family:	Tvs Diode
Operation Voltage:	171 V
Series:	P6ke200
Operation Temperature Range:	-65 to 175
Shape:	Do-204AC

Product Description

The P6KE6.8A series is designed to protect voltage sensitive
components from high voltage, high energy transients. They have
excellent clamping capability, high surge capability, low zener
impedance and fast response time. These devices are
ON Semiconductor's exclusive, cost-effective, highly reliable

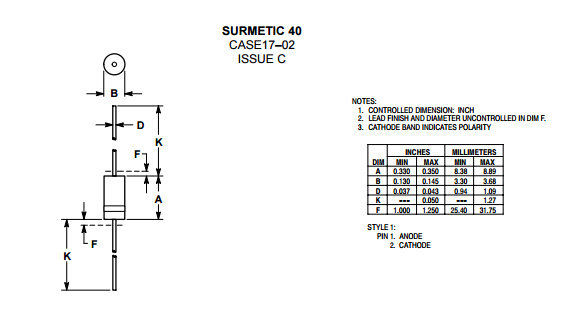

Surmetic axial leaded package and is ideally-suited for use in
communication systems, numerical controls, process controls,
medical equipment, business machines, power supplies and many
other industrial/consumer applications.
Specification Features:
• Working Peak Reverse Voltage Range - 5.8 to 171 V
• Peak Power - 600 Watts @ 1 ms
• ESD Rating of Class 3 (>16 KV) per Human Body Model
• Maximum Clamp Voltage @ Peak Pulse Current
• Low Leakage < 5 µA above 10 V
• Maximum Temperature Coefficient Specified
• UL 497B for Isolated Loop Circuit Protection
• Response Time is typically < 1 ns
