Zigbee Based Wireless Water Pressure Transmitter
| Price: |
US $ 300-500/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
2/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
TPZ350Z |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measuring Range: |
-0.1MPa......-0.01~0~0.01......200MPa |
| Overpressure: |
1.5 F.S |
| Stability: |
0.25%F.S, Max. 0.4%F.S |
| Working Tempt.: |
-40~80 Degrees Celsius |
| Temp. Compensation: |
-10~70 Degrees Celsius |
| Transmission Type: |
RS232/485 Zigbee |
| Power Supply: |
3.3V DC, 5V DC, 9V DC |
| Wireless Standard: |
2.4GHz Zigbee |
| Pressure Type: |
Gauge, Sealed Gauge, Absolute |
| Media: |
Liquid, Gas, Steam |
Product Description
Tosilon 2016 New Price Zigbee Based Wireless Water Pressure Transmitter (CE, Ex Approved)Design and Manufacturing According to CE StandardIntroduction TPZ350Z is Wireless Pressure Transmitter with wireless communication function. It uses isolated stainless steel piezo-resistive pressure sensor as sensing element, specific IC for temperature compensation of zero and FS thermal error, battery for exciting. TPZ350Z wireless signal transmission conforms to Zigbee internet protocol.
Multiple TPZ350Z can make up of Zigbee internet system. It can be used for monitoring the actual data in a large scale, such as gas tank water seal detection, oil tank detection and industrial automation control detection etc. It is mainly applied in fields like petroleum, coal, tap water and automation control etc.
Features· Long life for battery, LCD display, wireless output signal
· High accuracy, quick response, high sampling frequency, anti-interference, low · power consumption of the system
· Key operation, setting on the worksite
· Shock-proof, moisture-proof

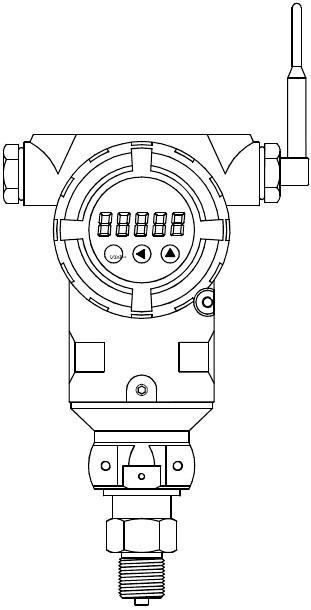

· Various application-it can be used for automation fields like chemical industry, petroleum, power station, water processing etc.Outline Structure
Performance Parameters (For Details, please contact Tosilon)Pressure Range
-0.1MPa......-0.01~0~0.01......200MPa
Overpressure Accuracy1.5 F.S ±0.25%F.S, ±0.5%F.SStability Working Tempt.0.25%F.S, Max. 0.4%F.S -400C~800CTemp. Compensation Media-100C~700C Compatible with 1Cr18Ni9TiTransmission Type Power SupplyRS232/485 Zigbee 3.3V DC, 5V DC, 9V DCInsulation Shock Effect>100M Ω@50V 10g/5~2000Hz, axes X/Y/Z20g sine 11msElectrical ConnectionStandard Cable Connection, USB
Pressure Port
M20×1.5, G1/4, G1/2, NPT1/2 For more information, please contact Tosilon
Your Global Partner for Automation
www.tosilon.com
| Pressure Range | -0.1MPa......-0.01~0~0.01......200MPa |
| Overpressure | 1.5 F.S |
| Accuracy | ±0.25%F.S, ±0.5%F.S |
| Stability | 0.25%F.S, Max. 0.4%F.S |
| Working Temp. (Deg. C) | -40~80 |
| Temp. Compensation | -10~70 |
| Media | Compatible with 1Cr18Ni9Ti |
| Transmission Type | RS232/485 Zigbee |
| Power Supply | 3.3V DC, 5V DC, 9V DC |
| Insulation | >100M Ω@50V |
| Shock Effect | 10g/5~2000Hz, axes X/Y/Z20g sine 11ms |
| Electrical Connection | Standard Cable Connection, USB |
