Zlpower 3kw 5kw 6kw Solar Pump Inverex DC AC Inverter with AVR Function for Home OEM Service
| Price: |
US $ 102-110/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
GW AVR Inverter500~6000W |
| Application: |
Solar Power System Home |
| Output Waveform: |
Pure Sine Wave Output |
| Color: |
Black |
| Warranty: |
24 Months |
| Display: |
LCD |
| Rated Power: |
1kw-6kw |
| Noise: |
60dB Max |
| Power Factor: |
0.9-1.0 |
| Pahse: |
Single Phase |
| Input Voltage: |
12/24/48V |
Product Description

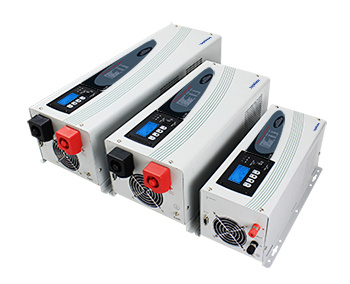

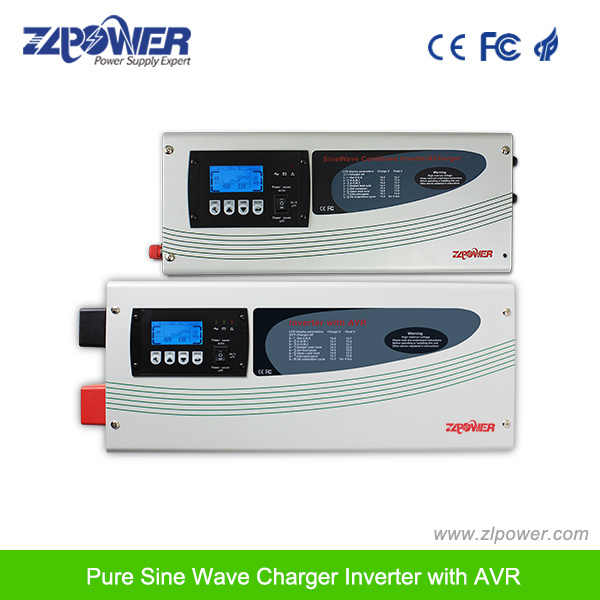

GW Inverter Series1-6KW
♦ AC mode AVR function.
♦ Output voltage.frequency and charging current can be adjusted via LCD display.
♦ Pure sine wave output, available for sensitive load.
♦ 4-step progressive charging, 7 battery type selector.
♦ Accept generator's energy output.
♦ High power factor.
♦ RS232 communication port.
♦ Protection of over load, over temperature, over charging, low battery.
Specifications
| Model Parameters | GW1000 | GW2000 | GW3000 | GW4000 | GW5000 | GW6000 |
AC
Input | Nominal Power | 1000W | 2000W | 3000W | 4000W | 5000W | 6000W |
| Input Voltage Waveform | Sinusoidal (utility or generator) |
| Nominal input Voltage | 120VAC/230VAC | 230VAC |
| Input Voltage Range | 80Vac-150Vac for 120V, 135Vac-270Vac for 230V |
| Low Line AVR Disconnect | 100Vac±4% for 120V, 195Vac±4% for 230V |
| Low Line AVR Re-connect | 95Vac±4% for 120V, 185Vac±4% for 230V |
| Low Line Disconnect | Normal:85Vac±4%,Wide:80Vac±4% for 120V, Normal:154Vac±4%,Wide:135Vac±4% for 230V |
| Low Line Re-connect | Normal:90Vac±4%,Wide:85Vac±4% for 120V, Normal:164Vac±4%,Wide:145Vac±4% for 230V |
| High Line Disconnect | Normal:136Vac±4%,Wide:140Vac±4% for 120V, Normal:263Vac±4%,Wide:263Vac±4%for 230V |
| High Line Re-connect | Normal:131Vac±4%,Wide:135Vac±4% for 120V, Normal:253Vac±4%,Wide:253Vac±4%for 230V |
| Max AC input Voltage | 120V for Max150V, 230V for Max270V |
| Frequency | 50Hz:41-54Hz, 60Hz:51-64Hz |
AC
output | Output Voltage Waveform | Sine wave |
| Power Factor | 0.9~1.0 |
| Nominal Output Voltage (V) | LV:120Vac ±10%rms, HV:230Vac ±10%rms |
Nominal Output
Frequency (Hz) | 50Hz ± 0.3Hz, 60Hz ± 0.3Hz |
AC
Charger | Nominal Charger
Current | 20A/35A/50A/70A/90A(5 stages adjustable charging current) |
| Over charge Protection | Bat.V≥15.5VDC for 12V battery, Bat.V≥31.0VDC for 24V battery, Bat.V≥62.0VDC for 48V battery, beeps 0.5s every 1s & fault after 60s |
| Efficiency | Efficiency (Battery Mode) | ≥85% |
| Efficiency (Line Mode) | >98% |
Battery
Voltage | Nominal DC input Voltage | 12/24/48Vdc | 24/48Vdc |
| Low Battery Alarm | 10.5VDC±0.3VDC for 12Vdc |
| 21VDC±0.6VDC for 24Vdc |
| 42VDC±1.2VDC for 48Vdc |
High DC input
Alarm & Fault | 16VDC±0.3VDC for 12Vdc |
| 32VDC±0.6VDC for 24Vdc |
| 64VDC±1.2VDC for 48Vdc |
| | Transfer Time | 15ms(max) |
System
Parameter | Over-Load Protection | 110%the output,load>150%,beeps 0.5s every 1s,and Fault after 20s |
Output Short Circuit
Protection | Current limit (Fault after 10s) |
| Surge Rating(10s) | 1:3(VA) |
| Protections | Low battery,over charging,over load,over temp |
| Indicators | LED+LCD Display |
General
Specifications
| Operating Temperature
Range | 0ºC~40ºC |
| Storage Temperature | -15ºC~60ºC |
| Operation humidity | 5% to 95%(non-condensing) |
| Audible Noise | 60dB max |
| cooling | Forced air,variable speed fan |
| Dimension(L*W*H) | 475*242*182 | 653*242*185 |
| Net Weight(kg) | 17.1 | 19.3 | 22.5 | 34.5 | 37.6 | 38.8 |
Product specifications are subject to change without further notice
About ZLPOWER
Shenzhen ZLPOWER Electronics Co., Ltd established on 2006 years. We are national high-tech enterprise which professional researching, manufacturing and exporting UPS power supply, Inverter power supply, Solar inverter, Car charging pile, EPS power supply. Our power products capacity from 400VA to 400KVA parallel series parallel series, which can satisfy different fields customers requirements.
ZLPOWER Company had passed ISO 9001, ISO 14001 and our products had passed Thayer certification, CE certification, UL certification, ETL certification, CCC certification......Our product are sold all over the world, mainly exported countries and areas include Europe, Africa, Middle East, Asia, USA, Canada...Our products widely used for military, finance, communication, medical treatment, industry, public security and civil power solutions.
FAQ:
Q1. How to choose the right Inverter?
1. Understand specifications of all inverter.
2. Consider the requirements of power quality.
3. Understand the current capacity of inverter and consider the future expanding.
4. Choose inverter based on your concrete requirements.
Q2. What are important factors you should consider when buying inverter?
1. inverter's reliability and stability.
2. The excellent engineers and the ability of products creation.
3. High efficiency and low noise.
4. Supplier's reputation and financial situation.
5. International safety certificate such as UL, CCC, etc.
6. Plant certifications such as ISO9001, ISO14001, etc.
Q3.How about our service?
As a user of ZLPOWER, you have the following service:
1. Two years warranty (covering batteries purchased from ZLPOWER)
2. 24-hour helpline; Service helpline: 0086-755-29105850
3. Nationwide warranty
4. Technical support on our website: www.zlpower.com
