Zlpower Hdx 1000va 1200va 2000va High Efficient DC to AC Inverter Built in Enhanced Charger

Name: Zlpower Hdx 1000va 1200va 2000va High Efficient DC to AC Inverter Built in Enhanced Charger
Brand: all-electronics-online.com
SKU: 837268515
Availability: InStock
Rating: 4.4 (117 reviews)

Price:	US $ 50/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HDX1~2kva
Capacity:	1000va~2000va
Display:	LCD/LED Display
Multiplied Protection:	Over Load, Over Temp, Over Charge etc
Warranty:	2 Years
Charging Algorithma:	3-Step Charging
Voltage Regulation:	230VAC(+10%/-18%)
Frequency:	50Hz/60Hz

Product Description

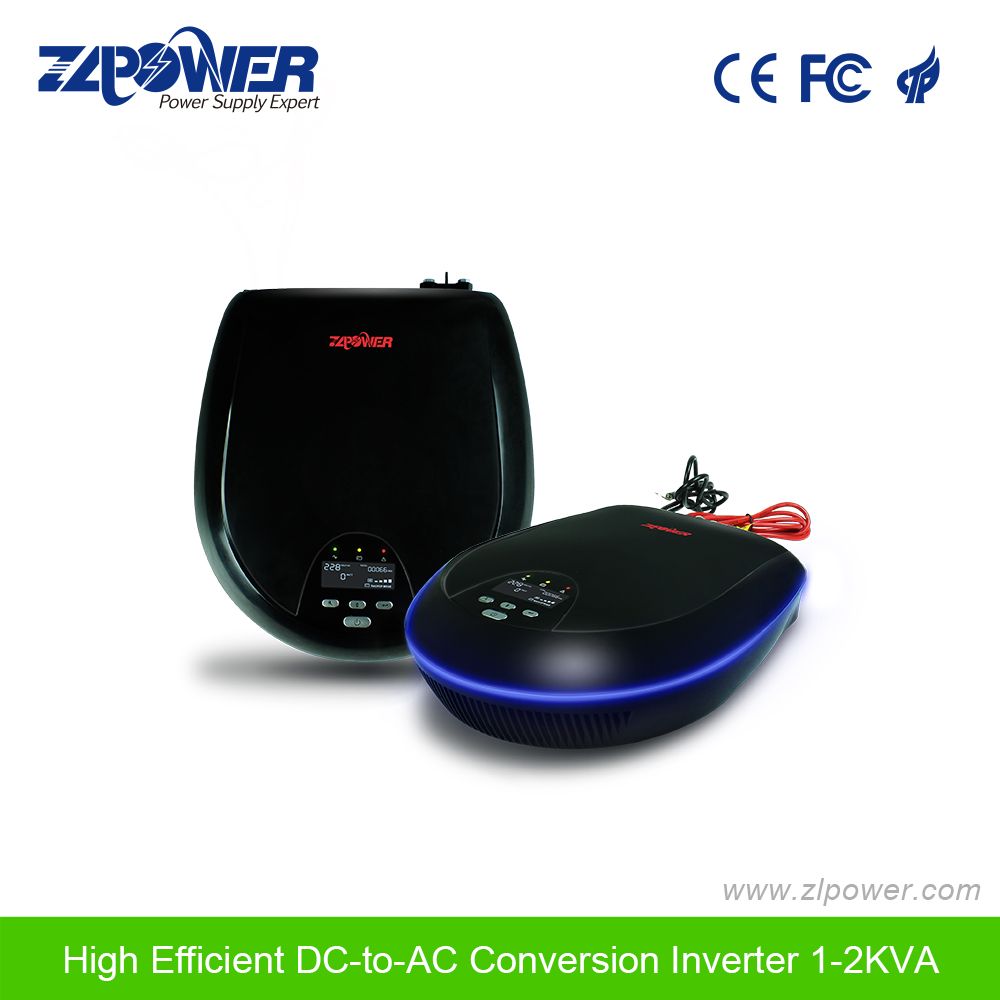

Zlpower HDX 1000VA 1200VA 2000VA High Efficient DC to AC Inverter Built in Enhanced charger

HDX is DC-to-AC inverter with auto line-to-battery transfer and integrated charging system, serving as an extended run UPS.a standalone power source or an automative inverter.
HDX supplies power from AC power and DC source. When AC cable is connected to wall socket, utility power goes to conncted equipment and/or charges the battery set via charging system.In the battery set via charging system.In the battery mode,HDX automatically converts battery energy into AC power for backing up the connected devices.

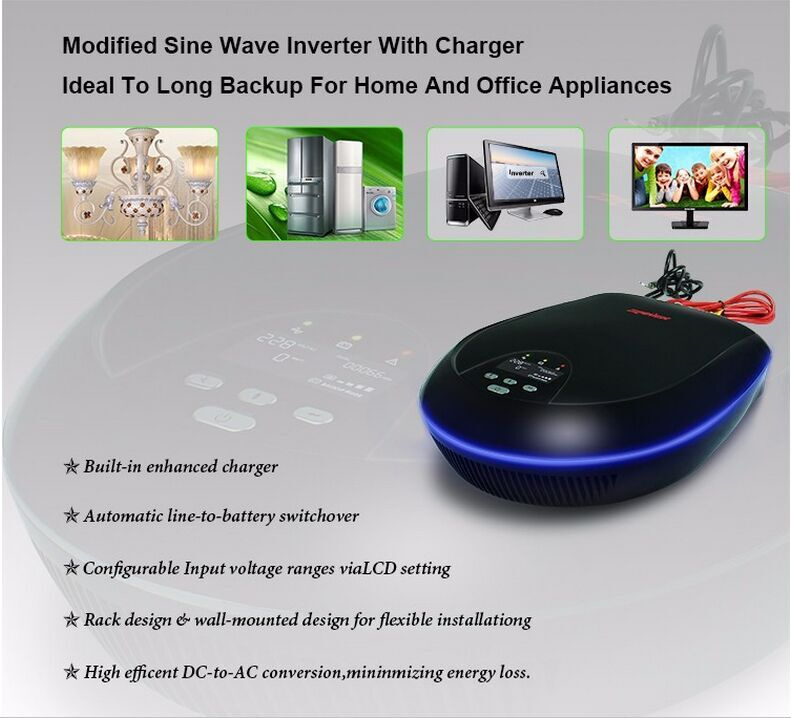

Features

Automatic line-to-battery switchover.

Configurable Input voltage ranges via LCD setting.

High efficient DC-to-AC conversion.minimizing energy loss.

Rack design & wall-mounted design for flexible instllation.

Built-in enhanced charger.

Intelligent 3-stage charger control for efficient charging and preventing overcharge.

Auto restart while AC recovery.

User-friendly LCD+LED indications.

Multiple protection:low battery alarm, low battery shutdown,over charger protection.

With the environmntal temperature control charge management.

Specification

Parameters Model		HDX 1000-12	HDX 1200-12	HDX 2000-24
*1 CAPACITY	VA/W	1000VA/700W	1200VA/900W	2000VA/1500W
BATTERY	VDC	12VDC		24VDC
AC Input	Nominal input Voltage	220/230/240VAC
	Selectable Voltage Range	170-280VAC (Narrow Range);90-280VAC (Wide Range)
AC Output	Output Voltage Waveform	Modified sine wave
	Voltage	230VAC
	Voltage Regulation (Batt.Mode)	10% / -18%
	Nominal Output Frequency (Hz)	±1HZ
Battery & Charger	Charger Current	20Amp		15Amp
	Overcharge Protection	16V		32V
Transfer Time	Typical	15ms Typical, 40ms Max.
Efficiency	AC to AC	>95%
	DC to AC	>80%
Display Indicator	AC Mode	Display output power, output voltage
	Battery Mode	The mark will flicker every 1second.
	Battery Charging Mode	Display the Battery capacity
	Fault	Display fault
Audible Alarm	Low Battery at Battery Mode	Sounding every 2 seconds
	Overload	Sounding every 0.5 second
	Fault	Continuously sounding
Environment	Operating Temperature Range	0- 50°C, 5%-90 % relative humidity (non-condensing)
	Storage Environment	-15°C to 55°C, 5% to 95% humidity (non-condensing)
	Noise Level	Less than 50dB
Physical	Dimension(LWH)	Discharge, overcharge, overload, over temperature protection.
Protection	Full Protection	Discharge, overcharge, overload, over temperature protection.

Our company

Shenzhen ZLPOWER Electonics Co.,Ltd established on 2006 year.We are national high-tech enterprise which professional researching, manufacturing and exporting UPS power supply, Inverter power supply,Solar inverter ,car charging pile,EPS Power supply, Our power products capacity from 400VA to 400KVA parallel series, which can satisfy different fields customer requirements.ZLPOWER had passed ISO9001 quality management system certification,ISO 14001 environmental management system certification.Our products had passed several industry certifications such as Thayer,CE ,UL,ETL,CCC....

Trade Fair

FAQ

Q1. What's the payment term?
A. We accept TT,30% deposit and 70% balance before shipment.

Q2. How's the delivery time?
A. usually it will take about 3-5 days for sample and 10-15 days for bulk  production

Q 3. What kind of material of transformer?
A. 100% copper which has a long sevice life and higher efficiency.

Q4. Would you accept to use our logo?
A. We would provide free OEM order depends on your quantity.

Q5. We want to know month capacity.
A. It depends on different model. Total capacity is upto 10000 pieces.

Q6. Where is your market?
A. Our products are popular all over the world as their cost-effictive perfermance.  We hope you can join us and make mutual benefit from our long-term and co-win cooperation.

Q7. Does the inverter connect with utility?
A.Yes.it is solar and utility complementary inverter. it combine invert, charge and AC autotransfer switch into one complete case, it also can charge the battery by utility and generator.
