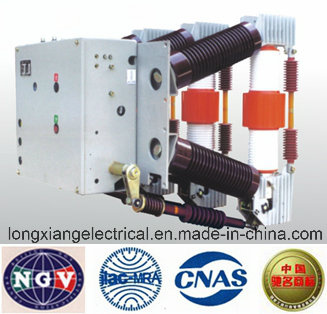

Zn12-40.5 (3AF) High Voltage Vacuum Circuit Breaker with ISO9001-2000
| Price: |
US $ 1500-4000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
ZN12-40.5 |
| Rated Voltage: |
40.5kv |
| Rated Current: |
630/1000/1250/1600/2000 |
| Rated Frequency: |
50/60Hz |
| Breaking Capacity: |
High Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Vacuum |
| Installation: |
Fixed |
| Structure: |
ACB |
| Poles Number: |
3 |
| Certification: |
CCC |
Product Description
ZN12-40.5 Series of Indoor HV Vacuum Circuit BreakerGeneral Description
ZN12-12 series of indoor high voltage vacuum circuit breaker is with rated voltage of 40.5kV,three-three phase A.C.50(60) Hz indoor high voltage switch equipment.T he structure of this kind of circuit breaker is simple but with strong breaking capability;it is suitable for application in the mining industry,substations and power transmission and distribution systems for controlling and protecting the switch.Especially suitable foe the industry which requires frequently operations like metallurgy fields,electric arc steel plant to control and protect the equipment.This kind of vacuum circuit breaker can be assembled with truck which can be suitable for many kinds of switchgear such as JYN1,GBC etc
Structural characteristics:
1.The operating mechanism is introduced the technique of operating mechanism from Siemens 3AF vacuum circuit breaker,the operating mechanism is integrated with vacuum circuit breaker,with characteristics of short transmission routes,less chains and high transmission efficiency.
2.This operating mechanism adopts spring type,it can be operated by AC or DC,also can be operated by manual.
Applying ambient conditions
1.Ambient temperature:-15~+40ºC.
2.The height above sea level:≤1000m(besides the special requirements).
3.Relative humidity:the average humidity of a day should be no more than 95%;the average humidity of a month should be no more than 90%.
4.Saturated vapor pressure:the average pressure of a day should be no more than 2.2kPa:the average pressure of a month should be no more than 1.8kPa.
5.Earthquake intensity:not exceed 8 degrees.
6.It should be installed in the places without fire,explosion,serious filth, chemical erosion and violent vibration.
Main Technical Specification | S.N | Name | Unit | Data |
| 1 | Rated voltage | kV | 40.5 |
| 2 | Rated frequency | Hz | 50/60 |
| 3 | Rated current | A | 630/1000/1250/1600/2000 |
| 4 | Rated short circuit breaking current | kA | 25/31.5 |
| 5 | Rated peak withstand current | kA | 63/80 |
| 6 | Rated short-circuit duration | S | 4 |
| 7 | Electrical endurance class | Cycle | Class E2(20cycles) |
| 8 | Mechanical endurance | Cycle | (classM1)10000 |
Company Introduction
General
Shaanxi Longxiang Electrical Co., Ltd. is a specialized manufacturer of making vacuum circuit breaker covering the voltage range of 12kV~40.5kV, which is located in Gaoxin 19th Road, East Development Zone, Baoji city, Shaanxi province. It occupancies total area of 18800 square meters including building area of 12800 square meters. The annual production capacity of vacuum circuit breaker is 16000 sets.
Professional management team and extensive market supply
Shaanxi Longxiang Electrical Co., Ltd is in posseeion of professional management team, main of them were from middle of high level management of large-scale enterprises in this industry, with more than 20 years working experience accumulation, professional knowledge and managerial experience, we focus on technology innovation based on market-oriented concept. The products are widely used in national power, petrochemical, smelting, aviation industry etc. And also exporting to Italy, Russia, Iran, India and other international markets. We also have established long-term strategic cooperation relations with several specialized manufactures of power transmission and distribution in the world.
Reliable technique and continuous improvement of quality control
Having professional R&D team to supply technical support, and cooperating with related research institutes, all these guarantee our product in pioneer level on its technique. Besides, our advanced production line can control the quality of any procedures, and all products will be inspected strictly before delivery.
Contact information
Website: www.longxiangelectric.com Fax: +86 917 6732963
