Zn68-12 Indoor High-Voltage Vacuum Circuit Breaker

Name: Zn68-12 Indoor High-Voltage Vacuum Circuit Breaker
Brand: all-electronics-online.com
SKU: 776185345
Availability: InStock
Rating: 4.3 (28 reviews)

Price:	US $ 1500-3500/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

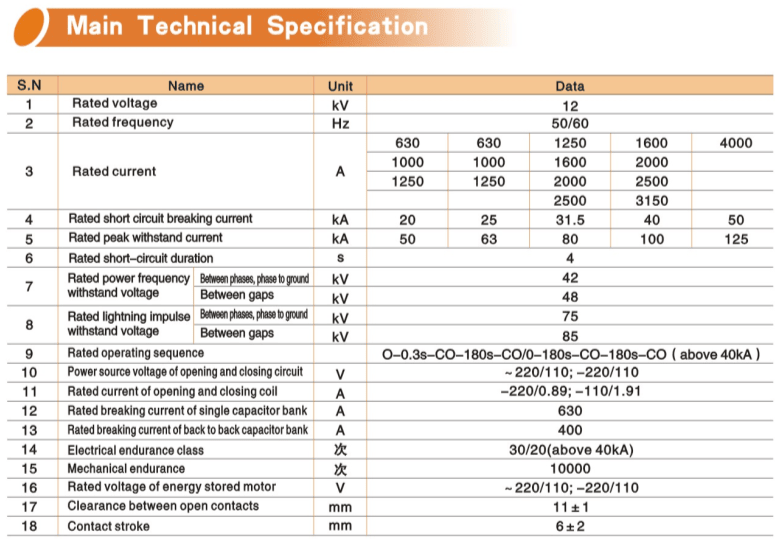

Prod Model:	ZN68
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	12kv
Rated Current:	630/1250/1600/2000/2500/3150/4000A
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Vacuum
Installation:	Fixed
Structure:	ACB
Poles Number:	3
Certification:	CCC

Product Description

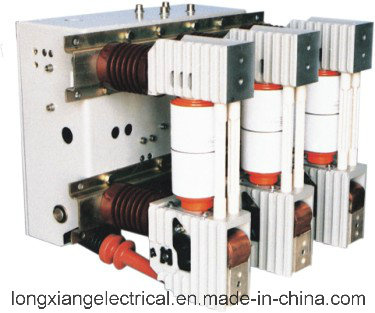

ZN68-12 Series of Indoor High Voltage Vacuum Circuit Breaker

General Description
ZN68-12 series of indoor high voltage vacuum circuit breaker is three phase A.C.50(60) Hz indoor high voltage distribution,strong breaking capability,long life with complete operating functions and convenient maintenance.It is suitable for controlling and protecting transmission and distribution system such as power generation plant and substation,especially used in the filed where it is frequently operated.
This kind of vacuum circuit breaker can be used for fixed switchgears(XGN2 and GGIA),it also can be equipment with truck used for varies panels like JYN2,KYN1 and kny49 as well as used for reconstruction for old-fashioned oil switchgear.
Structural characteristics:
1.The operating mechanism is introduced the technique of operating mechanism from Siemens 3AF vacuum circuit breaker,the operating mechanism is integrated with vacuum circuit breaker,with characteristics of short transmission routes,less chains and high transmission efficiency.
2.This operating mechanism adopts spring type,it can be operated by AC or DC,also can be operated by manual.

Applying ambient conditions
1.Ambient temperature:-15~+40ºC.
2.The height above sea level:≤1000m(besides the special requirements).
3.Relative humidity:the average humidity of a day should be no more than 95%;the average humidity of a month should be no more than 90%.
4.Saturated vapor pressure:the average pressure of a day should be no more than 2.2kPa:the average pressure of a month should be no more than 1.8kPa.
5.Earthquake intensity:not exceed 8 degrees.
6.It should be installed in the places without fire,explosion,serious filth, chemical erosion and violent vibration.

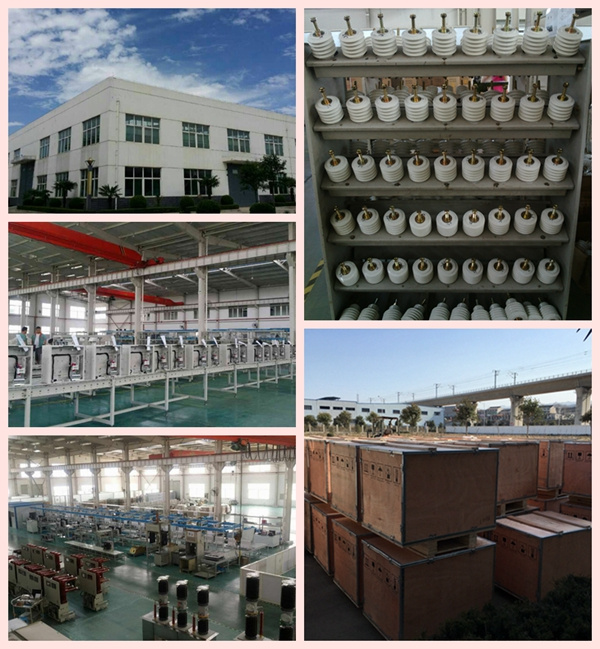

Company Introduction

General

Shaanxi Longxiang Electrical Co., Ltd. is a specialized manufacturer of making vacuum circuit breaker covering the voltage range of 12kV~40.5kV, which is located in Gaoxin 19th Road, East Development Zone, Baoji city, Shaanxi province. It occupancies total area of 18800 square meters including building area of 12800 square meters. The annual production capacity of vacuum circuit breaker is 16000 sets.

Professional management team and extensive market supply

Shaanxi Longxiang Electrical Co., Ltd is in posseeion of professional management team, main of them were from middle of high level management of large-scale enterprises in this industry, with more than 20 years working experience accumulation, professional knowledge and managerial experience, we focus on technology innovation based on market-oriented concept. The products are widely used in national power, petrochemical, smelting, aviation industry etc. And also exporting to Italy, Russia, Iran, India and other international markets. We also have established long-term strategic cooperation relations with several specialized manufactures of power transmission and distribution in the world.

Reliable technique and continuous improvement of quality control

Having professional R&D team to supply technical support, and cooperating with related research institutes, all these guarantee our product in pioneer level on its technique. Besides, our advanced production line can control the quality of any procedures, and all products will be inspected strictly before delivery.
