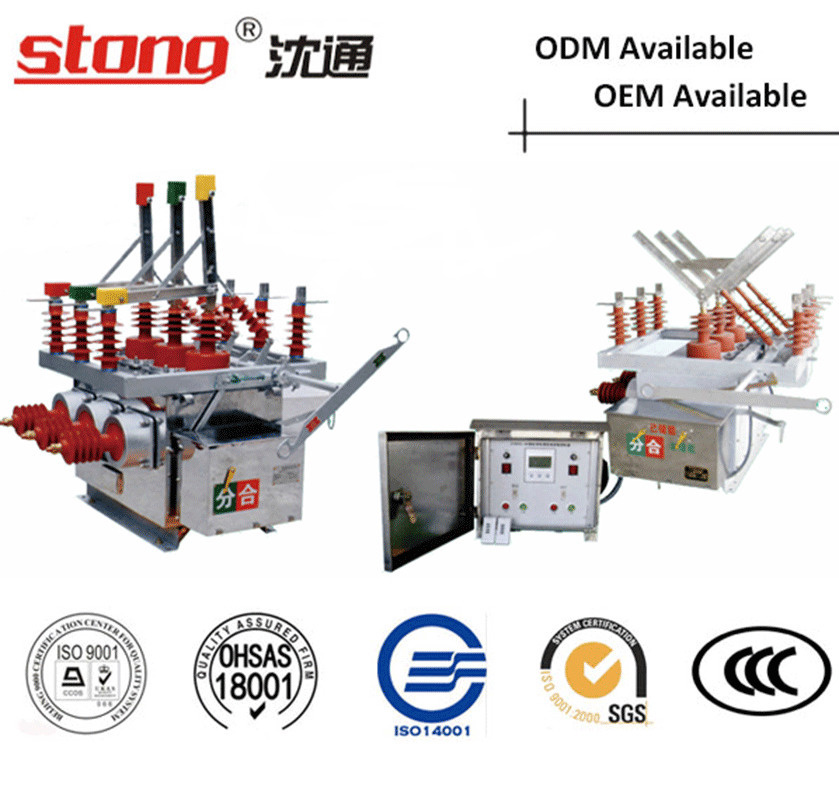

Zw10-12 Series Middle Voltage Vcb Vacuum Circuit Breaker

Name: Zw10-12 Series Middle Voltage Vcb Vacuum Circuit Breaker
Brand: all-electronics-online.com
SKU: 824793135
Availability: InStock
Rating: 4.9 (38 reviews)

Price:	US $ 1050-1100/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZW10-12
Material:	Ceramics / Stainless Steel
Rated Current:	630A
Rated Voltage:	12V
Customized:	Available
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Vacuum
Installation:	Fixed
Structure:	ACB
Poles Number:	3
Certification:	CCC

Product Description

Advantages:
                           1.Our Company Has Great Reputation In Domestic Market.
                           2.Good Quality Guaranteed With Reasonable Price.
                           3.OEM, ODM Are Welcomed.
                           4.Goods Will Be Delivered On Time.
                           5.Factory Selling Directly

Description

ZW10-12M series indoor high-voltage vacuum circuit breaker is a kind of three-phase indoor high-voltage switch of rated voltage 12kV and AC 50Hz, which comply with GB1984 standard.
Application:
This product is especially suitable for the outdoor pole line concerning power grid protection such as opening and closing current, overload and short-circuit current protection.

Name:ZW10-12M Type Outdoor Permanent Magnetic Vacuum Circuit Breaker
Applied standard:this product complies with "GB/T11022 high voltage switch equipment and control equipment standards and common technical conditions", "GB1984DC Circuit Breaker"and DL404, IEC56 and so on.
Applicable environment:1. the altitude ≤2000meters
2. Surrounding temperature:-45ºC- +65ºC;daily temperature difference:25ºC
3. Wind speed is not more than m/s
4. Not suitable for the follwing places with flammability, explosion danger, chemical erosion and acute shaking.

Application:suitable for the breaking, and making on-load current, overload current and short-circuit current of city and countryside distribution system.

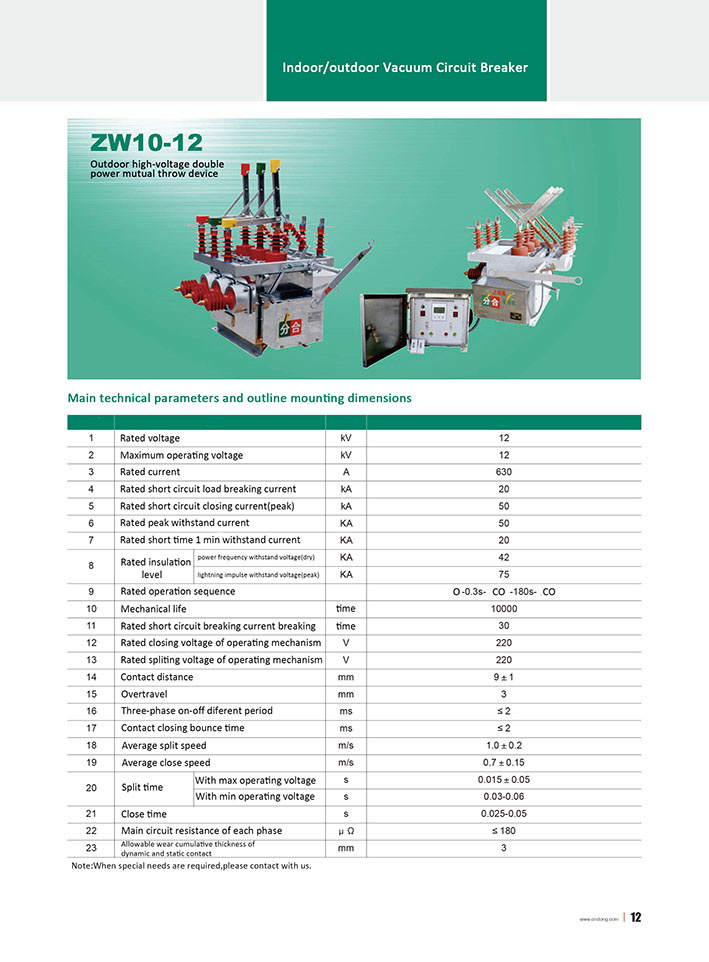

Parameter:

Rated voltage	12kv
Rated frequency	50HZ
rated current	630A
rated short-circuit breaking current	12.5/16/20KA
rated frequency	50Hz
mechanical life	10000times
rated operating sequence	0-0.3s-CO-180s-CO
Rated peak short-circuit closed current	31.5/40/50kA
rated peak withstand current	31.5/40/50kA
rated short time withstand current	12.5/16/20kA

rated short-circuit breaking current times		30times
Accumulative thickness of allowed wear		3mm
Energy storage circuit	Rated voltage v	≌220
	Rated power w	≌220

Joimmy Chow / Guanchu Tao

PLS contact Us for your order

Follow Us on LinkedIn:
Joimmy Chou
Leon Tao

Shentong Technology Co., Ltd. is an integrated professional power equipment manufacturing enterprise of science, industry and trade, which is located in Wenzhou, Zhejiang which is called "The city of electrical"in China. The current enterprise registration funds is one hundred million Yuan. Our company has throughed the ISO9001 international quality certification system. We are also the national power "two network transformation"recommended enterprise. Our company is specialized in the production of HV/LV Integrated Switchgears and switchgears' accessories, power station accessories, such as: Power Transformer, 10kv-40.5kv intelligent vacuum circuit breaker, epoxy resin casting insulators, wall bushing, contact box, earthing switch, load switch, 10kv-35kv current transformer, 10kv-35kv voltage transformer, low voltage current transformers, solenoids, SF6 load switch, high voltage metering box and other electric components. Chinese professional terminal manufacture, Chinese vcb manufacture, electrical manufacture, switchgear manufacture, Chinese CT PT manufacture

Our company has a group of senior technical production staff. The company adopts modern production and management modes. With high quality products and perfect after sale Service, we got good reputation from customers. The products are widely used in aerospace, metallurgy, petrochemical, port, municipal and other industries.

We not only provide customers with excellent quality products, but also strive to use our years of professional experience to provide customers with the best solutions and characteristics of personalized services.

Product Advantages: Well and High Quality Control, Prompt Delivery, New Product, Customer's Design and Logo are Welcome, Competitive Prices, Earth-friendly Products, Small Order Acceptable, ODM Accepted, OEM Accepted,
