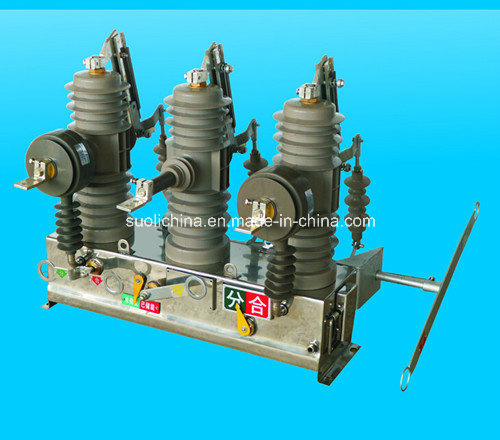

Zw43, 12kv Outdoor Miniaturization Vacuum Circuit Breaker with Zero Sequence CT

Name: Zw43, 12kv Outdoor Miniaturization Vacuum Circuit Breaker with Zero Sequence CT
Brand: all-electronics-online.com
SKU: 695656072
Availability: InStock
Rating: 4.7 (26 reviews)

Price:	US $ 1000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZW43
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Circuit Breaker:	Vacuum Circuit Breaker
Arc-extinguishing Medium:	Vacuum
Breaking Capacity:	High Voltage Circuit Breakers
Poles Number:	3
Certification:	CCC
Operation:	Electric Type
Installation:	Fixed
Speed:	High-Speed Circuit Breaker
Structure:	Conventional Circuit Breaker

Product Description

ZW43, 12KV outdoor miniaturization vacuum circuit breaker with Zero sequence CT

Quick Details

ZW43 Type Vacuum Circuit Breaker is miniaturization type from ZW32. the function and performance of ZW43 is almost the same as ZW32 type, but smaller in size and lighter in weight. so it's more suitable for overseas delivery and easier for installation.

Place of Origin: ZHEJIANG China (Mainland) Brand Name: Hengtong Model Number: ZW43
application : high voltage rated current: 630A-1250A rated voltage:12kv
apperance: stainless steel or iron

We can provide all the parts for this type ZW43 Vacuum Circuit Breaker

Overview
ZW43-12 model outdoor vacuum circuit device (hereinafter referred to as circuit device) is Rated voltage 12KV, three-phase AC 50/60Hz outdoor distribution equipment. And Short-circuit current. For the main break, when closing the power system load current, overload current And Short-circuit current. ,And industrial and mining enterprises in the substation for power distribution system for the protection and control purposes, And frequent operation of rural power grid places.
The circuit device is small, Weight light, anti-condensation, maintenance-free features, can adapt to poor weather Condition and dirty environment. .

Main technical parameters

Serial number	Project	Unit	Parameter
1	Rated voltage	KV	12
2	Rated frequency	Hz	50/60
3	Rated Current	A	630-1250
4	Rated short-circuit breaking current	KA	20
5	Rated peak withstand current(peak)	KA	50
6	Rated short-time Withstand current	KA	20
7	Rated short circuit making current (peak)	KA	50
8	Mechanical life	Times	10000
9	Rated short-circuit breaking current breaking number Times	Times	30
10	power frequency withstand voltage (1min):(wet) (dry) Phase, on the ground / Fracture	KV	42/48
11	Lightning impulse withstand voltage(peak) Phase, on the ground/Fracture	KV	75/85
12	2 Times Loop 1min frequency voltage	KV	2

Wenzhou Suoli Electric Co, . Ltd. (will change the namer to Wenzhou Manjia Electric Co., Ltd. ) is a manufacturer specialized in low-voltage electrical appliance, gathering research, manufacture, distribution and service as a whole. We mainly produce switch cabinet, JXF, distribution box, lighting box, plastic water-proof and dust-proof junction box, seal box, MCBs and so on.

Our company is established in 1995, located in Yueqing economic development zone with an area of 7800 square meters which is next to national highway 104, the transportation is very convenient.

Relying on powerful technology strength, advanced testing equipment, exquisite technical and modernized management mode, based on the principle that people oriented, we have 200 workers and 20 engineers. We import numerical control bending machine, cutting machine, punch, injection molding machine and such top-ranking facilities. Our products have passed certification of SON, CE and ISO9001.

The satisfaction of customers is our wishes and responsibility. In order to offer best services, we require all the staff to strengthen the notion of customer first. Besides, we also have established the center of after-sale services.

The company always keeps in touch in with clients and communicates with potential clients. Suoli always has been keeping the idea of the human being as base and considers honesty as the foundation, peace as the most valuable thing, and puts credibility in the first place.

Together with you, Souli is willing to create a better future.
