| Prod Model: |
ZYSW-T 600-1500VA |
| Product Name: |
Zysw-T 600-1500va Home UPS Sine Wave Inverter with |
| Power Source: |
Electric Power |
| Output Power: |
600-1500va |
| Nature Of Wave String: |
Sine Wave Inverter |
| Nature Of Source Flow: |
Passive Inverter |
| Protection: |
Overvoltage |
| Phase: |
Single |
| Type: |
DC/AC Inverters |
| Classification: |
Inverter with Charger |
| Brand: |
Kemapower |
Product Description

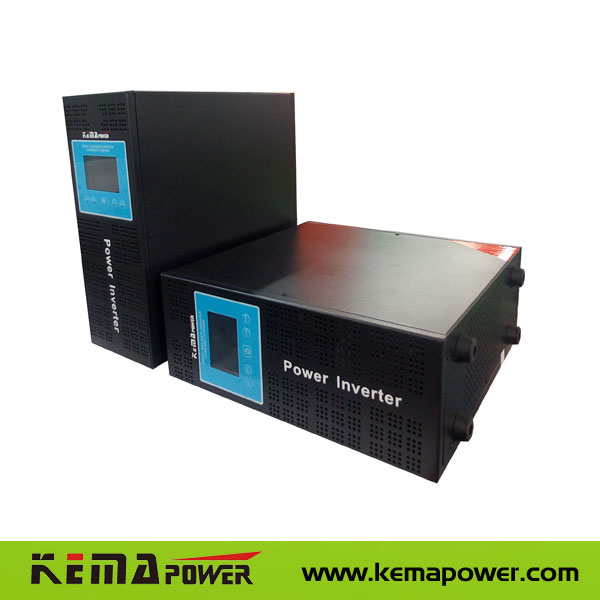

ZYSW-T 600-1500VA HOME UPS SINE WAVE INVERTER WITH CHARGER *I/P: 220VAC or 110VAC,O/P:220VAC or 110VAC
*12VDC For 500VA/800KVA/1KVA/1.5KVA ,0.8PFor 24VDC 1.5KVA,0.8PF
*Smart Charging 15-20Amp,Off Charging function
*Adjustable charge current or adjusted input Range
*Silence setup and Cooling Fan with speed control
*Auto-restart when AC resume
*USB Communication is option
Key Features1.LCD low frequency pure sine wave inverter with charger
2.Pure sine wave output with AVR
3.Adjustable charge Current.
4.Selectable Battery type
5.Adjustable 10A /20A Grid charge current
6.Selectable 145-270V or 100-290V input range
7.OFF charging function,charging while off
8.Auto transfer time 10 Ms.
9.Auto-restart and self-testing when AC resume
10.protection for overload,short-circuit,Bat Low protection
Technical Specifications | Model | ZYSW600T | ZYSW800T | ZYSW1000T | ZYSW1500T |
| Maximum Output Power(W) | 600VA | 800VA | 1000VA | 1500VA |
| 500W | 800VA | 800W | 1200W |
| Input | Voltage | UPS MODE 145-270V or Inverter Mode 100-290V |
| Frequency | 45Hz~65z |
| Output | Voltage | UPS.mode:203-238±5(Vac)
INV.mode:150-255±5(Vac) |
| Frequency | 50Hz/60HZ ±5Hz (DC mode) |
| Output Waveform | sine wave |
| General Protection | Output Short; Over Voltage; Low-Voltage; Power Utility Short; Low Battery Voltage |
| DC voltage | 12VDC | 12VDC | 12VDC | 12/24VDC |
| Charge Current | Max 20AMP , Selectable by Monitor |
| Battery Type | selectable by LCD monitor |
| Transfer Time(ms) | Max 10MS |
| Over load | < 150% overload:No beed, > 150% overload :1beep per second |
| Alarm | battery low,LCD type beeping every 0.5second, when overload:UPS beep every 0.5second |
| Communication Interface | USB communication option. |
| Surge protection | yes |
| LCD Display | I/P O/p vac hz, bat % , load %, input range / battery type /charge current/ solar charge vdc amp , fault , over temp |
| Product size | W*D*H (mm) | 290*307*123 | 290*307*123 | 290*307*123 | 290*307*123 |
| CTN size | W*D*H (mm) | 355*380*233 | 355*380*233 | 355*380*233 | 355*380*233 |
| CTN Weight (Gross/Net) (KG) | 8/7.3 | 11.01/10.3 | 11.65/10.9 | 13.66/13 |
