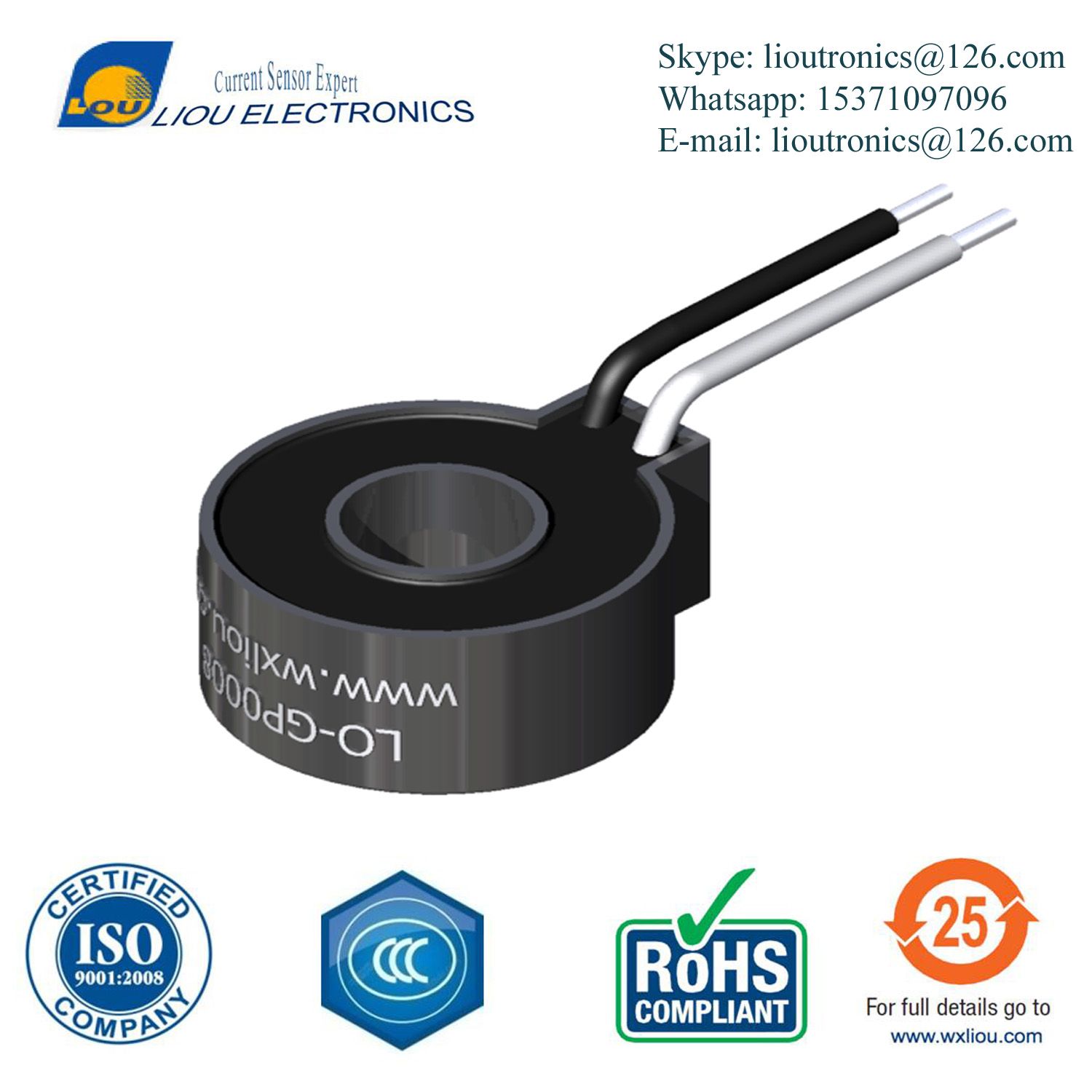

1; 1000 25A Input Small Volume Current Transformer Used for Signal Collection

Name: 1; 1000 25A Input Small Volume Current Transformer Used for Signal Collection
Brand: all-electronics-online.com
SKU: 818746045
Availability: InStock
Rating: 4.4 (20 reviews)

Price:	US $ 0.8-2/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

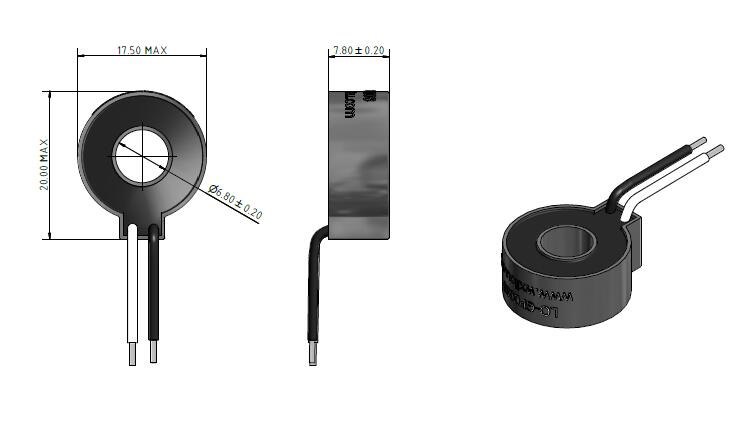

Mechanical Specification

Description
¨   50/60 Hz,Single Phase,AC Current Sensor
¨   Dynamic Range from 25 to 30Amps
¨   Meets IEC 60044-1 class 3
¨   Very low temperature coefficient
¨   Meets UL class B (130ºC) thermal insulation system
¨   Meets UL 94V-0
¨ AC isolation resistance: 4KV for 60s

Application
• Digital electricity meter
•   Recording
•   Power monitoring
•   Energy management
•   Alternative energy monitoring

ELECTRIC SPECIFICAITON AT 25ºC
Model number	Turns Ration	Ipri⁴	Iout⁵	Iprimax⁶	Ioutmax⁷	R_S	Accuracy Class³	R_L⁸	Weight	Frequency range
Model number	Turns Ration	Amps	mA	Amps	mA	Ohms		Ohms	(g)	(Hz)
LO-GP0008	1:1000	25	25	30	30		3	20		50-60

Note:
1.Output voltage is proportional to the derivative(di/dt)of the input current based on the Rogowski Coil principle.
2.All current and voltages assumed to be sinusoidal waveforms at Fr, the constant rated frequency in Hz, measured as RMS value.
4.Ipri=Rated primary current.
5.Iout=Rated secondary current.
6.Iprimax=Sensed max primary current.
7.Loutmax=Sensed max secondary current.

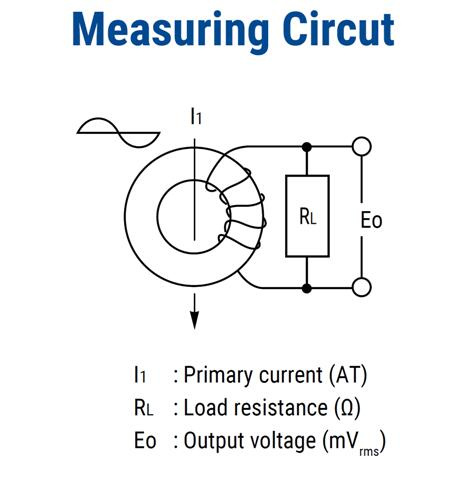

8.R_L=Terminating resistance. Varying terminating resistance increases or decreases output Voltage /Ampers according to following

ABSOLUTE MAXIMUM RATINGS
Operating free air temperature range	-40ºC to 85ºC
Storage temperature range	-40ºC to 100ºC

LEADS INFORMATION
UL1015 24Awg wire black & red	30mm±3.0mm
Stripped and Tinned	4mm±1.0mm

Prod Model:	LO-GP0008
Phase:	Single
Safety Standard:	IEC60044-1
Thermal Class:	Class B
Flame Retardant:	UL94V-0
Applicaiotn:	Signal Collection
Production Process:	Encapsulaiton
Material:	Silicon Steel
Accuracy Grade:	3
Application:	Signal Colleciton
