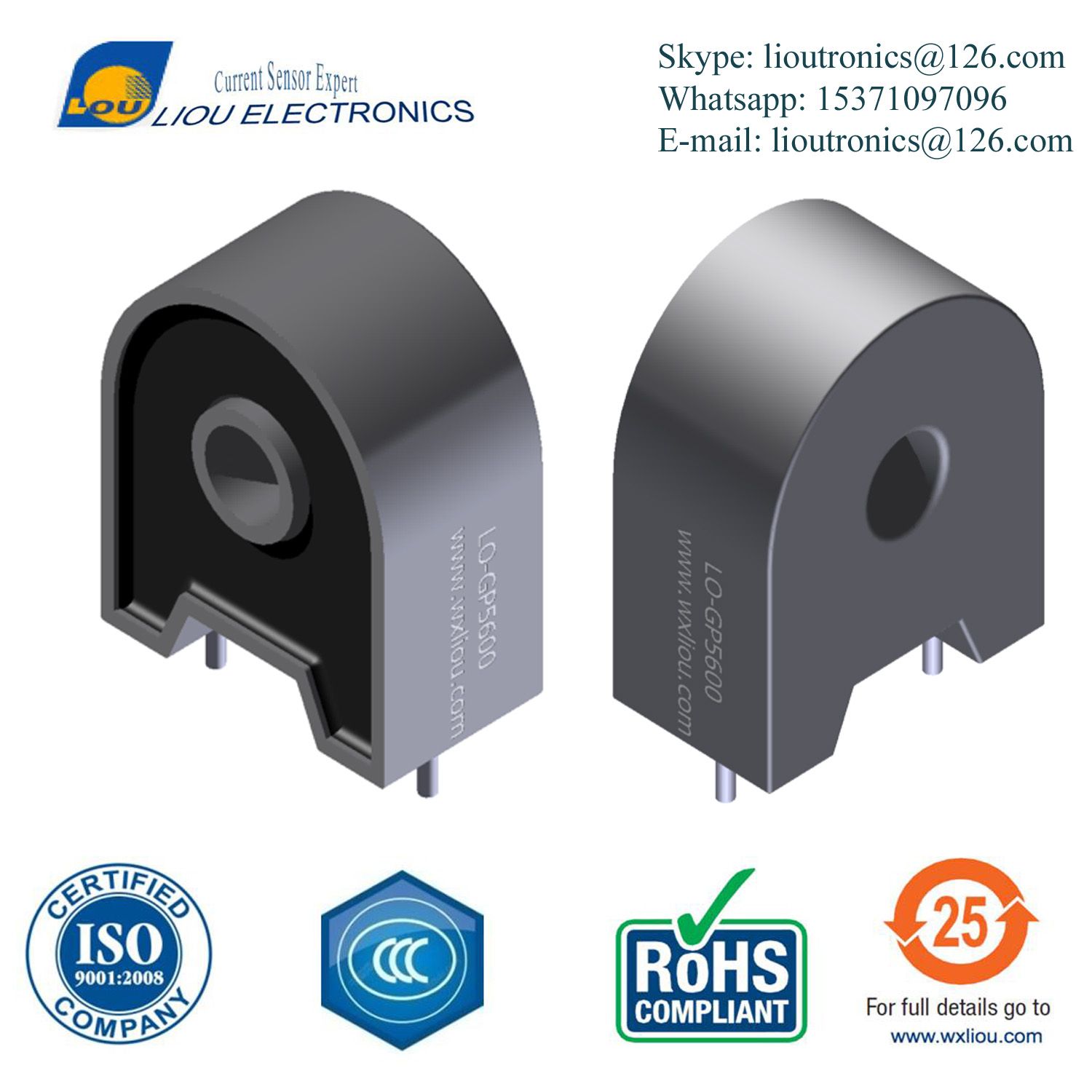

High Frequency Current Transformer 1: 50 to 300 10A Input
| Price: |
US $ 0.4-0.7/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
T/T,Western Union |
DESCRIPTIONThe LO-GP5600 series of current sense transformers are designed to monitor AC currents. They can be used for
high frequency current sensing, for example in switched-mode power supplies, motor control and electronic lighting ballasts.FEATURESRoHS compliant
50, 100, 200 & 300 Turn variants
Primary current rating 10A
20kHz-200kHz frequency range

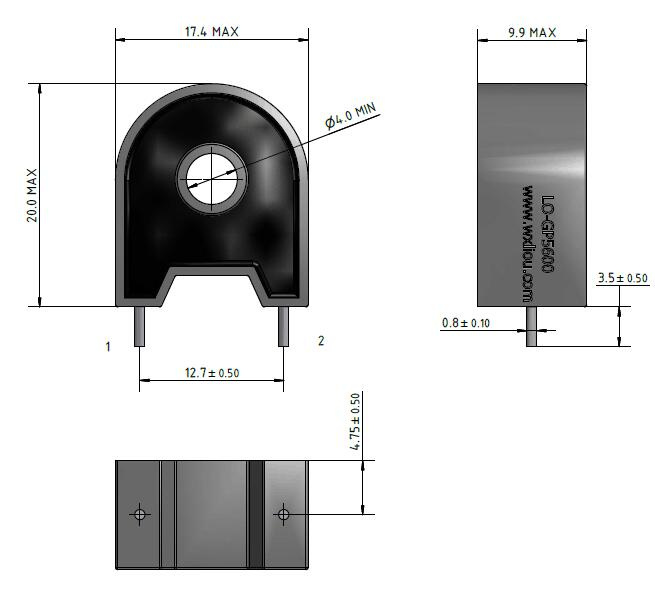

Centre tapped variants availableMECHANICAL SPECIFICATION
ELECTRIC SPECIFICATIONS @25C| SELECTION GUIDE |
Order Code | Number of
Turns | Inductance
Min. | DC Resistance | Terminating Resistance to Produce 1VOUT/1AIN |
| ±1Turn | Pins 1&3 | Pins 1&3, Ω | Ω |
| LO-56050C | 50 | 4.5mH @1V, 50kHz | 0.133 - 0.199 | 50 |
| LO-56100C | 100 | 18mH @1V, 50kHz | 0.93 - 1.40 | 100 |
| LO-56200C | 200 | 72mH @1V, 10kHz | 1.87 - 2.81 | 200 |
| LO-56300C | 300 | 160mH @1V, 10kHz | 5.73 - 8.59 | 300 |
| LO-56T100C | 100CT | 18mH @1V, 50kHz | 0.93 - 1.40 | 100 |
| LO-56T200C | 200CT | 72mH @1V, 10kHz | 1.87 - 2.81 | 200 |
| LO-56T300C | 300CT | 160mH @1V, 10kHz | 5.73 - 8.59 | 300 |
| ABSOLUTE MAXIMUM RATINGS |
| Operating free air temperature range | -40°C to 85°C |
| Storage temperature range | -40°C to 100°C |
| SOLDERING INFORMATION1 |
| Peak wave solder temperature | 300˚C for 10 seconds |
| Pin finish | Tin |
TECHNICAL NOTESISOLATION VOLTAGEAll LO-5600 current sense transformers are tested at 500Vdc for a minimum of 1 second during our standard test procedure.
In addition, as part of our qualification process carried out prior to product launch, the 5600 series demonstrated no isolation breakdown at 10kVdc or 6kVac with a bare conductor as the primary winding. Whilst this does not imply these parts are designed for environments where such high voltages may be present, it does demonstrate the level of isolation voltage these products are able to withstand. Full mains safety isolation can be achieved with appropriately insulated wire on the primary winding.
| Prod Model: |
LO-GP5600 |
| Frequency Range: |
20k-200kHz |
| Turn Variants: |
50t-300t |
| Thermal Class: |
Class B |
| Flame Retardant: |
UL94V-0 |
| Packaging: |
Carton |
| Production Process: |
Encapsulaiton |
| Material: |
Ferrite Core |
