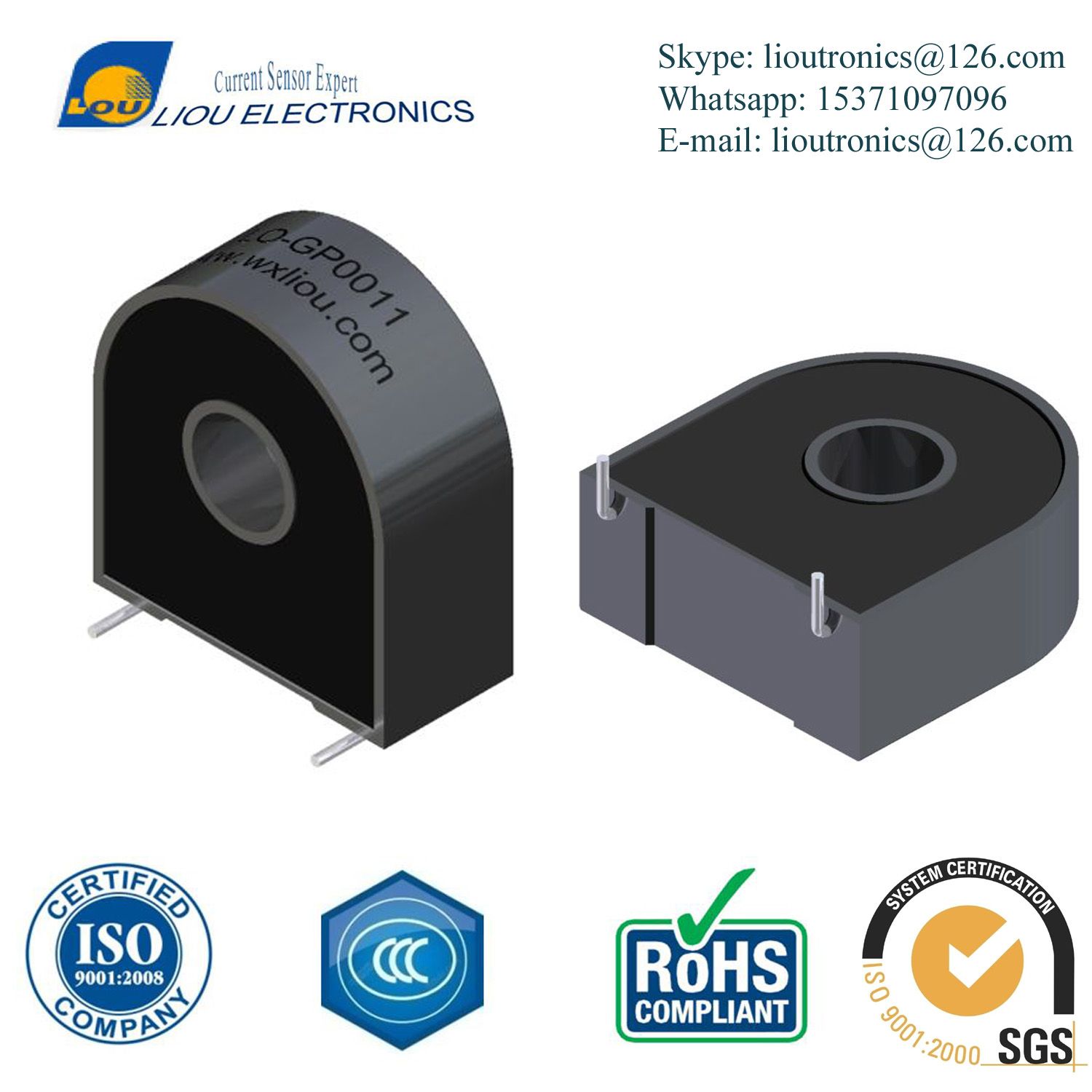

1: 2000 High Accuracy Wide Band Current Sensor CT

Name: 1: 2000 High Accuracy Wide Band Current Sensor CT
Brand: all-electronics-online.com
SKU: 822083905
Availability: InStock
Rating: 4.7 (145 reviews)

Price:	US $ 0.4-1/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

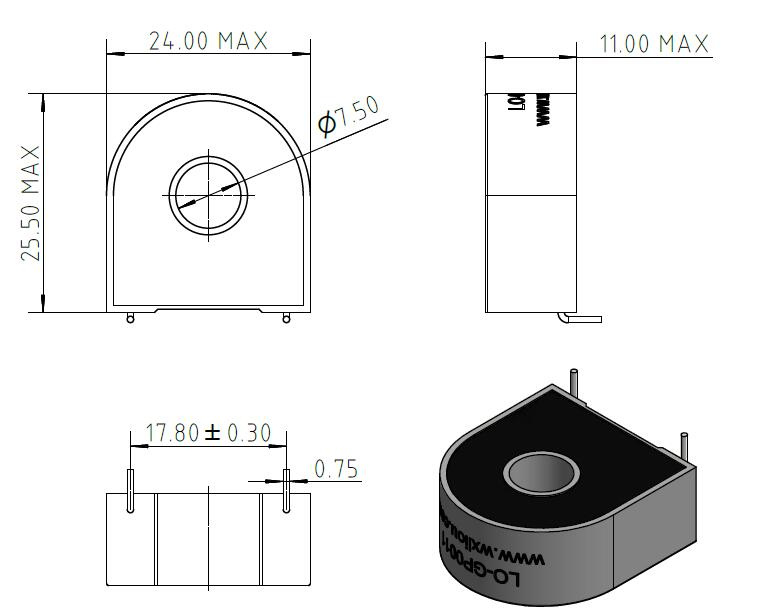

Mechanical Specification

Description
¨   50-20k Hz,Single Phase,AC Current Sensor
¨   Dynamic Range from 0.25 to 6Amps
¨ Linearity< 0.1%  Phase error < 10' at rated current
¨   Very low temperature coefficient
¨   Meets UL class B (130ºC) thermal insulation system
¨   Meets UL 94V-0
¨ AC isolation resistance: 4KV for 60s

Application
• Digital electricity meter
•   Recording
•   Power monitoring
•   Energy management
•   Alternative energy monitoring

ELECTRIC SPECIFICAITON AT 25ºC
Model number	Turns Ratio	Ipri⁴	Iout⁵	Iprimax⁶	Ioutmax⁷	R_S(Max)	Accuracy Class³	R_L⁸	Weight	Frequency range
Model number	Turns Ratio	Amps	mA	Amps	mA	Ohms		Ohms	(g)	(Hz)
LO-GP0011	1:2000	5	2.5	6	3.0	90	0.2	100	25	50-20k

Note:
1.Output voltage is proportional to the derivative(di/dt)of the input current based on the Rogowski Coil principle.
2.All current and voltages assumed to be sinusoidal waveforms at Fr, the constant rated frequency in Hz, measured as RMS value.
4.Ipri=Rated primary current.
5.Iout=Rated secondary current.
6.Iprimax=Sensed max primary current.
7.Loutmax=Sensed max secondary current.

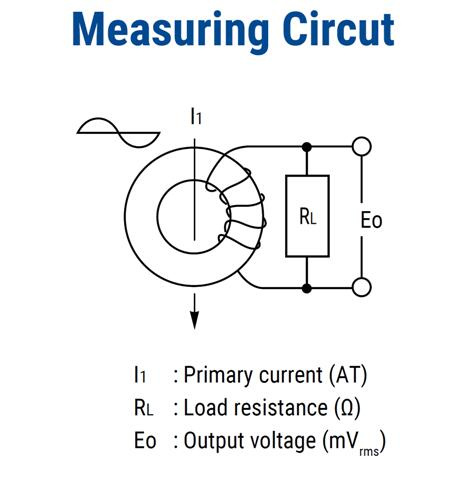

8.R_L=Terminating resistance. Varying terminating resistance increases or decreases output Voltage /Ampers according to following

ABSOLUTE MAXIMUM RATINGS
Operating free air temperature range	-40ºC to 85ºC
Storage temperature range	-40ºC to 100ºC

SOLDERING INFORMATION
Peak wave solder temperature	300ºC for 10Seconds
Pin finish	Tin

Prod Model:	LO-GP0011
Phase:	Single
Safety Standard:	IEC60044-1
Thermal Class:	Class B
Flame Retardant:	UL94V-0
Applicaiotn:	Signal Collection
Production Process:	Encapsulaiton
Material:	Nanocrystal
Accuracy Grade:	0.2
Application:	Signal Colleciton

Quality Standard and Custom Design Products

LIOU Current Transformer has been an industry leader in design and production of current transformer products for over 20 years. Our focus is to build quality products designed to meet your needs. You may choose from any of our standard products or we can design and build a custom solution specifically for your application.

Designed, Manufactured and Distributed From One Location

Every aspect of your order is handled in house allowing us the opportunity to design, manufacture and ship your current transformer product quickly. Each order is reviewed by one of our qualified engineers to make sure the product you are ordering will work for you.

Superior Goals and Higher Expectations

It is the goal of LIOU Current Transformer to maintain its position as a worldwide industry leader in current transformer design and production. We will accomplish this by providing you with quality products and services that meet or exceed your current and future expectations.

Our Objective Is For You to Have Full Confidence in LIOU Current Transformer.

Each employee, at every level within the company, understands your satisfaction is fundamental to our growth and long-term development. LIOU Current Transformer believes that this level of quality will be achieved by:

1. A Total Quality Management approach. Every employee, supplier and customer is regarded as an essential part of the quality achievement process.

2. An error-free performance standard, based on prevention and development of a "Get It Right The First Time" work environment.

3. Implementation and maintenance of a quality assurance process that includes a hands on inspection of all your products during the manufacturing process with a final quality inspection prior to shipping.

4. Adhering to safety standards.

5. Development of all employees through continued training.

We look forward to demonstrating to you the superior quality and customer service our customers have come to expect from LIOU Current Transformer.
