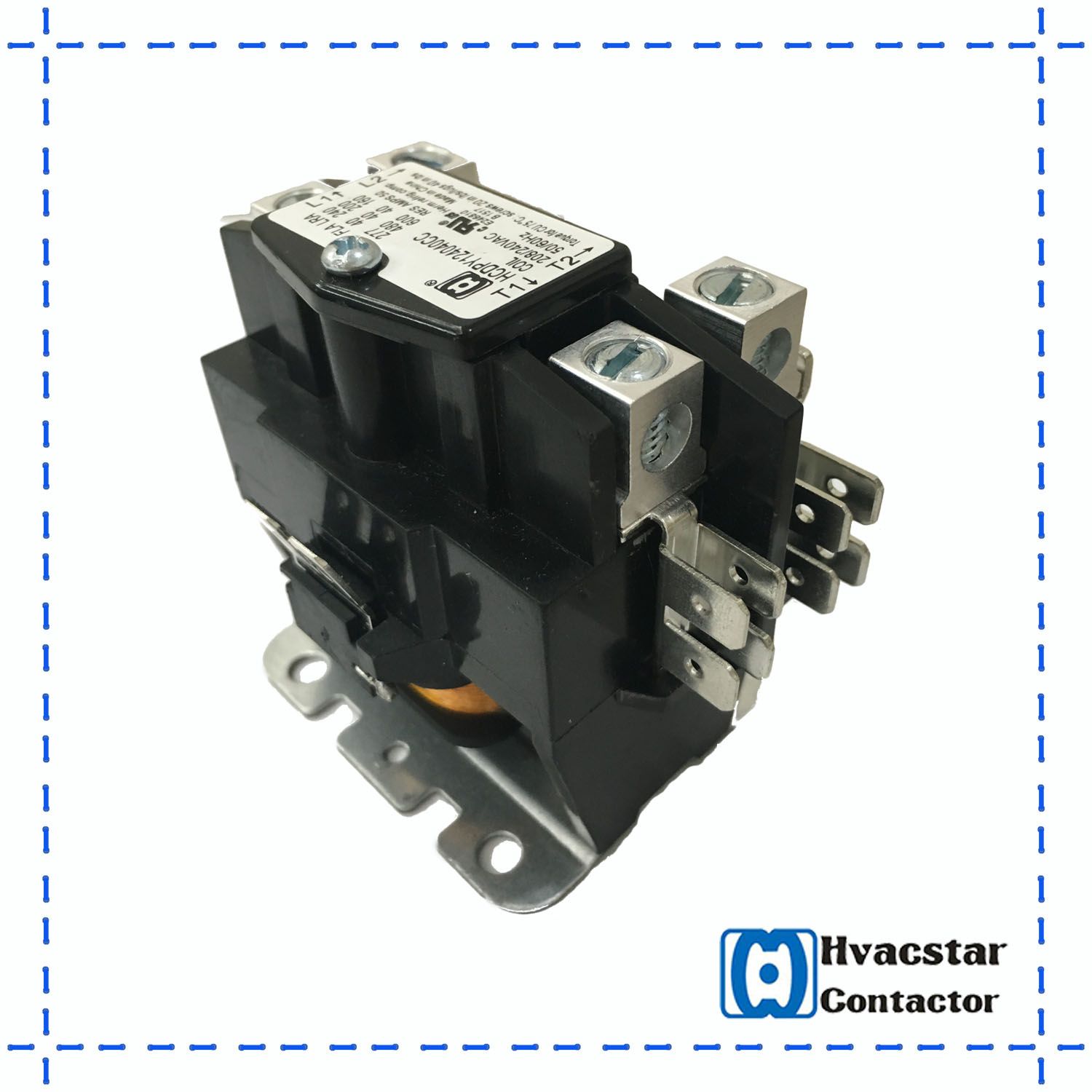

100% Safe Hcdp Series 1.5 Pole 40A 120V Magnetic Contactor

Name: 100% Safe Hcdp Series 1.5 Pole 40A 120V Magnetic Contactor
Brand: all-electronics-online.com
SKU: 822253145
Availability: InStock
Rating: 4.9 (122 reviews)

Price:	US $ 2.7-3.5/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Definite Purpose AC Contactor 1 Pole 40A 120V Electrical Contactor

Contact rating:

Voltage		240 V ac	480 V ac
MODEL	FLA(A)	LRA(A)	LRA(A)
HCDP_1	20	120	100
	25	150	125
	30	180	150
	35	210	175
	40	240	200
HCDP_2	20	120	100
	25	150	125
	30	180	150
	35	210	175
	40	240	200
HCDP_3	20	120	100
	25	150	125
	30	180	150
	35	210	175
	40	240	200
	50	300	250
	60	360	250
	75	450	375
	90	540	375
HCDP_4	20	120	100
	25	150	125
	30	180	150
	35	210	175
	40	240	200

Advantages:
High arc-resistant phenolic resin material hold stationary terminals,positions actuator, and magnet/coil assembly.It has much stronger endurance and insulating ability than normal contactors .
The internal construction of the HCDP series is manufactured from engineered compounds to provide excellent mechanical life in the most demanding applications.
Premium Silver Alloy contacts designed for long lifeShock-resistant actuator arms provide mechanical durability Durable Molded Plastic Housing Industry standard mounting plates Compact Design, easy to install .

Features:
Meets The ARI 780/790 Standard
Universal metal mounting plate allows for complete ease of replacement
Long electrical life; tested to 250,000 cycles
Reliable mechanical life; tested to 1,000,000 cycles
EE magnet assembly assures optimal performance without sacrificing power consumption
Superior copper coil
Performance unaffected by mounting position
Flexible termination options suitable for various applications
Dust-free internal constructions

FAQ
      Q1: Can I get a sample for testing?
           A: Yes, we could offer free sample, but shipping cost should be paid at customers' side .
       Q2: Can I print my logo on the products?
           A: Yes, OEM and ODM are available.
         Q3: How can I get the after-service?
          A: If quality problem happen we promise re-send the item .
       Q4: Do you have inspection procedures for products?
        A: Our products100% self-inspection and testing before packing.
         Q5: How about delivery time of the order?
          A: 15-20 days after getting deposit.
         Q6: How about payment terms?
          A:  30% deposit, the rest payment balance against B/L copy .

Contact Us:

Contact person:Neal

Phone Number:+8613587828006

Prod Model:	HCDPY112040
Color:	Black
Certificate:	UL, Ce, CCC, S
Material:	High Arc-Resistant Phenolic Resin
Application:	Refrigeration, Air Conditioning and Heating
Delivery Time:	30 Days After Deposit
