Prod Model: |
WP311 |
Item Name: |
Level Transmitter |
Accuracy: |
0.2%Fs; 0.5 %Fs |
Measuring Range: |
0-0.5~200mh2o |
Power Supply: |
24V(12-36V) DC |
Output Signal: |
4-20mA (2 Wire), 4-20mA with Hart Protocol |
Protection Grade: |
IP68 |
Indicator (Local Display ): |
4 Bits/ 16bits LCD Indicator Option |
Operation Temperature: |
-40~85deg C (Medium Cannot Be Solid) |
Product Description

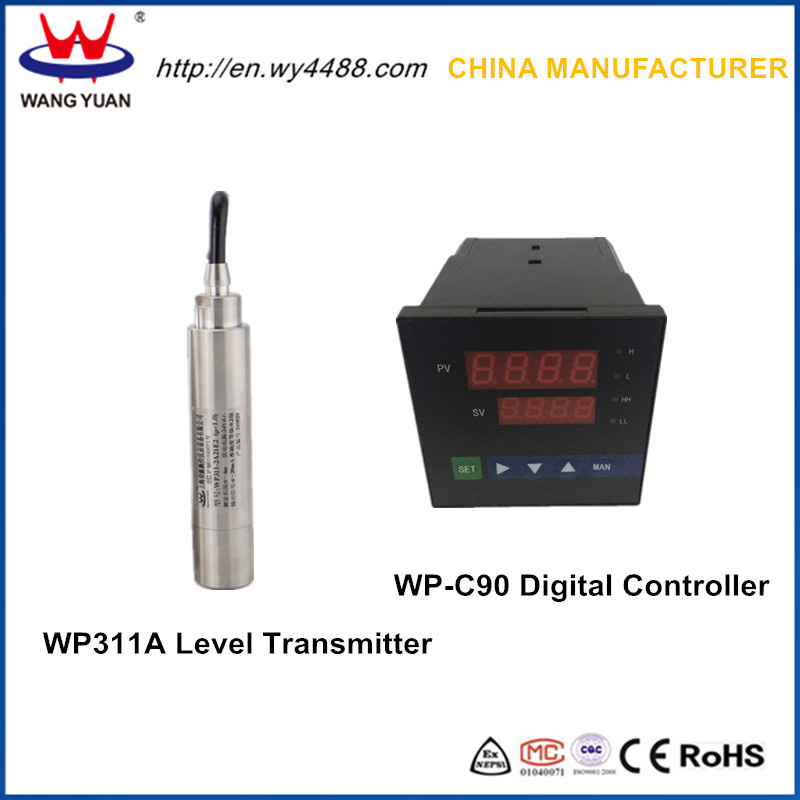

0-10mH2O with 11m Cable Throw-in Type Liquid Level Transmitter Level Transducer
MODEL : WP311
Application:
This series level transmitter can be used to measure & control liquids, oil, water, fuel pressure in :
- Level measuring
- Building automation
- Ocean and ship
- Vacuum equipment
- Constant pressure water supply
- Metallurgy, environment protection
- Medical treatment and etc
Description:
1. WP311 Immersion level transmitter (also called static level transmitter) adopt advanced imported sensitive component with anti-corrosive diaphragm, the sensor chip was put inside a stainless steel (or Teflon) shell.
2. The function of iron cap at the top is protecting transmitter, and the cap can make the measured liquid touch the diaphragm smoothly.
3. A special vented cable was used, and made the back pressure chamber of diaphragm connect well with atmosphere, and level measurement was not varied according to the change of external atmospheric pressure.
4. With exact measurement, long term stability, excellent seal and corrosion proof, this transmitter meets the standard of ship, and it can be thrown directly in water, oil and other liquids for a long time.
5. Special internal construct technology completely solved the problem of condensation and dewfall
6. Special designed electronic technology basically solve the problem of lightning strike
Features
* level transmitter:
* Imported sensor component
* Various output signal
* Excellent corrosion proof and seal
* High stability & reliability
* Meet the standard for ships
* High precision 0.1%FS, 0.2%FS, 0.5%FS
* Explosion-proof type: Ex iaIICT6- Intrinsically safe comply with requirement of GB3836·4-83;
Ex dIIBT4-Flameproof comply with requirements of GB3836·2-83. Lighting protection
Specification:
Name | Throw-in Type Liquid Level Transmitter Level Transducer |
Pressure range | 0-0.5~200mH2O |
Accuracy | 0.2%FS; 0.5 %FS |
Supply voltage | 24VDC |
Output | 4-20mA (2 wire), RS485, 4-20mA with HART protocol |
Operating temperature | -40~85ºC (medium cannot be solid) |
Protection grade | IP68 |
Overload | 150%FS |
Stability | 0.2%FS/year |
Electric connector | Vented cable |
Installation type | M36*2, DN50 PN1.6 Flange (only for WP311 B) |
Pressure connector | M20*1.5, Optional |
Measured medium | All corrosive media compatible with 316L stainless steel or alumina ceramics |
Note: more detailed parameters, please feel free to contact us. |
Company Information:
Our service:
1. We have rich experience of OEM, factory can manufacture according to your request.
2. We could also send the goods which is labelling your brand name to your customer's warehouse directly.
3. We can offer you neutral packing without our logo and company information.
4. Warranty: We offer 12 months warranty for all of our products from shipping date;
5. You will enjoy free repair service for failures found within the warranty, if there are any problems of manufacturing quality;
6. We provide paid repair services for instrumentation damages beyond the warranty period or not arising from manufacturing quality problem.
Shanghai Wangyuan Instruments of Measurement Co., Ltd. is a high-tech enterprise level company specializing in industrial process control technology and products. We offer a complete product line of pressure, temperature, flow and indicator. Our products and services comply with the professional standards of CE, ISO 9001, RoHS, Explosion proof and CPA.
Our main products are including Pressure transmitters, Pressure transducers, Pressure sensor, Level Transmitter, Differential pressure transmitter (DP transmitter), Temperature transmitter, Flow meter, Intelligent indicator, Control instrument, Paperless recorder, Pressure switch and etc.
Our products are applying in the fields like food & beverage plant, water and waste water treatment, oil & gas, electric power, scientific research, ocean, boiler, coal mine, forklift weighing system HVAC systems, CNG & LNG, air condition, fuel pressure measurement and other process control industries.

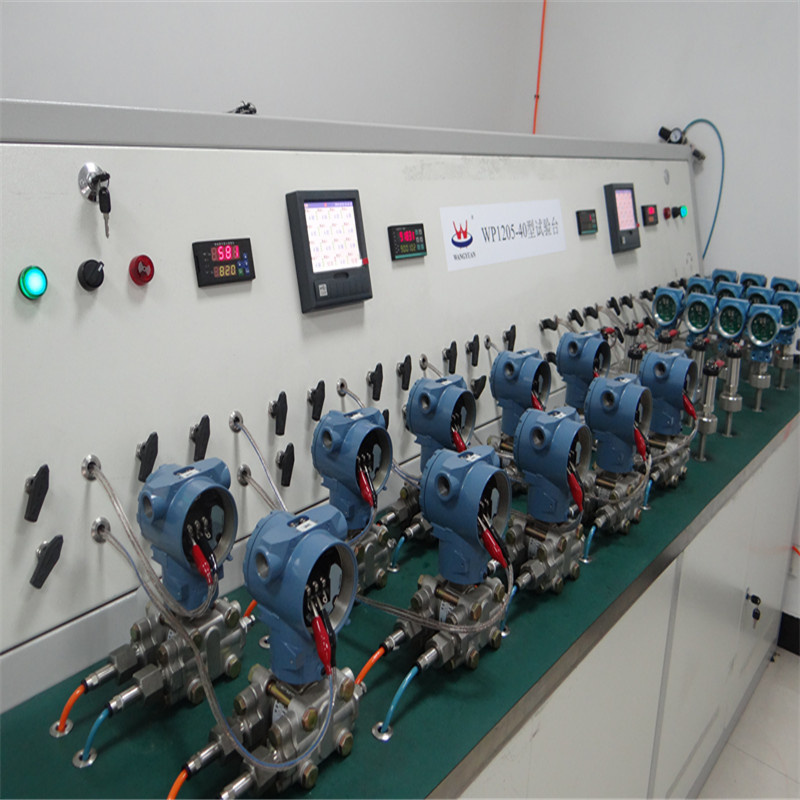

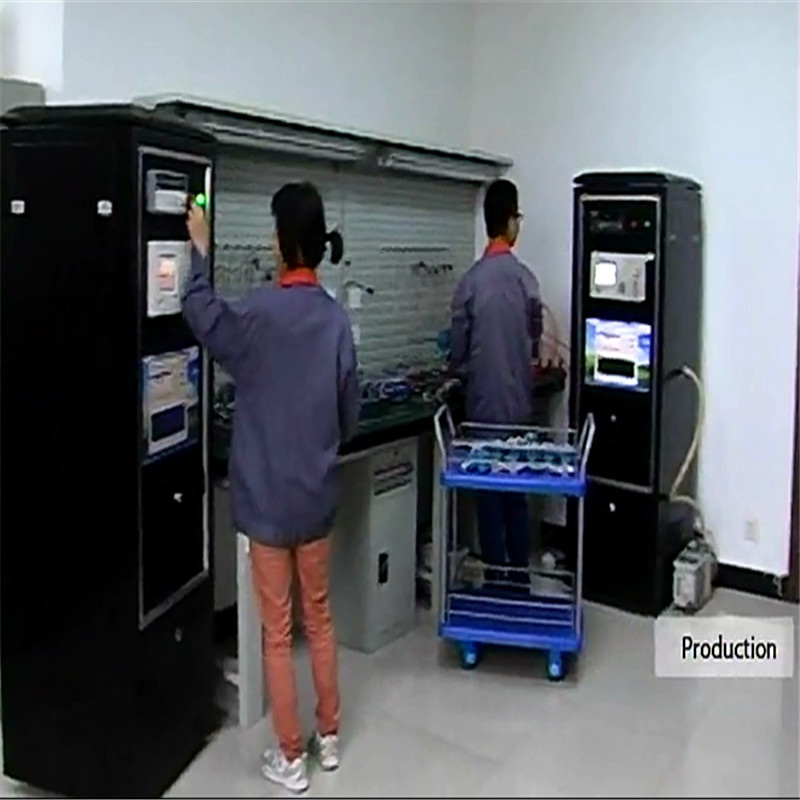

In addition, with our highly skilled and experienced team of professional engineers and technicians we can provide integrated research and development services that rank us at the top of our industry. All products are thoroughly tested in-house with our vast array of calibration and special testing equipment. Our testing process is conducted in accordance with a strict quality control system.
