110kv 160kn Suspension Insulator, Composite Insulator

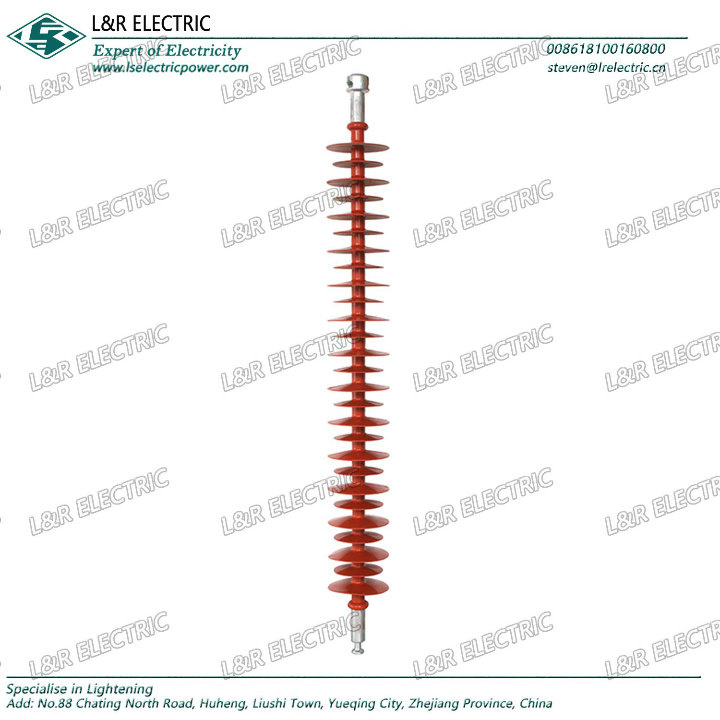

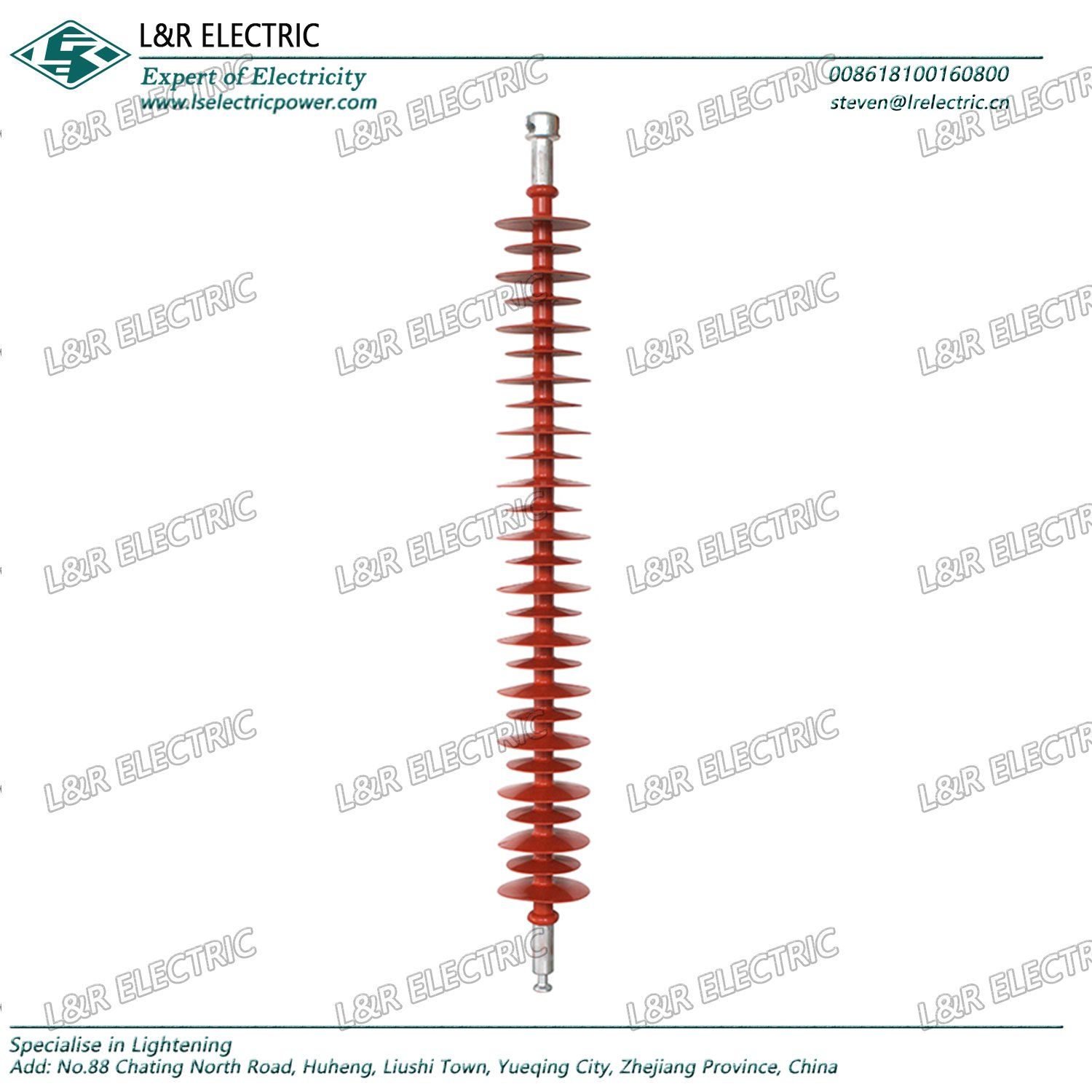

Name: 110kv 160kn Suspension Insulator, Composite Insulator
Brand: all-electronics-online.com
SKU: 836246365
Availability: InStock
Rating: 4.6 (104 reviews)

Price:	US $ 23.97-24.31/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FXBW-110/160
Housing:	Composite Silicone Rubber
Edn Fitting:	Galvanized Steel
Application:	High-voltage
Material:	Composite Polymer
Structure:	Suspension Insulator
Type:	B Type Insulator

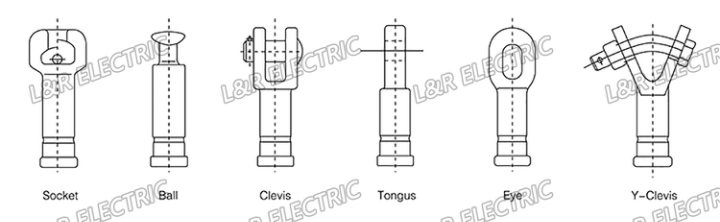

Connection Method:	Socket Ball Ended
Color:	Red or Grey
Brand:	L&R

Product Description

Application for suspension insulators

Composite tension insulators are often used in overhead power line, working as devices to provide insulation in
between conductor and transmission poles, with the help of hardware fittings.

Parameters

Product Model	Rated Voltage (KV)	Rated Mechanical bending load(kN)	Structure Height (mm)	Minimum Arc distance (mm)	Minimum creepage distance (mm)	Diameter of shed (mm)	Lightning impulse withstand voltage (peak kV)	P.F. 1min wet withstand voltage (kV)	Connect size
FXBW4-6/70	6	70	270 ±5	80	260	140/118	60	25	16
FXBW4-10/70	10	70	310±5	175	425	125/95	95	42	16
FXBW4-10/100	10	100	367±5	220	460	125/95	95	42	16
FXBW4-35/70	35	70	670±15	490	1350	138/128	230	95	16
FXBW4-35/100	35	100	670±15	450	1320	148/118	230	95	16
FXBW4-66/70	66	70	870(940) ±15	710	2248	148/118	410	185	16
FXBW4-66/100	66	100	870(940) ±15	710	2248	148/118	410	185	16
FXBW4-110/100	110	100	1240(1440) ±15	1000(1200)	3150(3860)	148/118	550	230	16
FXBW4-110/160	110	160	1340±15	1000	3380	148/118	550	230	R20
FXBW4-145/120	145	120	1490±30	1240	4123	148/118	725	355	16
FXBW4-220/100	220	100	2240 (2350) (2470) ±30	2020 (2080) (2210)	6450 (6760) (7150)	148/118	1000	395	16
FXBW4-330/160	330	160	2990 ±30	2600	9075	148/118	1425	570	R20
FXBW4-220/210(160)	220	210/160	2350 ±30	2000	6800	158/128	1000	230	R20
FXBW4-330/210(160)	330	210/160	2930 ±30	2660	8790	158/128	1425	570	R2O
FXBW4-500/210(160)	500	210/160	4490 ±30	4075	14860	195/158/128	2060	740	R20
