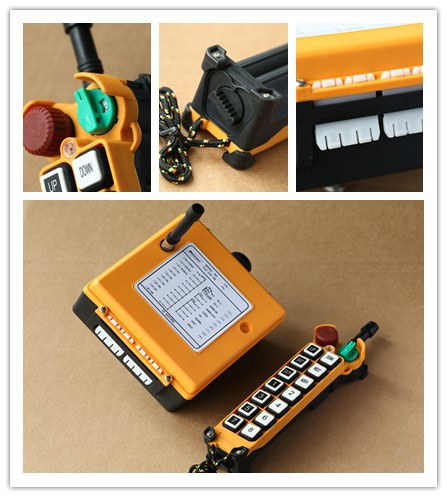

110V AC F21-14s Universal Radio Remote Control for Cranes
| Price: |
US $ 0.1/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Money Gram,Western Union |
110v ac F21-14S universal radio remote control for cranesCompany Advantage:
1. More than 10 years researching and exporting experience in Radio Remote Control industry.
2. More than 20 people R&D working team, have the ability to research and develop new product independently.
3. Have 15 production lines. we also have many production machines such Printing circuit board machine, SMT machine, automatic wave soldering machine, automatic soldering robot, etc. also have many testing machine.
4. Well and high quality control, all working process according to ISO9001:2008.
5. CE, FCC & ISO certificates.
6. OEM acceptable
1. Technical specifications
| Application | Overhead cranes, hoist ,chain hoist and other industrial machine. |
| Frequency | 310.0325~331.165Mhz |
| Frequency generation: | Crystal (plug in) |
| Channel | 80 |
| Channel Spacing | 0.2675MHz |
| Control motions | 14 |
| Control distance | Up to 100m |
| Certificates | CE, FCC, ISO |
| Number of push button | 14 Single speed push button |
| Unique code | Over 4.3billon unique ID codes . |
| Working temperature | -35°C ~ +80°C |
| Enclosure protection class | IP65 |
| Transmitter power | AA-size batteries |
| Receiver power | AC 380v/220V/110v/48v/ 36v/24v or AC/ DC12V |
| Output capacity | Full sealed relay output with 5 amperes |
| Warranty | 1 year |
| Material | glass fiber |
2. Standard configuration:

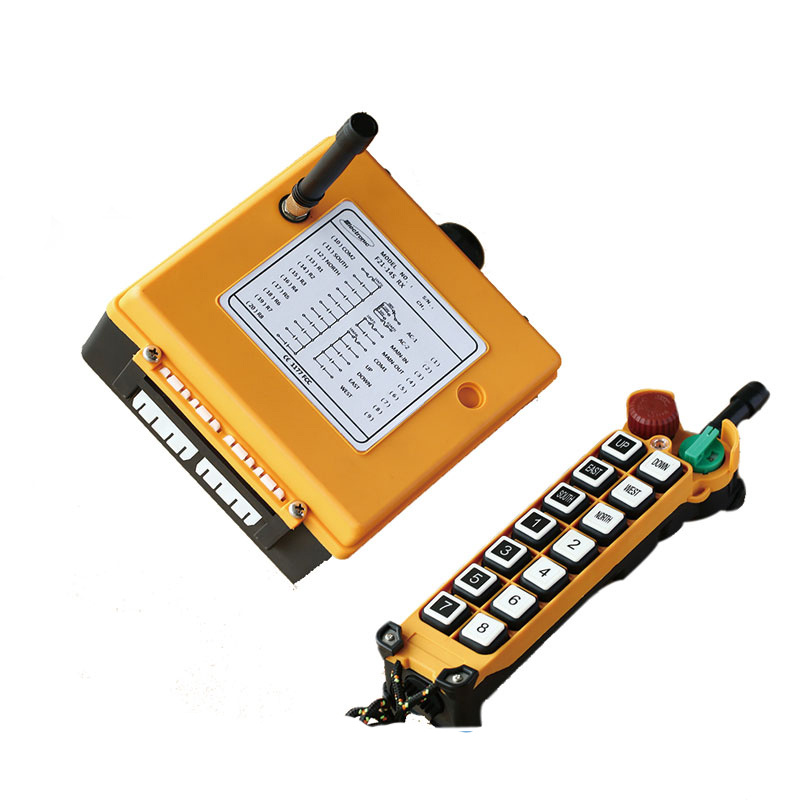

One transmitter ;
One receiver;
One 1m cable connect with receiver
One operation and maintain manual .
3. Products Application:
Widely applied for lifting equipments, construction machinery, cargo loading/unloading machines, water supply system, data transmission, the iron-smelting and steel-making, the automobile manufacturing, papermaking and chemical industry, steel structure processing, galvanization, shipbuilding, railroad, bridge, tunnel construction and other equipments and sites which can be worked by radio controls.
4. Products Features:*14 single speed push buttons +one EMGS button + one SWITCH
* control points up to 14
* With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
* with the Rotate key switch to guarantee the safety.
* set the internal functions by computer interface
* up/down,east/west,south/north push button can be set start ,close,speed up,jump strokes,ordinary etc
5. Notes:
The LED on the front of the transmitter indicates the condition of the batteries. It will flash green during operation if the battery power is sufficient, and will flash red if the battery power is low. If the LED is flashing red, or if the operation becomes erratic, or will only work from a short distance, replace both batteries with new AA alkaline batteries.
| Prod Model: |
F21-14S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
High Quality Wireless Remote Control Radio Remote |
| Control Distance: |
up to 100m |
| Control Motion: |
14 |
| Frequency Generation: |
Crystal |
| Structure: |
Glass-Fiber |
| Operation Frequency: |
310.0325-331.165 MHz |
| Certificates: |
CE, FCC, ISO9001:2008 |
| Unique Code: |
Over 4.3billon Unique ID Codes . |
| Working Temperature: |
-35°c___+80°c |
| Output Capacity: |
Full Sealed Relay Output with 5 Amperes |
| Application: |
Industrial Machinery |
| Signal Transmission: |
Radio Waves |
| Certification: |
CE |
| Universal: |
Not Universal |
| Transmission Distance: |
50-100m |
| Battery Type: |
AA Battery |
| Voltage: |
Optional |
| Material: |
Glass Fiber-Reinforced Nylon-6 |
Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.
Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.
Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.
We here sincerely hope to establish partnership with you and your esteem company.
