12v 15A high frequency car battery charger with reverse connect MEC1215

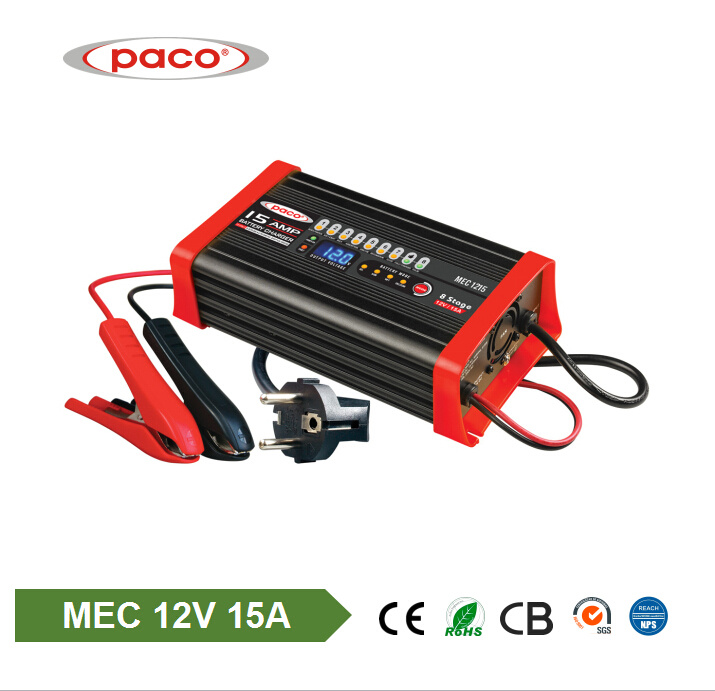

Product Picture:
Descriptions: ·Model: | MEC 1215 |
·Types of batteries: | Most types of lead acid batteries including WET, Calcuim, GEL and AGM. |
·Switchmode technology: | Yes |
·Polarity protection: | Yes |
·Output short protection: | Yes |
·Non battery link protection: | Yes |
·Over voltage protection: | Yes |
·Over temperature protection: | Yes |
·Cooling fan: | Automatic temperature controlled |
·Input voltage: | 220-240V AC, 50/60Hz / 110V AC, 50/60Hz. |
·Input power | 415W |
·Rated output: | 12V DC, 15, 000mA |
·Minimum start voltage: | 2.0V |
·The 7 stages are: | Desulphation; Soft Start; Bulk; Absorption; Battery Test; Recondition and Float. |
·Battery range: | 100-300Ah |
·Thermal protect (fan on): | 65ºC+/-5ºC |
·Efficiency: App. | 85%. |
·Compliant standards: | CB, CE, IEC60335, EN61000, EN55014 |
·Dimension (L×W×H): | 217×116×62mm |
·Weight: | 1.28kg |
FAQ:
Q. How do I know if the battery is charged?
A. The charger's FULLY CHARGED LAMP will illuminate (solid). Alternatively use a BatteryHydrometer A reading of 1.250 or
more in each cell indicates a fully charged battery.
Q. I have connected the charger properly but the 'CHARGING LAMP' does not come on?
A. In some cases batteries can be flattened to the point where they have very little or no
voltage. This can occur if a small amount of power is used for a long time, for example
a map reading light is left on for a week or more. MBC/MXC battery chargers are
designed to charge from as little as 12V charger 2.0 Volts and 24V charger 4.0 Volts
If the voltage is lower than 2.0 Volts and 4.0 Volts use a pair of booster cables to connect between
two batteries to provide more than 2.0 Volts and 4.0 Volts to the battery being charged. The charger
can then start to charge the battery and the booster cables can be removed.
Q. Can I use the charger as a power supply?
A. MBC/MXC battery chargers are designed to only supply power to the battery clips when
they are connected correctly to a battery. This is to prevent sparks during connection to
the battery or if connected incorrectly by mistake. This safety feature prevents the
charger from being used as a 'Power Supply'. No Voltage will be present at the clips
until connected to the battery.
Company Information:
Ligao has 28 years in power product R&D, production and rich of sales experience.
Ligao has cover an area of 30000 square meters and office building.
Ligao has a powerful R&D team and skilled production workers.
Ligao has an excellent R&D, production, debugging, RoHS and testing equipment.
Ligao products are exported to over 60 countries and regions abroad.
>>> Ligao established in 1986 is a professional manufacturer specializing in power product R&D, production, sales as one of
the high-tech enterprises. Products included solar charge controller, power inverter, seven-stage battery charger, converter,
power supply products etc. The company has obtained ISO9001-2008 quality system certification, GS certification,
CB certification and number of international authority product certifications and number of national product patents.
>>>The company has excellent R&D, production, debugging, RoHS and testing equipment to perform rigorous product
development, production and sales quality marketing system. Our products has 20 years industrial application, design
experience, senior experts responsible for the development, design mix with the wealth of practical experience and
advanced power technology together to create the power quality. Products are widely used at home and abroad,
are exported to 60 countries abroad and regions, and are well-trusted by domestic and foreign customers. Our company
specializes in the technical as the fundamental, product scale management as the aim, to stand out the outstanding
products specialty and technical expertise, to pursue the high-tech, high-quality, high efficiency, cost-effective of the
products, work hard for reach the international advanced level of the industry. The products have its excellent quality,
perfect sales service reputation at home and world market.
>>>"Professional, innovative, realistic" are the company business purpose, "good faith, innovation" are the concepts.
To provide the users with the skilled power technology, professional products, perfect services. In order to create
high-quality power supply, Ligao achieves the high power excellence, and let you step ahead. Let green energy for
the benefit of all mankind.
Welcome to the world of LIGAO!
Show room:
Exhibition:
Our Service:
l- The good construction warranty-1 years.
l- Your client satisfied on the right schedule and quality.
l- Your can get good reputation from your market and obtain more orders.
l- Our professional service before and after sale.
l- The free inverter samples after your first 3 orders.
l- The reasonable price.
l- Any questions from you are welcome and will be replied in 24 hours.
Certificate:
We have gained ISO9001: 2008, CE and ROHS Certificates, all are verified by SGS.
Contact Information:
Website: www. ligaopower. com/www. pacopower. com
Whatsup: + 86 13702455123
Tel: 0760-22785888-206
Fax: 0760-22785288
Contact Person: Kristen Huang
Ligao (Zhongshan) Electrical Appliance Co., Ltd has over 20 years of experience in design, manufacturing and marketing of solar supply products and electrical appliances. Conducted by ISO 9001: 2008, with CE, CB, RoHS approvals from SGS, we only provide high quality products.
Our products include:
- Power inverter
- Battery charger
- Automatic voltage regulator (stabilizer)
- Uninterrupted power supply (UPS)
- Car cooler and warmer
- Wireless digital doorbell
- TV antenna
Covering an area of 40, 000m2, with over 500 workers, our factory is capable of providing OEM and ODM services adequately. With our quality products, competitive prices and excellent services, we win trusts from our clients from the EU, the US, the Middle East, Africa, Asia, and South America. To learn more about us, contact us now.
