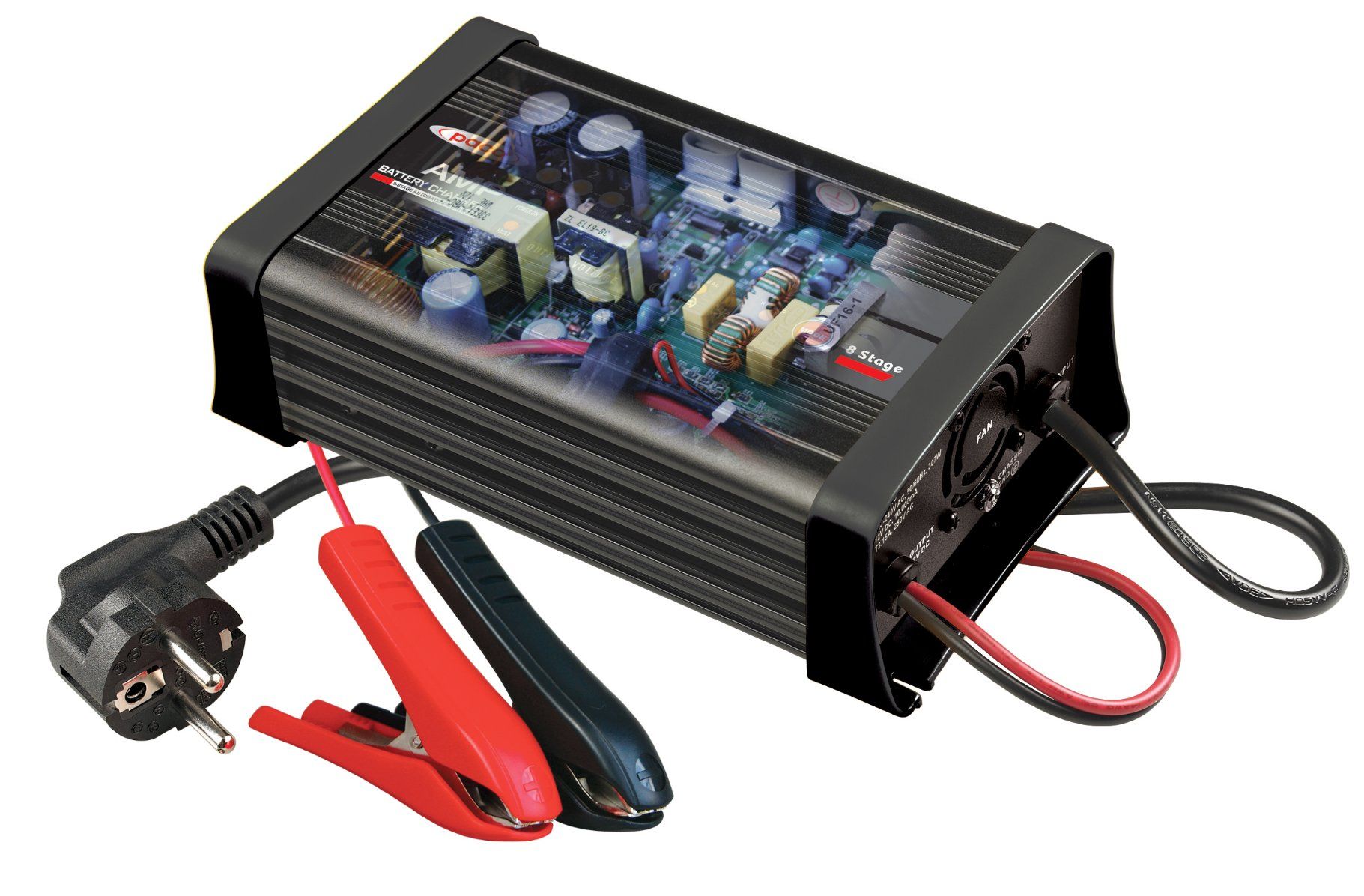

OEM Design 12V 5A Auto Portable 8-Stage Battery Charger

P/No.

MFC 1205

Type

8-stage automatic

Input  Voltage

220-240V~, 50Hz  / 110V~, 60Hz

Input Power

154W

Output Voltage/Current

12V DC,     5A

Minimum Start Voltage

2V

Back Drain

1 mA

Current Fuse Rating

250V AC, T3.15A

CHARGE CONTROL

Desulphation

Pulse charge up to 11V

Soft Start

Half the rated set current up to 12.5V

Bulk

5A up to
14.4V / 0.8A (SMALL)
14.4V(NORMAL)
14.7V(COLD)
14.4V(RECONDITION)

Absorption

Constant voltage until current drops to 0.75A or 0.15A (Small)

Battery Test

Monitors voltage for 180 seconds

Recondition

Max 16V / 0.75A or 0.12A for 30 min or 4h depening on battery voltage

Float

13.7V also with pulse feature

Pulse

12.6-14.4V / 0.8-0.4A (SMALL)
12.6-14.4V, 5-2A(NORMAL)
12.6-14.7V, 5-2A(COLD)
12.6-14.4V, 5-2A(RECONDITION)

Efficiency

App.85%

Short Protect

Short Circuit Protection

Polarity Reverse

Polarity Reverse Circuit Protection

Thermal protection

65ºC + / -5ºC

Link battery type mistake

Circuit Protection

Over Voltage Protection

The 12V charger will automatically protection if the voltage is higer
than 17.5V

Ambient Temperature

-20ºC to +50ºC, output power is reduced automatically at high temp.

Cooling Fan

Automatic temperature controlled

BATTERY RANGE

Deep Cycle

35-100Ah
1.2-14Ah (SMALL)

Types of Batteries

Most types of lead acid batteries including WET, MF,  Calcium,
GEL and AGM

Dimension( LxWxH)

197*116*62 mm

Weight

1.05 kg
