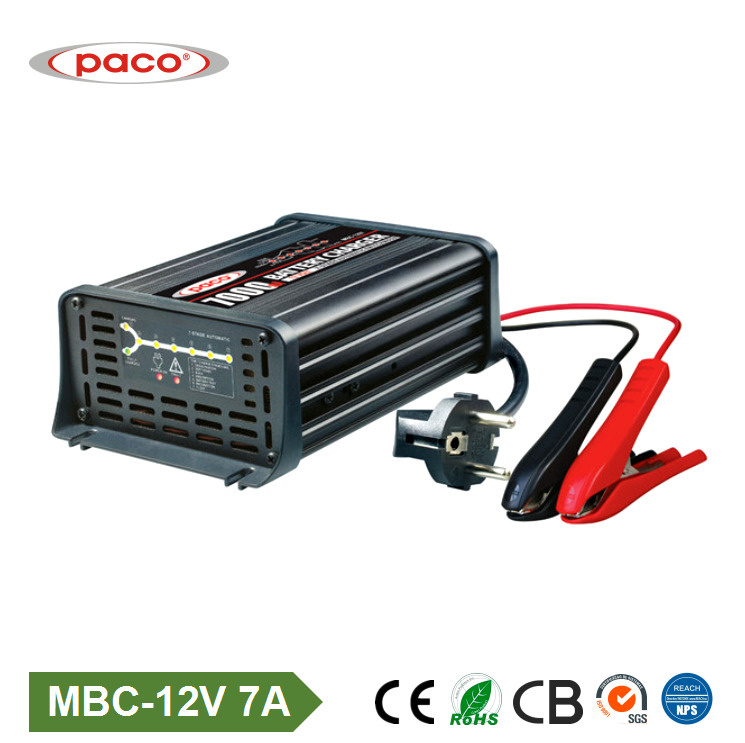

smart power 12v 7ah universal automatic battery charger
Product Discription7-Stage Automatic Charging
Detail
Specification
| P/No. | MBC 1207 |
| Type | 7-Stage automatic |
| Input Voltage | 220V-240V~, 50Hz 110V~, 60Hz |
| Input Power | 215W |
| Output Voltage / Current | 12V DC,7000mA |
| Minimum Start Voltage | 2V |
| Current Fuse Rating | 250V AC,T3.15A |
| CHARGE CONTROL | |
| Desulphation | Pulse charge up to 11V |
| Soft Start | Half the rated set current up to 12V |
| Bulk | 7000mA(up to 14.4V) |
| Absorption | Constant voltage until current drops to 1.05A |
| Battery Test | Monitors voltage for 90 seconds |
| Recondition | Constant current(1.05A)up to 16V for 4 hours. |
| Float | 13.8V also with pulse feature |
| Efficiency | App.85% |
| Short Protect | Short Circuit Protection |
| Polarity Reverse | Polarity Reverse Circuit Protection |
| Non battery link Protection | Circuit Protection |
| Link battery type mistake | Circuit Protection |
| Over Voltage Protection | 17.5V |
| Thermal Protect | 65ºC +/-5ºC |
| Cooling Fan | Automatic temperature controlled |
| BATTERY RANGE | |
| Deep Cycle | 50-140Ah |
| Tyoes of Batteries | Most types of lead acid batteries including Calcium, GEL and AGM |
| Dimension (L*W*H) | 190*115*62mm |
| Weight | 1.03Kg |
Packaging & ShippingPacking: 1 pcs in 1 box, 10 boxes in 1 master carton
(packing details can based on customers' need)
Shippment: 35-45 working days upon receiving deposit.
Company Information
l 20-year professional Factory Manufacturer in Zhongshan, China
l Product Range: Power Invertor, Automantic Voltage Regulator, Battery Charger, Converter and Solar Change Controller.
l Certificate: ISO 9001-2008,GS certification, CB certification, etc.
l 3-Year Alibaba Golden Supplier
LIGAO (ZHONGSHAN) ELECTRICAL APPLIANCE CO.,LTD is one of the most specialized manufacturers of electrical appliances with over 20 years of experience.
Blessed with about 800 employees and 35,000 m² production area, our company manages to offer products with high quality at competitive prices.
With design, exploitation, and production connectedly flowing into our operation procedure, we win trust from our customers.
Conducted by ISO9001:2000 and gain with UL,GS,CB,CE and E-mark approvals, we devote substantive fund and energy into importing and developing advanced product lines and testing technology for quality products, which achieves high reputation from all our customers.
We never stop developing new products.
OME and ODM orders are also welcome!!!
Contact us
FAQ
How do I know if the battery is charged?
The charger's FULLY CHARGED LAMP will illuminate (solid). Alternatively use a BatteryHydrometer A reading of 1.250 or more in each cell indicates a fully charged battery.
I have connected the charger properly but the 'CHARGING LAMP' does not come on?
In some cases batteries can be flattened to the point where they have very little or no voltage. This can occur if a small amount of power is used for a long time, for example a map reading light is left on for a week or more. MBC/MXC battery chargers are designed to charge from as little as 12V charger 2.0 Volts and 24V charger 4.0 Volts. If the voltage is lower than 2.0 Volts and 4.0 Volts use a pair of booster cables to connect between two batteries to provide more than 2.0 Volts and 4.0 Volts to the battery being charged. The charger can then start to charge the battery and the booster cables can be removed.
Can I use the charger as a power supply?
MBC/MXC battery chargers are designed to only supply power to the battery clips when they are connected correctly to a battery. This is to prevent sparks during connection to the battery or if connected incorrectly by mistake. This safety feature prevents the charger from being used as a 'Power Supply'. No Voltage will be present at the clips until connected to the battery.
