12V1a EU Plug Power Adapter with Rj11 Connector

Name: 12V1a EU Plug Power Adapter with Rj11 Connector
Brand: all-electronics-online.com
SKU: 837500625
Availability: InStock
Rating: 4.4 (85 reviews)

Price:	US $ 1.89-2.49/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

The power adapter is 12W wall mounted type adapter series .This product is adopting the
input range from 100VAC to 240VAC and supplies output voltage between 5VDC and 24VDC
that can satisfy the demands for various types of DC consumer electronic devices.You can
select a different AC pin (U.S., EU, UK, AU, Argentina) and Varied DC plug to meet custom
request.The effiency is not lower than 75% and designed accordion to UL/CE/FCC safty
regulations.

Features:

Universal Input 100-240 VAC

Output with Low Ripple Noise

Efficiency 75%min

Class II power

Protections:Short circuit/Overload/Over voltage

Fully enclosed plastic case

100% full load burn-in test

CE/FCC and RoHS Certified

Plug-in Style / Non-vented Case

Case Dimension (L*W*H mm): 70.2*39.7*68.9

Modified and Custom Design Available

2 years warranty

Iutput Characteristics

Input Voltage:	100~240V AC
Input Voltage Range:	90-264VAC
Rated Input Frequency:	50Hz or 60Hz single phase.
AC Input Frequency Range:	47Hz to 63Hz

Output Characteristics

Rated Voltage:	5V~24V optional
Output voltage regulation precision:	±5%
Loading regulation:	±1%
Ripple :	1% Vp-p max.
Transient Response :	0.5ms for 50% Load Change Typical
Protection:	Fold back Overcurrent Protection; Short Circuit Protection
Environmental Conditions	Operating temperature:	0ºC~40ºC
	Operating humidity:	20%~ 90% (Relative humidity).
	Storage temperature:	-20ºC ~ 70ºC .
	Storage humidity:	5%~ 95% . (Relative humidity).
	Cooling:	By natural air flow

Immunity

Dielectric Withstand Voltage ( HI-POT ):	2pin primary to secondary 3000Vac 5mA 1min
Dielectric Withstand Voltage ( HI-POT ):	3pin primary to secondary 1500Vac 5mA 1min
Safety Approvals:	CE /RoHS Certified and Designed according to UL/ standards

Reliability

MTBF (Mean-Time-Between-Failures) Calculation: MTBF shall be 50K hours of continuous operation at 20ºC, maximum load and normal voltage
MTBF Verification:	The MTBF shall be verified from life testing performed by factory Quality Department. The operating conditions are: 40ºC ambient temperature , sea level , both nominal line voltage ranges (230Vac) and a minimum load of 70% of the maximum load.

Applications
Consumer electronic devices,Telecommunication devices,Office facilities,Industrial equipments.

Prod Model:	FAS-12W-12V-W
Rated Output Voltage:	5V~24V
Rated Output Current:	0~2.5A
Dielectric Withstand:	Primary-Secondary 3000VAC
Efficiency:	75% Min
Usage:	Consumer Electronic Devices,Telecommunication Devi
Output Type:	DC
Connection:	Plug In
Bluetooth Standard:	N/a
Brand:	Fining

Our company supplies different kinds of power adapter products to global market with good quality and reasonable price, and very familiar with CE, FCC, UL, ETL standrads.

We have the following advantages:

1. Have cooperated with a lot of importers for more than 6 years.

2. Experenced in handling OEM orders.

3. Qiuck delivery time for decent orders.

4. Own designing team for new products development.

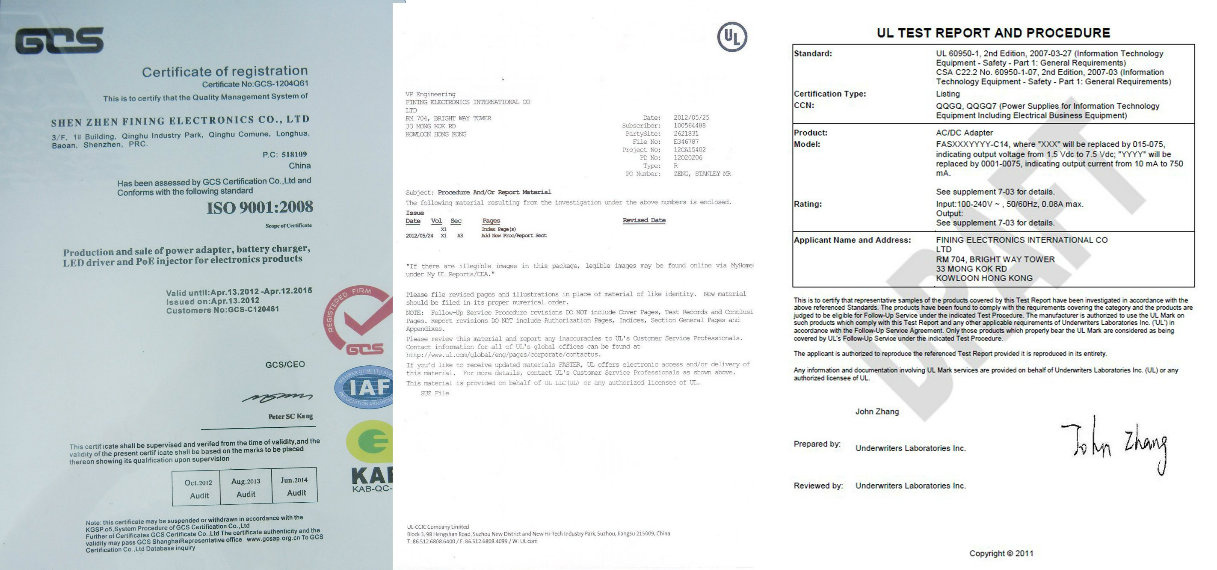

5. Factory audited by SGS, INTERTEK&WEINSPCTION.

6. Free samples could be provided.

We are power adapter manufacture and focusing on providing high efficiency and reliability power supplies. Our main products include PoE(Power over ehternet)products, custom AC/DC power adapters and LED Driver power supply. We can afford custom service according to your requirements.
