Guangzhou CBB Battery Technology Co., Ltd. >> 12V200ah Gel Deep Cycle Battery

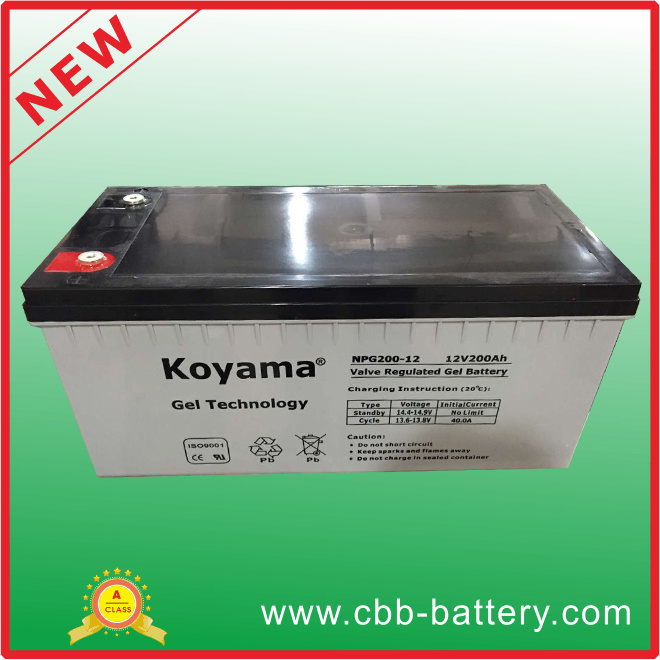

12V200ah Gel Deep Cycle Battery

12V200ah Gel Deep Cycle Battery
Price: US $ 185-210/Piece
Min Order: 50/Piece
Pay Type: L/C,T/T,Western Union

First Class quality 200ah 12V storage battery Inverter GEL battery

Factory price gel tech backup battery 200ah 12V

Long life deep cycle Gel battery 200ah 12V



Koyama®   Gel Battery using revolutionary hybrid gel technology have been designed specifically for back up and cyclic applications.

Koyama®  NPG Series GEL Batteries   are designed with a new hybrid technology that combines gelled electrolyte with AGM separators to provide the benefits of lower resistance and better thermal stability & Cycle life.





Technical details:

Model No.: NPG200-12
Size: L522*W240*H219*TH244
Weight: 58.8KGS
Voltage: 12V
Nominal Capacity: 200AH
Life year: 8-15 years



Model NoRated Voltage(V)Capacity (Ah)DimensionWeightTerminal Type
LengthWidthHeightTotal Heightkg
 mmmm mm mm
NPG200-1212V200ah52224021924458.8kgs



T5/L17




Contact Person: Judy Huang







Features
-Superior price advantage compared to traditional Gel technology

-High cycle life for service battery applications

-High cranking current for starting and winch applications

-Sealed, maintenance free construction

-Not susceptible to thermal runaway like traditional AGM technology

-Tolerate wide range of charging voltages

-Very low self discharge-can be left for long periods without charging

-Terminal voltage remains high under load

-Sizes from 24 to 250ah/10hr


Certificates: ISO9001&14001, CE, UL
Standard: JIS, DIN, IEC & BS6290-4



Specifications:



Voltage:-----2+6+12 Volt Nominal Plates Extra Heavy Duty

Plate Alloy---Virgin Pure Lead /1.6% Tin

Terminal---Copper Insert +Threaded Post

Container /Cover---ABS

Charge Voltage---Cycle 2.35VPC: Float 2.25 to 2.30Vpc@20C

Specific Gravity---1.280

Electrolyte---Sulphuric acid thixotropic gel

Vent---Self Sealing -2psi operation

Operating Temperature: -25 to +55(However we recommend that the batteries be operated in the temperature range of 20 to 30 C, to obtain full life and optimum performance.)



Applications

-UPS battery

-Communications and electric equipment battery

-Lighting equipment  battery

-railways battery

-Power generation battery

-Emergency lighting equipment battery

-solar system battery

-off-grid electrical systems battery

-Micro hydro systems battery

-Marine & boat battery





Model NO.NominalRatedDimensions(±2mm)WeightTerminal Type
VoltageCapactiy(Kg)
(V)(Ah)LengthWidthHeightTotal Height±5%
NPG24-1212241651261741797.8L6/T3
NPG26-1212261661751261268.5L2/T2
NPG33-12123319613015517910.1L7/T3/L4
NPG38-12123819716617417912.4L6/T3/L7
NPG42-12124219816617417413L7/T3/L3
NPG50-12125025813420020015.6L8
NPG55-12125522913820822617.5L4/T3
NPG65-12126535016717817820.3L9/T3/L4
NPG70-12127035016717817821.4L9/T3
NPG75-12127526016921123121.8L11/T3
NPG80-12128026016921121523.5T3/L11/L4
NPG85-12128533117421421925L12/T4
NPG90-12129030716921122727L13/T3
NPG100-121210033117421421930L12/T4
NPG120-12A1212033117421421932.6L12/T4
NPG120-121212040717421023334.8L14/T5
NPG150-121215048417124124143.8L16/T4
NPG160-121216053220621622148.5L17/T4
NPG180-121218052224021924455.8L17/T5
NPG200-121220052224021924458.8L17/T5
NPG220-121222052224021924461.4L17/T5
NPG250-121225052026822024571L17/T5
NPG180-6618030616822022627.3T5
NPG200-6620026018024725128.3T5
NPG220-6622032317822422929.8T5
NPG225-6622526018024725130.3T5
NPG200-2220017010633036713.3T5
NPG300-2230017115133036519.1T5
NPG400-2240021117632936726.3T5
NPG500-2250024117134936831.2T5
NPG600-2260030117533136638.2T5
NPG800-2280041017633036552.4T5
NPG1000-22100047217233835562.3T5
NPG1500-22150040135134237897.5T5
NPG2000-222000491351343383131T5
NPG3000-223000712353341382191T5

Prod Model: NPG200-12
Color: Gray
Weight: 58.8
Service Life: 10-12 Years
Technology: Gel Type
Battery Type: 12V200ah Gel Deep Cycle Battery
Warranty: 2 Years From B/L Date
Type: Lead-Acid Batteries
Usage: Solar Power System
Nominal Voltage: 12V
Discharge Rate: Low Discharge Rate
Shape: Square Battery
Rechargeable: Chargeable
Electrolyte: Gel
CBB Battery Technology Co Ltd is a large modern comprehensive power enterprise, specializing in production, R&D and sales of the full line of lead acid battery, with a factory area of 65mu and production area more than 30000m2. Our production capacity has reached more than 3 million KVAH per year.

We mainly produce VRLA battery, automotive battery, Motorcycle battery, Motive power battery, Tricycle battery, Electric vehicle battery and various plates thereof. All batteries are widely used in UPS, Power station, solar power system, telecommunication, vehicles, boats, motorcycle and other applications. All battery can meet a variety of standby, storage, deep cycle, starting, sports, new energy system and other power requirements.

In the past few years, by adopting a lot of advanced production lines and testing devices, we have developed to gain the competitive advantage in the field, which owns first class infrastructure, strict production management, unique know-how and special formula.

We attach importance to scientific and technological personnel, integrating production and research. With the efforts of professional experienced engineers, a well-trained management team and a lot number of skilled production workers, we have established the complete quality management system, which guarantees all battery quality is reliable and long-term stable. Our battery has been sold not only throughout China, but also many foreign countries, its quality have been well recognized by users both at home and abroad.

As one of the leading industrial battery manufacturers, we are keeping quality and environment protection first and foremost in our minds. With a proven track record of this dedication to protect both the earth, our employees for years has propelled us to be the industry leader in environmental protection while still maintaining the highest quality products on the market. With the recertification of Chinese Environment Ministry to Chinese battery industry in 2011, we have been becoming the best company on the environmental protection in South of China. We have been certified by IS09001, IS014001, CE, UL, RoHS, and OHSMS18001.

With the spirit of Unity, Development, Trust and Quality First, Our Team would offer you the best quality battery and services. It is our eternal pursuit to continuously meet all customer''s expectation and demands, with unremitting efforts to offer high-quality battery and excellent after-sales for all users at home and abroad.

Your any cooperation is highly appreciated
