Prod Model: |
TL12400 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: |
Lead-Acid Batteries |
Usage: |
Boat |
Nominal Voltage: |
12V |
Discharge Rate: |
High Discharge Rate |
Shape: |
Square Battery |
Rechargeable: |
Chargeable |
Product Description

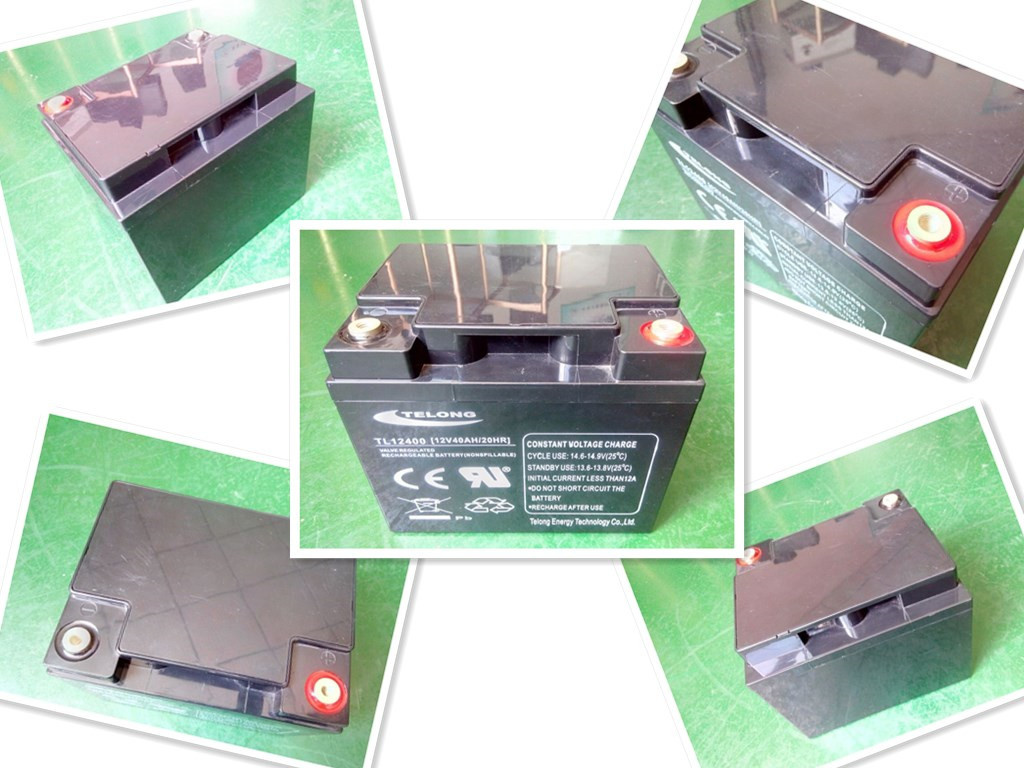

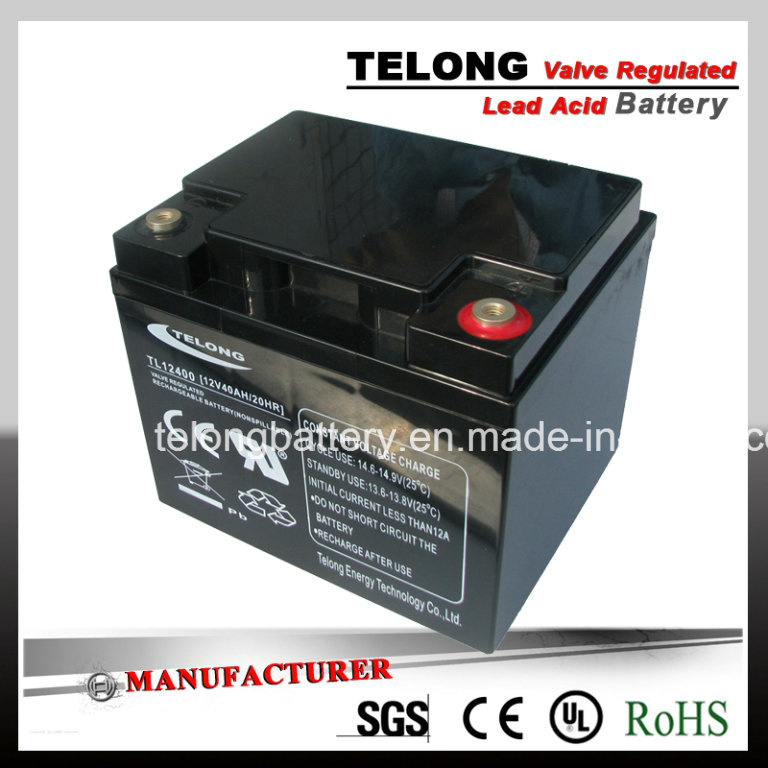

Model: TL12400Certificate: CE, UL, RoHS, MSDS, UN38.3Voltage: 12VCapacity: 40AhDimension: L197*W165*H170/TH170mmNet weight: 13KGPacking: 1PCS/CTN, 110PCS/PALLET Battery Construction:General Feature:
*Absorbent Glass Mat(AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance or water adding.
*Not restricted for air transport-complies with IATA/ICAO Special Provision A67.
*UL-recognized component.
*Can be mounted in any orientation.
*Computer designed lead, calcium tin alloy grid for high power density.
*Long service life, float or cyclic applications.
*Maintenance-free operation.
*Low self discharge.
Performance Characteristics:
Capacity 77°F(25ºC)
20 hour rate (2.1A 10.8V): 42Ah
10 hour rate (4A 10.5V): 40Ah
5 hour rate (6.8A 10.5V): 34Ah
1 hour rate (25A 9.6V): 25Ah
Internal Resistance
Full charged Battery77°F(25ºC):10mΩ
Capacity affected by Temperature (10 hour rate)
104°F(40ºC):102%
77°F(25ºC):100%
32°F(10ºC):85%
5°F(-15ºC):65%
Self-Discharge 68°F(20ºC)
Capacity after 3 month storage: 90%
Capacity after 6 month storage: 80%
Capacity after 12month storage: 60%
Max. discharge current77°F(25ºC): 400A(5S)
Charge (Constant Voltage)
Float 13.6 13.8 V/77 F/(25ºC)
Cycle:14.4 14.7 V/77°F/(25ºC)
Max. Current 10A

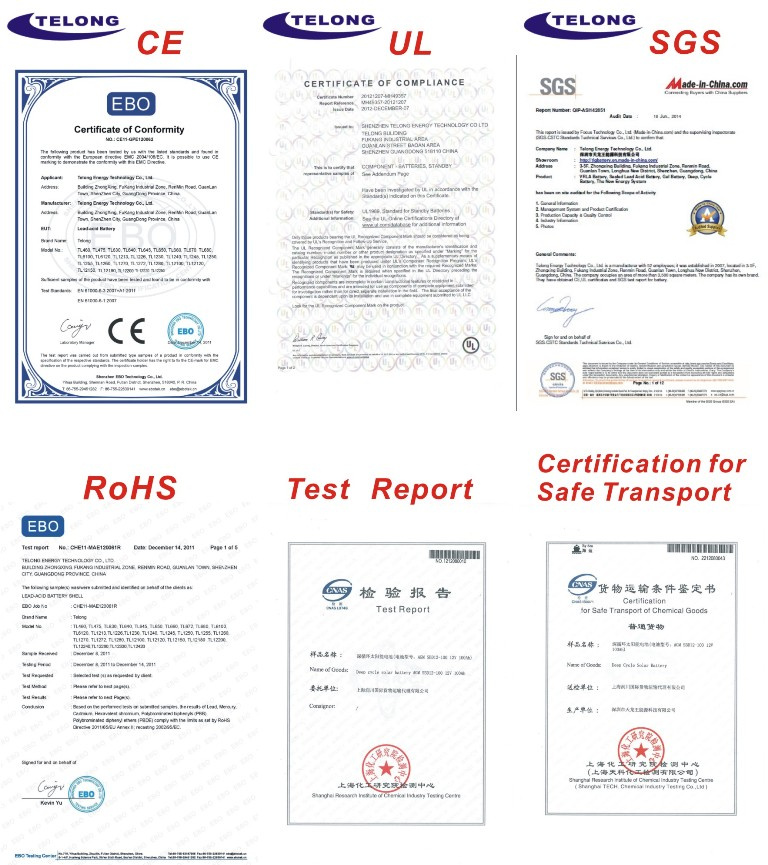

Certificate:
Contact us:
www.telongbattery.com
www.sztlg.com
http://telongbattery.en.made-in-china.com/ Battery Type | Nominal Voltage (V) | Nominal Capacity (Ah) | Dimension | Weight | Terminal Type |
Length | Width | Height | Total Height |
mm | in | mm | in | mm | in | mm | in | kg | pound |
TL1208 | 12 | 0.8 | 96 | 3.78 | 25 | 0.98 | 62 | 2.44 | 62 | 2.44 | 0.35 | 0.77 | T13/T9 |
TL1213 | 12 | 1.3 | 97 | 3.82 | 43 | 1.69 | 52 | 2.05 | 58 | 2.28 | 0.59 | 1.3 | F1 |
TL1220A | 12 | 2 | 143 | 5.63 | 24 | 0.94 | 65 | 2.56 | 65 | 2.56 | 0.57 | 1.26 | T10 |
TL1220B | 12 | 2 | 150 | 5.9 | 20 | 0.79 | 90 | 3.54 | 90 | 3.54 | 0.68 | 1.5 | T11 |
TL1222 | 12 | 2.2 | 70 | 2.76 | 47 | 1.85 | 101 | 3.98 | 107 | 4.21 | 0.75 | 1.65 | F1 |
TL1223A | 12 | 2 | 182 | 7.17 | 24 | 0.94 | 61 | 2.4 | 61 | 2.4 | 0.78 | 1.72 | T10 |
TL1223B | 12 | 2.3 | 178 | 7.01 | 35 | 1.38 | 61 | 2.4 | 67 | 2.64 | 0.94 | 2.07 | F1 |
TL1225A | 12 | 2.5 | 104 | 4.09 | 48 | 1.9 | 70 | 2.76 | 70 | 2.76 | 0.85 | 1.87 | F1/F2 |
TL1225B | 12 | 2.5 | 104 | 4.09 | 48 | 1.9 | 70 | 2.76 | 70 | 2.76 | 0.85 | 1.87 | T16 |
TL1226A | 12 | 2.6 | 70 | 2.76 | 47 | 1.85 | 101 | 3.98 | 107 | 4.21 | 0.85 | 1.87 | F1 |
TL1226B | 12 | 2.6 | 178 | 7.01 | 35 | 1.38 | 61 | 24 | 67 | 2.64 | 1 | 2.2 | F1 |
TL1228A | 12 | 2.8 | 104 | 4.09 | 48 | 1.9 | 70 | 2.76 | 70 | 2.76 | 0.9 | 1.98 | T16 |
TL1228B | 12 | 2.8 | 104 | 4.09 | 48 | 1.9 | 70 | 2.76 | 70 | 2.76 | 0.9 | 1.98 | F1/F2 |
TL1229 | 12 | 2.9 | 79 | 3.11 | 55.5 | 2.19 | 98.5 | 3.88 | 104 | 4.09 | 1.2 | 2.64 | F1 |
TL1232 | 12 | 3.2 | 134 | 5.28 | 67 | 2.64 | 61 | 2.4 | 67 | 2.64 | 1.2 | 2.64 | F1 |
TL1235 | 12 | 3.5 | 134 | 5.28 | 67 | 2.64 | 61 | 2.4 | 67 | 2.64 | 1.32 | 2.91 | F1 |
TL1240A | 12 | 4 | 90 | 3.54 | 70 | 2.76 | 101 | 3.98 | 107 | 4.21 | 1.28 | 2.82 | F2 |
TL1240B | 12 | 4 | 195 | 7.68 | 47 | 1.85 | 71 | 2.8 | 76 | 2.99 | 1.52 | 3.35 | F1 |
TL1245A | 12 | 4.5 | 90 | 3.54 | 70 | 2.76 | 101 | 3.98 | 107 | 4.21 | 1.47 | 3.24 | F2 |
TL1245C | 12 | 4.5 | 140 | 5.51 | 48 | 1.89 | 102 | 40.2 | 103 | 40.6 | 1.47 | 3.24 | F1/F2 |
TL1250 | 12 | 5 | 90 | 3.54 | 70 | 2.76 | 101 | 3.98 | 107 | 4.21 | 1.62 | 3.57 | F2 |
TL1255 | 12 | 5.5 | 140 | 5.51 | 48 | 1.89 | 102 | 40.2 | 104 | 4.09 | 1.75 | 3.86 | F1/F2 |
TL1260 | 12 | 6 | 151 | 5.94 | 51 | 2.01 | 93 | 3.66 | 99 | 3.9 | 1.7 | 3.75 | F2 |
TL1265 | 12 | 6.5 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.94 | 1.9 | 4.19 | F2 |
TL1270 | 12 | 7 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.94 | 2.05 | 4.51 | F2 |
TL1272 | 12 | 7.2 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.94 | 2.15 | 4.74 | F2 |
TL1275 | 12 | 7.5 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.94 | 2.2 | 4.85 | F2 |
TL1280 | 12 | 8 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.94 | 2.25 | 4.96 | F2 |
TL1290A | 12 | 9 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.94 | 2.5 | 5.51 | F2 |
TL12100B | 12 | 10 | 151 | 5.94 | 98 | 3.86 | 110 | 4.33 | 114 | 4.49 | 3 | 6.6 | F2 |
TL12120 | 12 | 12 | 151 | 5.94 | 98 | 3.86 | 95 | 3.74 | 101 | 3.98 | 3.4 | 7.49 | F2 |
TL12140 | 12 | 14 | 151 | 5.94 | 98 | 3.86 | 95 | 3.74 | 101 | 3.98 | 4.05 | 8.93 | F2 |
TL12150 | 12 | 15 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | 5 | 11 | F3 |
TL12170A | 12 | 17 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | 5.2 | 11.46 | F3 |
TL12200A | 12 | 20 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | 5.4 | 11.9 | F3 |
TL12220A | 12 | 22 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | 5.8 | 12.8 | F3 |
TL12240A | 12 | 24 | 166 | 6.54 | 175 | 6.89 | 125 | 4.92 | 125 | 4.92 | 7.6 | 16.8 | F4 |
TL12240C | 12 | 24 | 165 | 6.5 | 125 | 4.92 | 175 | 6.89 | 182 | 7.17 | 8.3 | 18.3 | F6 |
TL12260A | 12 | 26 | 166 | 6.54 | 175 | 6.89 | 125 | 4.92 | 125 | 4.92 | 8 | 17.6 | F4 |
TL12280A | 12 | 28 | 166 | 6.54 | 175 | 6.89 | 125 | 4.92 | 125 | 4.92 | 8.3 | 18.3 | F4 |
TL12280C | 12 | 28 | 165 | 6.5 | 125 | 4.92 | 175 | 6.89 | 182 | 7.17 | 9 | 19.8 | F6 |
TL12300A | 12 | 30 | 166 | 6.54 | 175 | 6.89 | 125 | 4.92 | 125 | 4.92 | 8.8 | 19.4 | F4 |
TL12330A | 12 | 33 | 195 | 7.68 | 130 | 5.12 | 155 | 6.1 | 180 | 7.09 | 10.2 | 22.5 | F7 |
TL12400A | 12 | 40 | 197 | 7.76 | 165 | 6.5 | 170 | 6.69 | 170 | 6.69 | 12.8 | 28.2 | F4 |
TL12420A | 12 | 42 | 197 | 7.76 | 165 | 6.5 | 170 | 6.69 | 170 | 6.69 | 13.2 | 29.1 | F4 |
TL12450A | 12 | 45 | 197 | 7.76 | 165 | 6.5 | 170 | 6.69 | 170 | 6.69 | 13.5 | 29.7 | F4 |
TL12500A | 12 | 50 | 257 | 10.1 | 132 | 5.2 | 200 | 7.87 | 200 | 7.87 | 16 | 35.3 | F4/F11 |
TL12500B | 12 | 50 | 250 | 9.84 | 160 | 6.3 | 178 | 7.01 | 197 | 7.76 | 15.8 | 34.82 | F5 |
TL12550A | 12 | 55 | 229 | 9.02 | 138 | 5.43 | 208 | 8.19 | 212 | 8.35 | 17.4 | 38.3 | F11 |
TL12550C | 12 | 55 | 229 | 9.02 | 138 | 5.43 | 208 | 8.19 | 227 | 8.94 | 16.2 | 35.7 | F5 |
TL12600A | 12 | 60 | 250 | 9.84 | 160 | 6.3 | 178 | 7.01 | 197 | 7.76 | 18 | 39.7 | F5 |
TL12600B | 12 | 60 | 259 | 10.2 | 168 | 6.61 | 208 | 8.19 | 214 | 8.43 | 18.5 | 40.8 | F17/F21 |
TL12650A | 12 | 65 | 350 | 13.78 | 167 | 6.57 | 179 | 7.05 | 179 | 7.05 | 19.6 | 43.2 | F5 |
TL12750A | 12 | 75 | 258 | 10.2 | 166 | 6.54 | 206 | 8.11 | 210 | 8.27 | 22 | 48.3 | F11 |
TL12750B | 12 | 75 | 258 | 10.2 | 166 | 6.54 | 206 | 8.11 | 235 | 9.25 | 22 | 48.5 | F9 |
TL12750C | 12 | 75 | 260 | 10.2 | 169 | 6.65 | 208 | 8.19 | 212 | 8.35 | 22.5 | 49.6 | F21 |
TL12750E | 12 | 75 | 260 | 10.2 | 169 | 6.65 | 208 | 8.19 | 228 | 8.98 | 22 | 48.5 | SAM |
TL12800A | 12 | 80 | 350 | 13.78 | 167 | 6.57 | 179 | 7.05 | 179 | 7.05 | 22 | 48.5 | F5 |
TL12900A | 12 | 90 | 306 | 12.1 | 169 | 6.65 | 208 | 8.19 | 212 | 8.35 | 26.5 | 58.4 | F21 |
TL121000A | 12 | 100 | 328 | 12.92 | 171 | 6.74 | 214 | 8.43 | 220 | 8.66 | 30.5 | 67.2 | F5 |
TL121000C | 12 | 100 | 328 | 12.92 | 171 | 6.74 | 214 | 8.43 | 234 | 9.21 | 28.2 | 62.2 | SAM |
TL121150A | 12 | 115 | 328 | 12.92 | 171 | 6.74 | 214 | 8.43 | 220 | 8.66 | 32.5 | 69.42 | F5 |
TL121200A | 12 | 120 | 410 | 16.14 | 176 | 6.93 | 227 | 8.94 | 227 | 8.94 | 35.5 | 78.2 | F5 |
TL121200C | 12 | 120 | 410 | 16.14 | 176 | 6.93 | 227 | 8.94 | 240 | 9.45 | 33.5 | 73.8 | SAM |
TL121340 | 12 | 134 | 341 | 13.4 | 173 | 6.81 | 283 | 11.1 | 288 | 11.3 | 40 | 88.2 | F12 |
TL121500A | 12 | 150 | 482 | 19 | 170 | 6.69 | 242 | 9.53 | 242 | 9.53 | 44.5 | 98.1 | F5 |
TL121800A | 12 | 180 | 522 | 20.55 | 238 | 9.37 | 218 | 8.58 | 222 | 8.74 | 55.5 | 122.3 | F12 |
TL122000A | 12 | 200 | 522 | 20.55 | 238 | 9.37 | 218 | 8.58 | 222 | 8.74 | 60 | 132.2 | F12 |
TL122200A | 12 | 220 | 522 | 20.55 | 238 | 9.37 | 218 | 8.58 | 222 | 8.74 | 62 | 136.6 | F12 |
TL122250A | 12 | 225 | 522 | 20.55 | 238 | 9.37 | 218 | 8.58 | 222 | 8.74 | 63 | 138.9 | F12 |
TL122500 | 12 | 250 | 520 | 20.5 | 269 | 10.6 | 220 | 8.6 | 224 | 8.82 | 69.5 | 153.2 | F12 |
