150cm Prime Focus Satellite Dish Antenna

Name: 150cm Prime Focus Satellite Dish Antenna
Brand: all-electronics-online.com
SKU: 764357375
Availability: InStock
Rating: 4.6 (149 reviews)

Price:	US $ 20.00-25.00/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Set
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

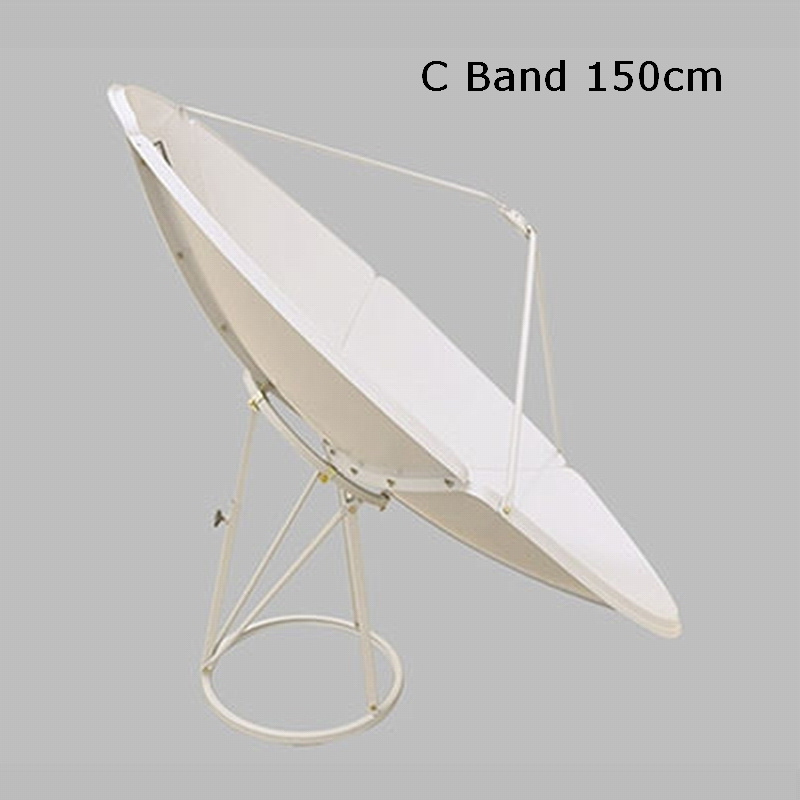

C Band 150cm Prime Focus Satellite Dish Antenna

Features:
1. Suitable for global DTH market.
2. High gain, high precision to get best signal;
3. Easy installation;
4. Advanced surface treatment technics protect the products againt rust.

Specifications
Model	CHW-C150
Diameter	150cm
KU - Band Gain @11.95 GHz	32.8 dBi
F/D Ratio	0.385
Focus Length	57.8cm
Panel (Sector Divided)	6
Material	Steel
Finish	Polyester Powder Coating
Color	Grey, Cool Grey or as request
Mounting
Mounting Type	Ground Mount
Elevation Angle Range	5° ~ 90°
Azimuth	0° ~ 360°
Material	Steel / Galvanized Steel
Finish	Polyester Powder Coating
Color	Grey, Cool Grey or as request
Envoirnment
Operational Winds	25m/sec
Reset Winds	40m/sec
Survival Winds	60m/sec
Ambient Temperature	-40°C ~ +60°C
Relative Humidity	0 ~ 100 %

Prod Model:	CHW-C150
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	TV Antenna
Operating Wavelength:	Microwave
Material:	Steel Plate
Directionality:	Directional Antenna
VSWR:	1.5~2
Usage Occasion:	Outdoor TV Antenna
