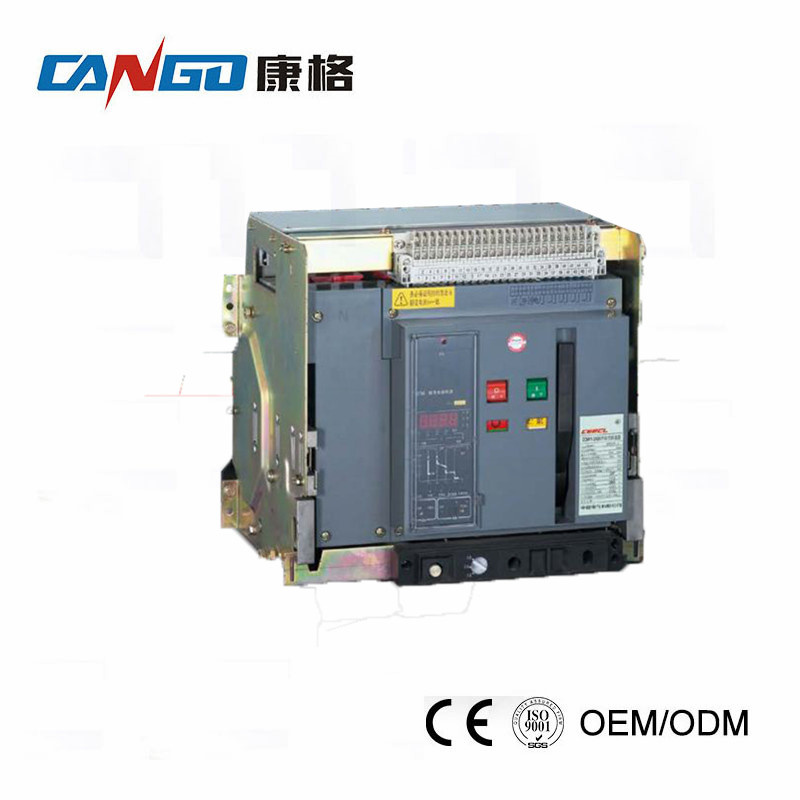

1600~6300A Universal Circuit Breaker Cow1-2000

Name: 1600~6300A Universal Circuit Breaker Cow1-2000
Brand: all-electronics-online.com
SKU: 734214302
Availability: InStock
Rating: 4.3 (132 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

COW1-2000 Universal Circuit Breaker
1. Compact design, high breaking capacity
2. With smart protection function, with higher accuracy class protection for choice, improve the reliablility of power supply.
3. With RS485 communication port and four remote control function.
4. No flash over distance.

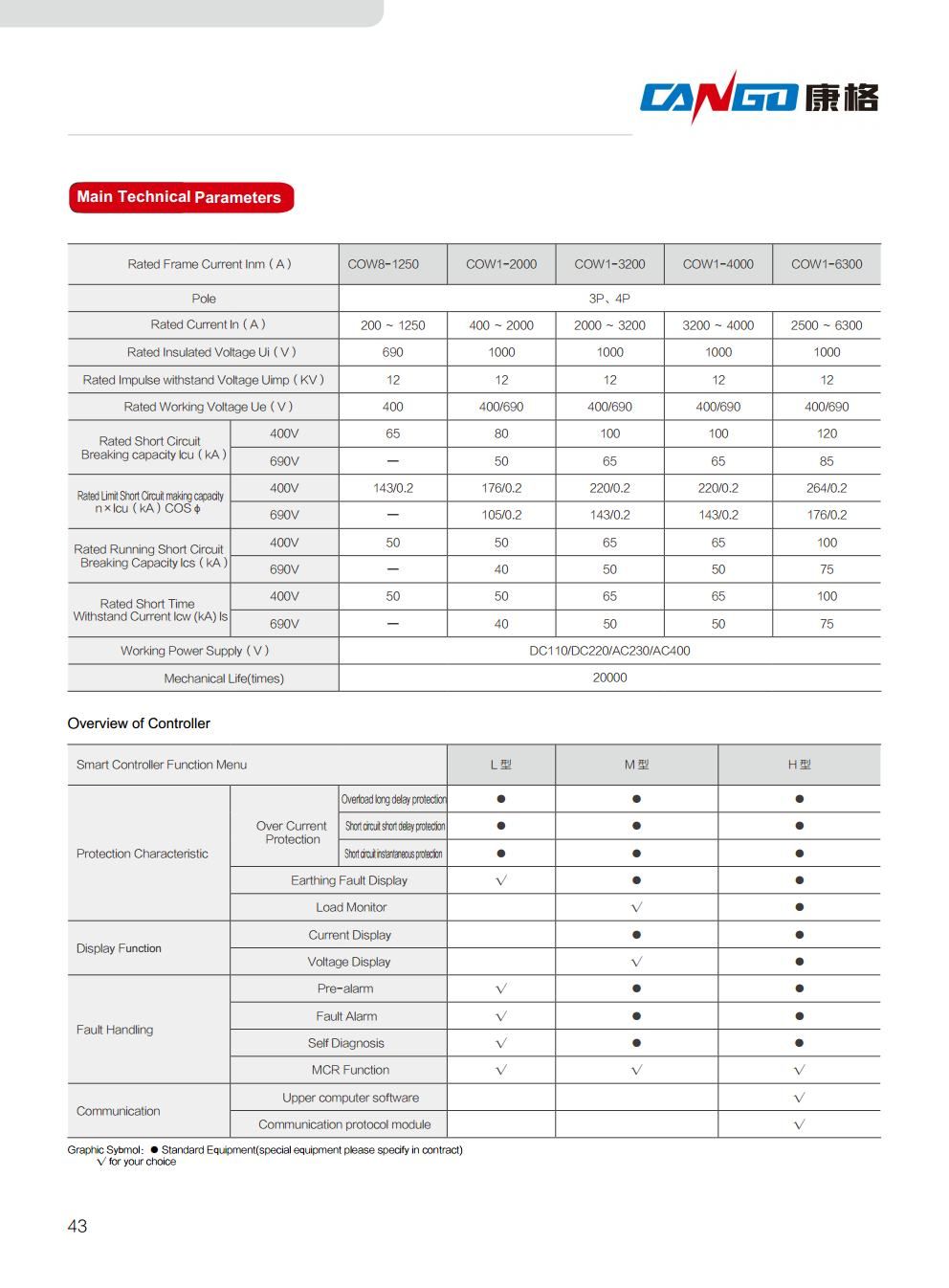

Technical Parameters of COW1-2000 Universal Circuit Breaker

Poles	3P 4P
Frequency	50/60Hz
Rated Current in(a)	400~2000A
Rated Insulated Voltage Ui(V)	1000
Flash Over Distance	0mm
Rated Impulse Withstand Voltage Uimp(V)	8000
Mechanical Life(times)	20000

Application of our COW series universal circuit breaker:

Our Factory:

Pls feel free to contact us.

Prod Model:	COW1-2000
Poles:	3p, 4p
Frequency:	50/60Hz
Rated Current In(a):	400~2000
Rated Insulated Voltage Ui(V):	690/1000
Rated Working Voltage Ue(V):	400/690
Rated Impulse Withstand Voltage Uimp(Kv):	12
Mechanical Life:	20000
Working Power Supply:	DC110/DC220/AC230/AC400
Frame Current(a):	2000
Type:	Temperature Fuse
Usaga:	Low Voltage
Breaking Capacity:	10ka
Standard:	IEC
