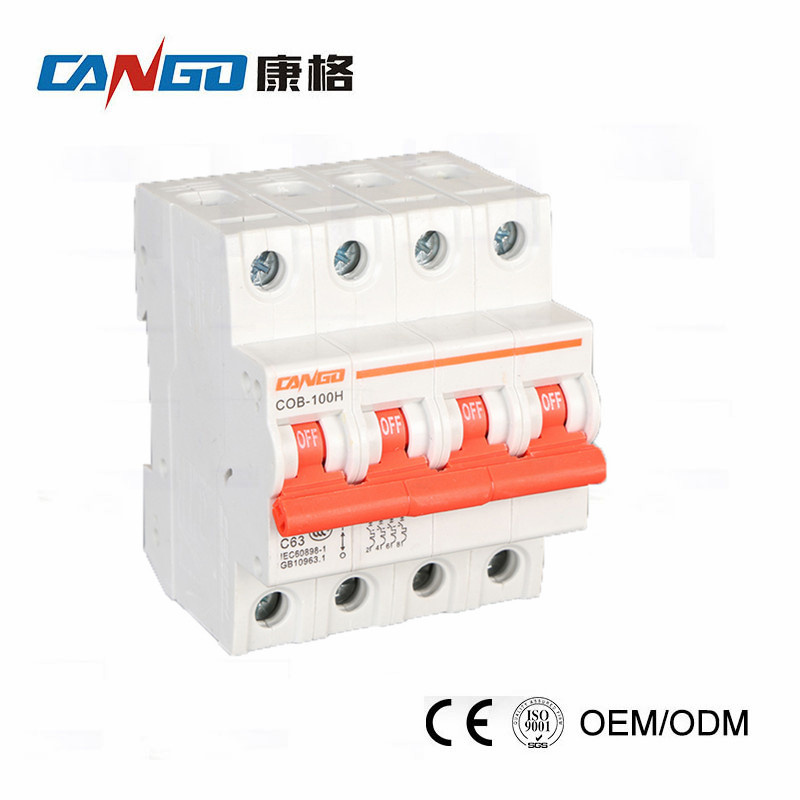

High Quality Miniature Circuit Breaker 100A MCB

Prod Model:	COB-100H
Poles:	1p 1p+N 2p 3p 3p+N 4p
Frequency:	50/60Hz
Rated Current In(a):	6, 10, 16, 20, 25, 32, 40, 50, 63, 80, 100
Rated Insulated Voltage Ui(V):	400
Rated Working Voltage Ue(V):	1p: 20/400 1p+N: 230 2p/3p/3p+N/4p:400
Rated Impulse Withstand Voltage Uimp(V):	4000
Instantaneous Trip Type:	H
Ics(Ka):	7.5
ICU(Ka):	10
Mechanical Life(Times):	20000
Type:	Temperature Fuse
Usaga:	Low Voltage
Breaking Capacity:	10ka
Standard:	IEC60898-1

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
