DC 2 Pole 3pole 4 Pole Moulded Case Circuit Breaker

Name: DC 2 Pole 3pole 4 Pole Moulded Case Circuit Breaker
Brand: all-electronics-online.com
SKU: 734137602
Availability: InStock
Rating: 4.6 (70 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	COMD-250PV
Poles:	2p 3p 4p
Frequency:	50/60Hz
Rated Current In(a):	16,20,25,32,40,50,63,80,100,125,160,200,250,6
Rated Insulated Voltage Ui(V):	1500
Rated Working Voltage Ue(V):	400/690
Rated Impulse Withstand Voltage Uimp(V):	8000
Test Voltage 1min:	3550V
Flash Over Distance:	Less Than 50mm
Frame Current(a):	125A,225A,250A,400A,630A
Standard:	IEC
Type:	Temperature Fuse
Usaga:	Low Voltage
Breaking Capacity:	10ka

Product Description

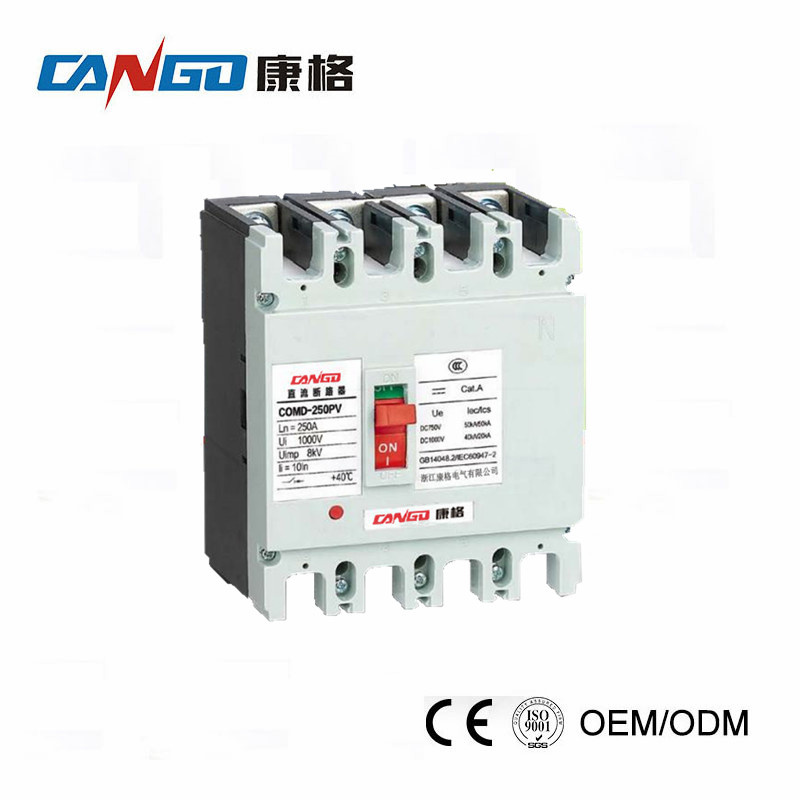

COMD-250PV DC Circuit Breaker
1. Rated current upto 1250A, operating voltage upto DC1500V;
2. Protection of PV modules from high DC reverse current hazards;
3. Protect PV modules from the hazards of AC feedback currents caused by inverter faults;
4. Each PV string in the state of the load can be safely cut out and isolated;
5. Can be remotely controlled by any one of the photovoltaic system from the system interrupt, even in the negative state can also be completed;
6. The state signal of the DC circuit breaker which is installed in each photovoltaic string can be clearly uploaded;
7. The user can save the installation fee and the copper series, greatly reduce the user cost;
8. Internet preset string connection can be avoided the problem for high temperature of external series inconformity GB14048.1-2006 main circuit terminal and circuit breaker need to reduce capacity more than 30%. It will be more safe and reliable.

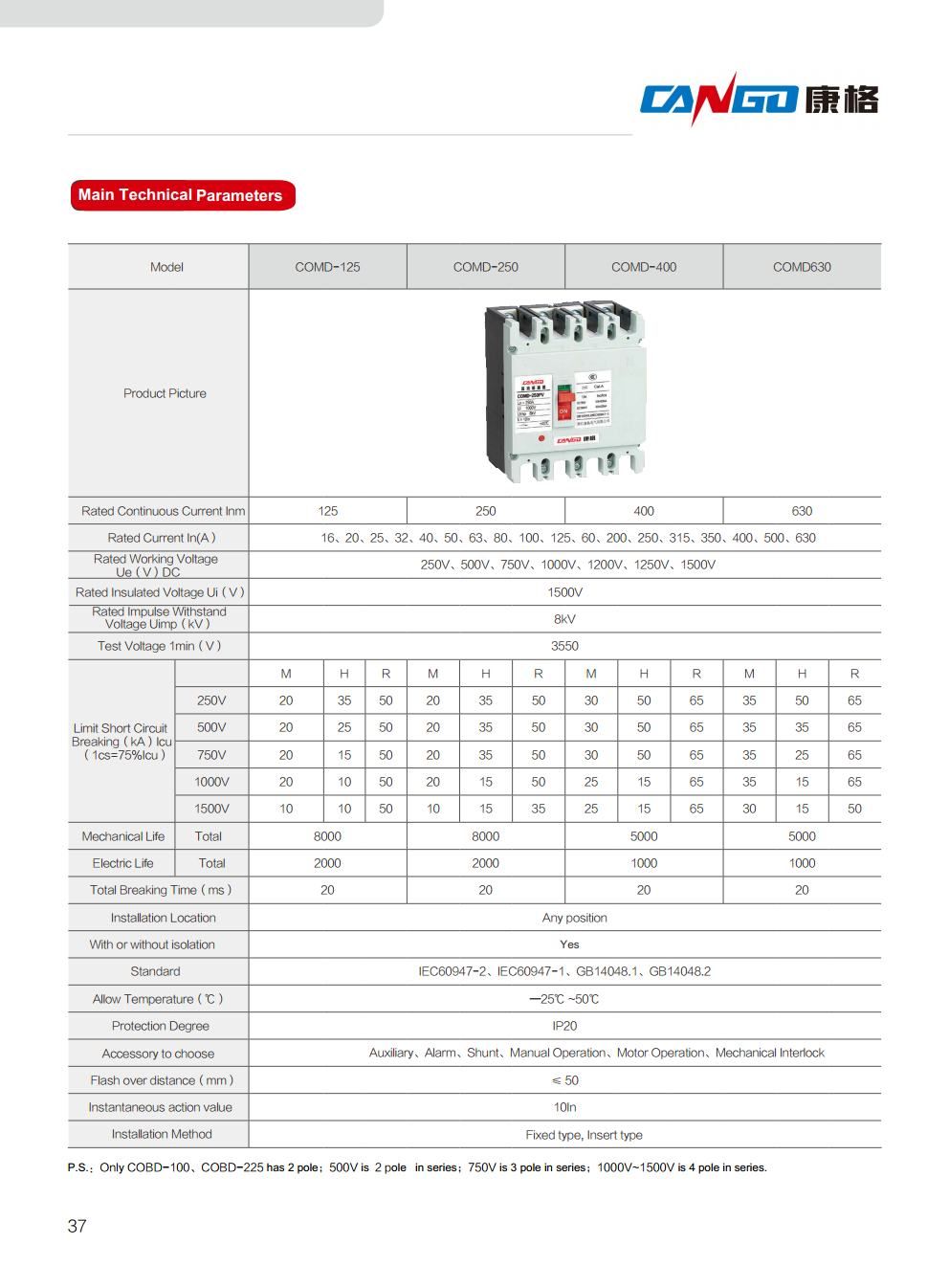

Technical Parameters of COMD series DC MCCB

Poles	2P 3P 4P
Frequency	50/60Hz
Rated Current in(a)	16~630A
Rated Insulated Voltage Ui(V)	1500
Flash Over Distance	≤50mm
Rated Impulse Withstand Voltage Uimp(V)	8000
Mechanical Life(times)	8000

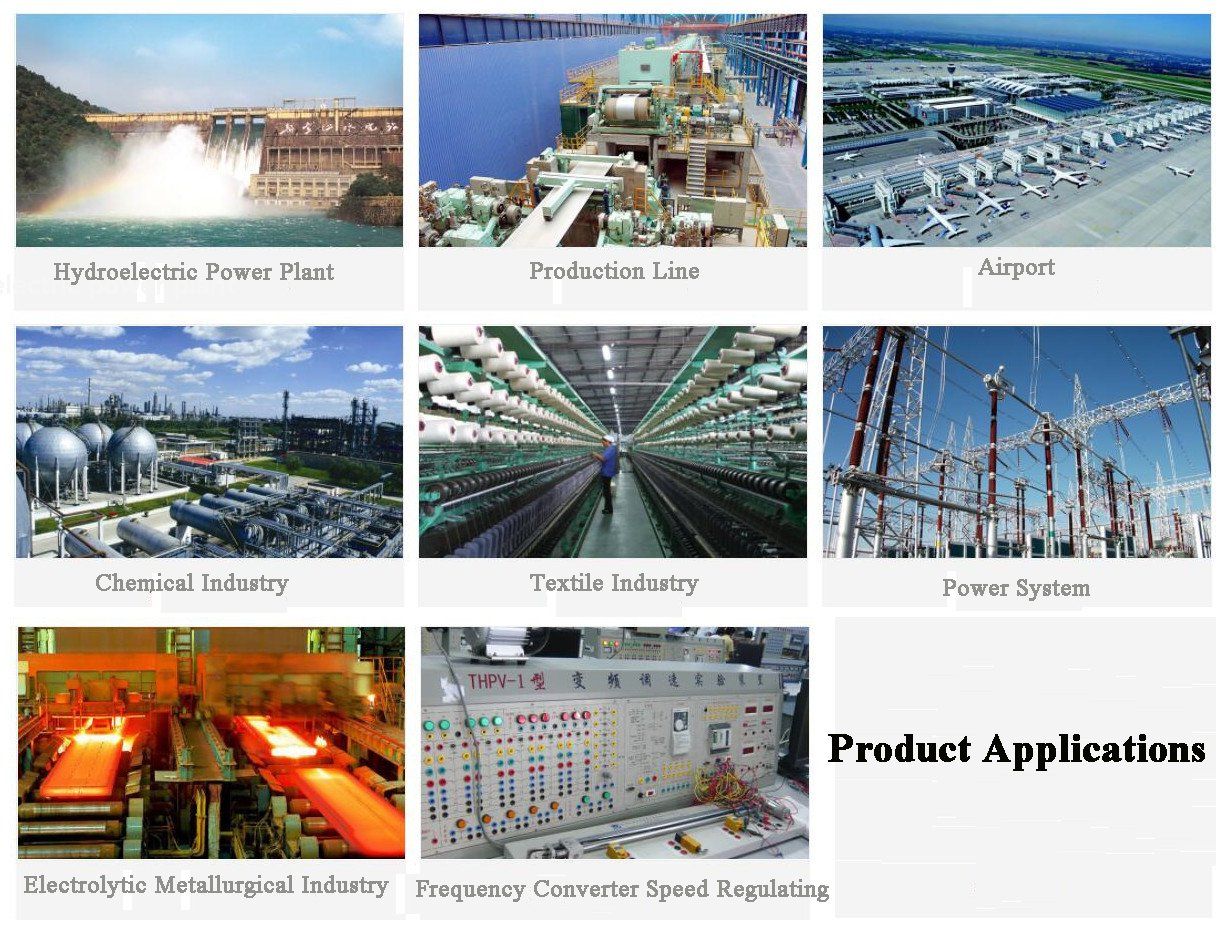

Application of our COMLE-100 MCCB:

Our Factory:

Pls feel free to contact us.
