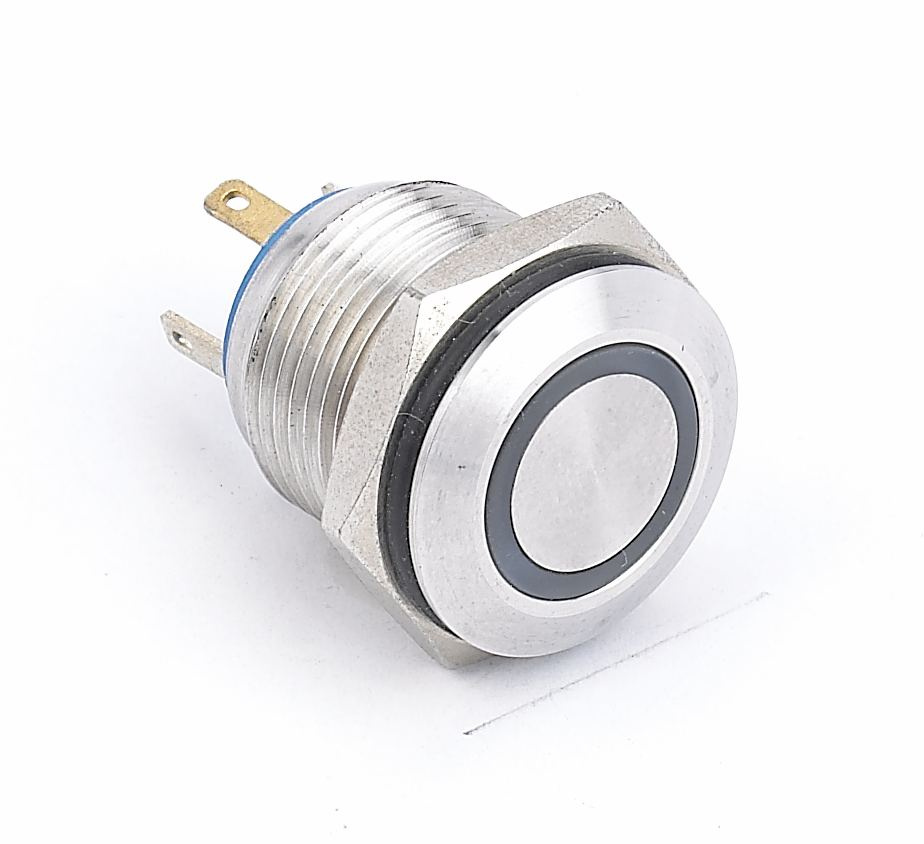

16mm Flat Round Ring LED Metal Push Button Switch

Name: 16mm Flat Round Ring LED Metal Push Button Switch
Brand: all-electronics-online.com
SKU: 787209245
Availability: InStock
Rating: 4.5 (61 reviews)

Price:	US $ 2.29-2.35/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

HBGQ16F-10E 16mm metal pushbutton switch

Item NO.:HBGQ16F-10E
Mounting Hole Size:Dia.16mm
Protection Degree:IP65,IK108
Lamp Color:Red / Green / Yellow / Orange / Blue / White
CE ROHS CERTIFICATE
The Crust Material:Stainless steel/Zn-al alloy/Nickel-plated brass

Packing Details:

We pack 40 pieces diameter 16mm switches into 1 foam box to protect them .We supply 40 pieces rubber rings and 1 piece guarantee card with these switches.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 20 boxes / 25 boxes into a 5 layers corrugated export carton.

About Us:

Yueqing Dahe Electric Co.,Ltd is a professional manufacturer of push button
Switch, signal lamp, buzzers, waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates.

Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries.

We can customize push button switch according to your specification, If you have any requirement or question,please feel free to contact us.

Tel :0086-577-62708000 Fax :0086-577-62708007

Item NO.		16mm metal pushbutton switch
Specification		Momentary/latching
Head Shape		Flat
Terminal Type		pin Terminal
Dielectric Strength		2000VAC
Operating Temperature		-20 degree ~ + 55 degree
Panel Thickness		1~10 mm
Torque		5~14Nm
Protection Degree		IP65,IK08
Material	Shade	PC
	Case	Stainless steel/Zn-al alloy/Nickel-plated brass
	Base	PBT
Lamp Specification	Type	Push Botton Switch
	Rated Voltage	2V /6V/12V/24V/36V/110V/220V
	Rated Current	About 15mA ~3 mA
	LED Color	Red /Green/Yellow/Orange/Blue/White
	LED Lifetime	50000 hours

Why Choose Us ?
1.More than10 years professional production & selling
push button switch experience .

2.Best Quality & Best Price .

3. Have perfect certificate: CCC/CE/ROHS/ISO90001.
If you need more informaion pls contact us :
Sharon
YUEQING DAHE Electric Co., Ltd
Address:  NO.180 Huxi Road,Huxi Village, Liushi Town, Yueqing City,Zhejiang,China
Tel: +86-577-62708000    Fax: +86-577-62708007  mobile:+8613868768789
Website: http://www.china-hban.com
Work time: 8:30-12:00  13:00-17:30(Except Sunday)

Prod Model:	HBGQ16F-10E
LED Color:	Red, Green, Yellow, Orange, White, Blue
Diameter:	16mm
Voltage:	2V, 6V, 12V, 24V, 36V, 110V, 220V
Termianl:	Pin Terminal
IP:	IP65, Ik08
Crust Material:	Stainless Steel/Nickel-Plated Brass
The Front Shape:	Flat Round
Operation Type:	Latching/Momentary
Configuration Contact:	1 No
Certificate:	CCC Ce RoHS TUV UL SGS ISO9001
Type:	Normal Open
Usage:	Reset Button
Kind:	Single-pole on-off Switch
Contact Type:	X
