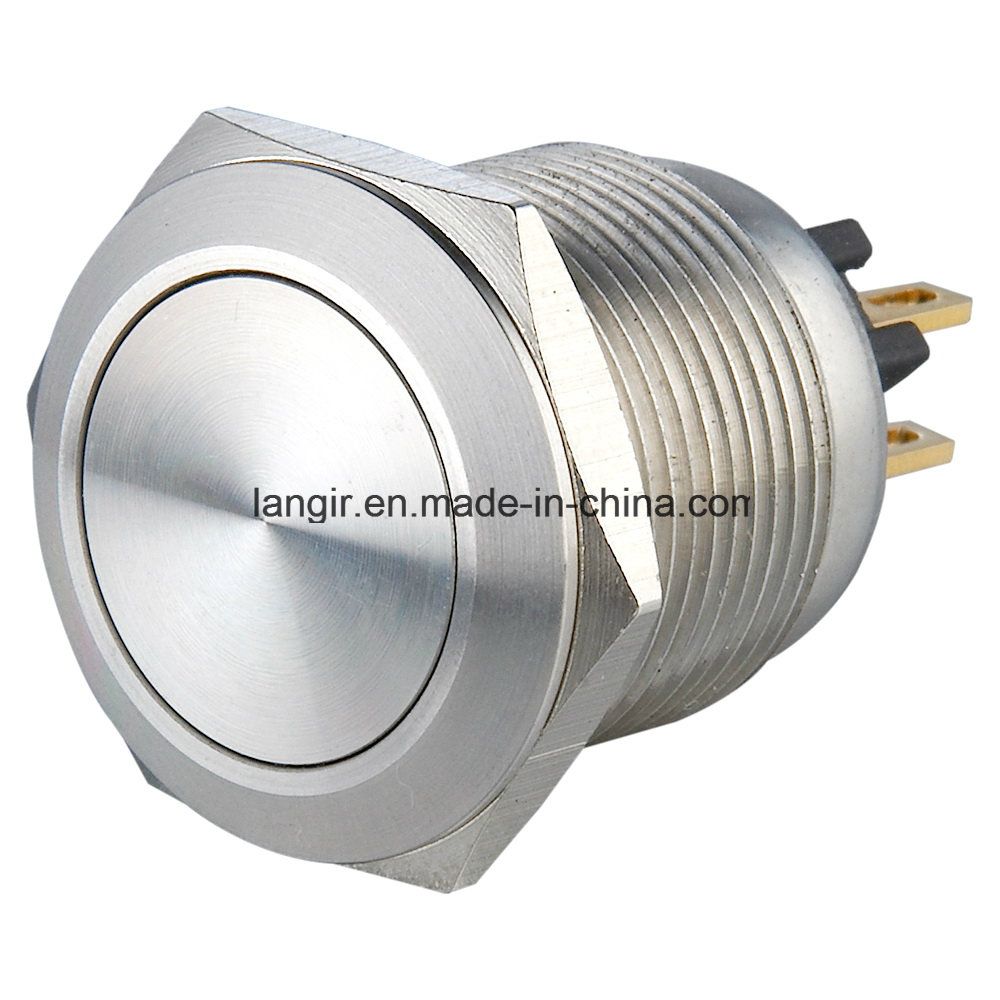

19mm Anti-Vandal Momentary Push Button Switch
| Price: |
US $ 4.39/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
L19M-F-S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Is Customized: |
Yes |
| Size: |
19mm |
| Material: |
Nickel Plated Brass,Stainless Steel |
| Function: |
Momentary 1no1nc |
| Usage: |
Reset Button |
| Kind: |
Single-pole on-off Switch |
| Brand: |
Langir |
Product Description
19mm pin terminal non-illuminated pushbutton switch
Distinctive features:
The Anti vandal switches offer attractive, robust and durable switches, available with different bushing diameters, actuator shapes, bushing and actuator materials.
Features:
Variety of Material
1, 000, 000cycles momentary
Anti-Vandal IK09/ Sealed IP65
Functions:Momentary: Means that when you push switch and then move your finger, the actuator will back to the original position.
| Type | L19M-F | L19M-F-R | L19M-F-D |
| Illuminated Options | Non-Illuminated | Ring | Dot |
| Max. Panel Thickness: | 0.394″ (10.0mm) |
| Terminal | Screw/ Pin(2.8×0.8) |
| Max. Switch Rating | 0.5A 24VDC |
| Contact Resistance | ≤100mΩ |
| Insulation Resistance | ≥1000mΩ |
| Dielectric Strengh | 2000VAC |
| Operation Temp. | -20°C ~ +55°C |
| Mechanical Life | 300,000cycles(max) |
| Electrical Life | 35,000cycles(min) |
| Contact Material | Gold Plated |
| Rear Nut Fixing Torque | 0.57Nm |
| Operation Pressure | approx. 5.5N |
| Protection | IP65/ IK09 |
| Material | Switch Assembly | UL94V-0 rated Polyamide (Nylon) |
| Tags | Copper Alloy |
| Terminals | Copper Alloy |
| Switch Body & Actuator | Stainless Steel/ Anodized Aluminum |
| Lens and Lens Body | Polycarbonate |
| Internal Seal | Silicone |
| O Ring | Nitrile |
| Color | Type | LED (ratings @ 20mA) |
| Color | R-Red | Y- Yellow | O- Orange | G- Green | B- Blue | W- White |
| Luminous Intensity (mcd) | 160 | 200 | 150 | 520 | 220 | 2000 |
| Forward Volatge | 1.8~2.6 | 2.8~3.6 |
| Illumination Voltage | no suffix No resistor fitted. An appropriate resistor must be series connected by the user. Voltages as above. |
| 6V/ 12V/ 24V/ 36V/ 110V/ 230V |
| Life | Approx. 40, 000hours |
