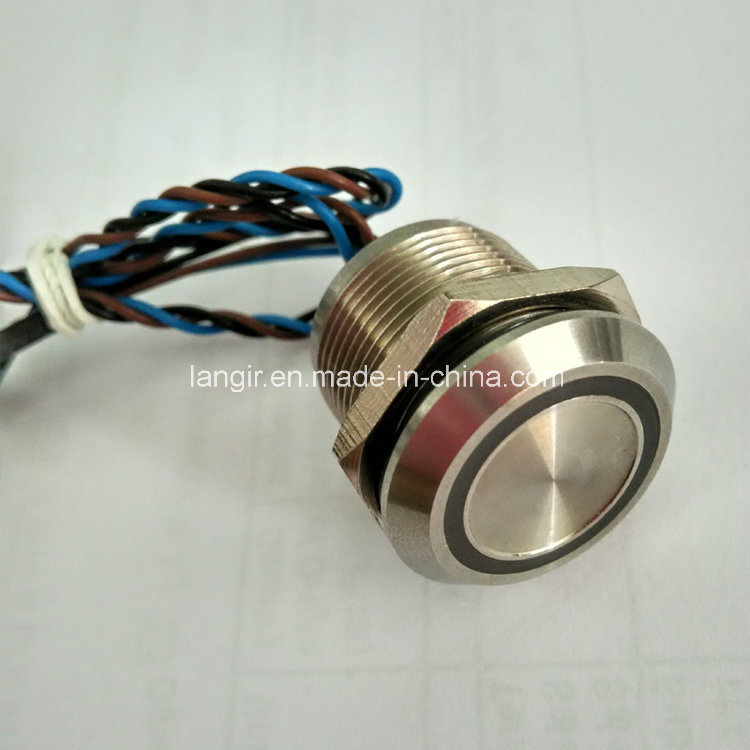

Stainless Steel 316L 24V Blue Ring LED Latching 19mm Piezo Switch IP68 Waterproof
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
Distinctive features:19mm Piezo Switches
These switches are part of the PZ series including models with dia. 12, 16, 19, 22, 25 and 30mm bushing. Sealed to IP68 or IP69K, easy to clean metal surface, long life (50 million cycles), ring or dot illumination, custom configurations.Features:Easy to clean metal surface
Long life (50 million cycles)
Variety of Colro and Material
Sealed to IP68 or IP69K (switches mounted on panel)Advantages:LANGIR Piezo switches are based on a solid-state output allowing for a very long life expectancy (more than 50 millions cycles), ideal for demanding applications where reliability is most important.
The flat actuation surface is completely closed, preventing the intrusion of liquids or other contaminants, perfect for surface cleaning required in the medical and food-processing industries.
High performance sealing (IP68 and IP69K) is achieved due to the one-piece construction of the switch.
No external power supply is required.
The screw-machined metal housing construction and LANGIR's vertical integration allow for the manufacture of a variety of shapes. | ENVIRONMENTAL SPECIFICATIONS |
-Sealing : IP68 per IEC 529, IP69K per DIN 40050-9
(switches mounted on panel or not)
-Vibration resistance : 10-500 Hz / 10 g per IEC 60068-2-6
-Operating temperature : -40°C to +75°C
-EMC compatibility according to EN 61058-1 for the whole range
-EMC compatibility according to EN 61000-4 & EN61000-6-2 for model 1A (code 002) |
| MATERIALS |
-Case : aluminium, anodized or stainless steel 316L or brass, chrome plated
-Multi-wire leads section AWG24 length 300 mm, twisted by pair
-Cable, length 300 mm, section depending on switch model
-PC terminals : Gold or Tin plated |
| ELECTRICALANDGENERALSPECIFICATIONS |
-Max. current/voltage rating : 200mA 5~24VAC/DC
-Switch resistance ON : 10Ωmax.
-Switch resistance OFF : 5MΩ min.
-Operating force : 6 to 15N
-Life expectancy : 50 million cycles
-LED consumption : Illuminated dot : 10mA - Illuminated ring : 20mA |
| Electrical Data |
| Functions | Momentary / Latching |
| Contact Arrangement | SPST N.O. / N.C. |
| Pulse Duration | 125 - 300mS Momentary only |
| Prolonged | up to 6 sec |
| Voltage | 1 - 24V AC/DC |
| Switching Current | 0.2A /1A |
| Rated Breaking Capacity | 1W |
| Operating Cycles | >50,000,000 |
| Switch Resistance OFF | > 5 MΩ |
| Switch Resistance ON | < 20 Ω |
| Capacity | 30pF |
| Contact Configuration | Free polarity |
| Mechanical Data |
| Material | Aluminium 6061 T651/ Stainless Steel 316L |
| Actuating Force | 3 - 5N |
| Connection | Wires, Pins, Cables |
| Actuating Travel | 0.002mm |
| Shock Protection | IK 06 |
| Fastening Torque | 2.5Nm |
| Anodize Colors | Gold / Red / Blue / Black / Green / Natural |
| Environmental Data |
| Operating Temperature | -40°C to 75°C std. |
| IP Protection | IP69K (front and back) |
| Prod Model: |
PZS19BK1NOLB |
| Product Name: |
Piezo Switch |
| Size: |
19mm |
| Is Customized: |
Yes |
| Head: |
Chamfer 3.0 Head |
| Rating: |
200mA 24VAC/DC |
| Function: |
Self-Locking |
| Waterproof: |
IP68 |
