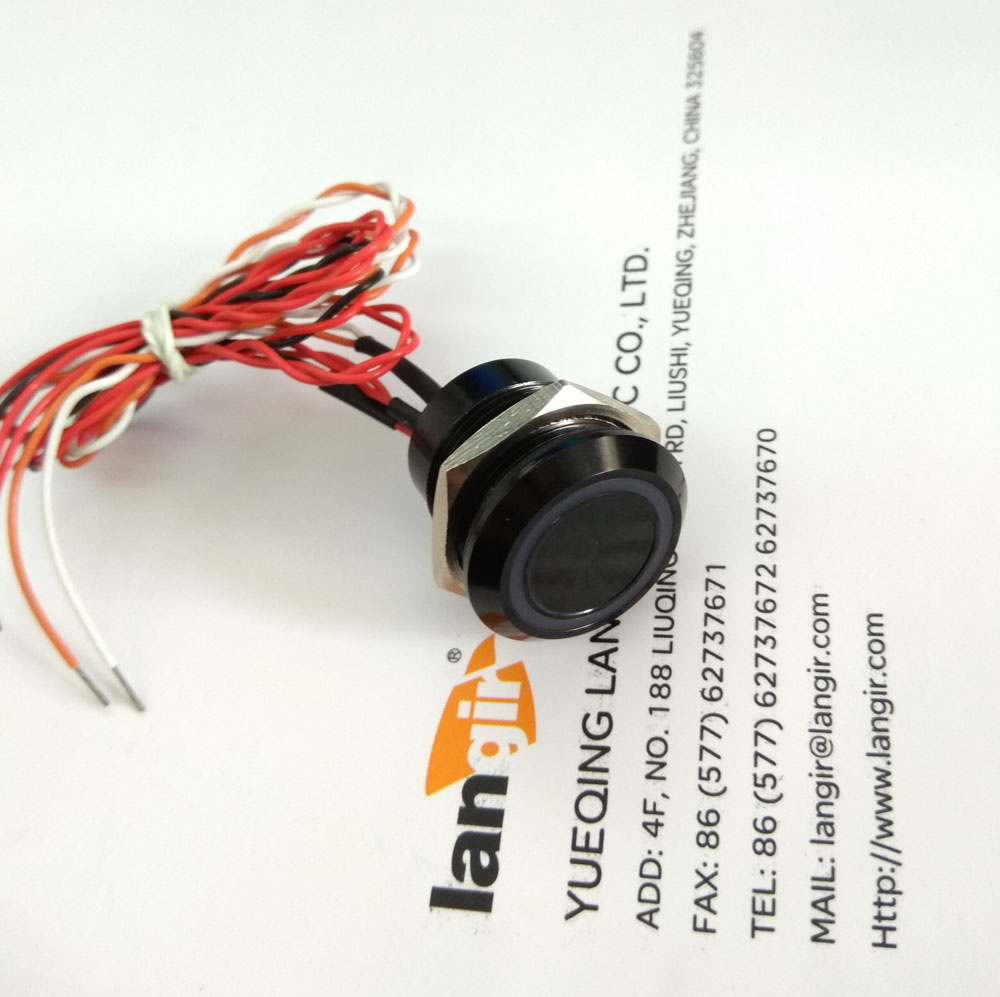

19mm Black Aluminium Piezo Switch
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
Distinctive features:19mm Piezo Switches
These switches are part of the PZ series including models with dia. 12, 16, 19, 22, 25 and 30mm bushing. Sealed to IP68 or IP69K, easy to clean metal surface, long life (50 million cycles), ring or dot illumination, custom configurations.Features:Easy to clean metal surface
Long life (50 million cycles)
Variety of Colro and Material
Sealed to IP68 or IP69K (switches mounted on panel)Advantages:LANGIR Piezo switches are based on a solid-state output allowing for a very long life expectancy (more than 50 millions cycles), ideal for demanding applications where reliability is most important.
The flat actuation surface is completely closed, preventing the intrusion of liquids or other contaminants, perfect for surface cleaning required in the medical and food-processing industries.
High performance sealing (IP68 and IP69K) is achieved due to the one-piece construction of the switch.
No external power supply is required.
The screw-machined metal housing construction and LANGIR's vertical integration allow for the manufacture of a variety of shapes.Technical Data:| Electrical Data |
| Functions | Momentary / Latching |
| Contact Arrangement | SPST N.O. / N.C. |
| Pulse Duration | 125 - 300mS Momentary only |
| Prolonged | up to 6 sec |
| Voltage | 1 - 24V AC/DC |
| Switching Current | 0.2A /1A |
| Rated Breaking Capacity | 1W |
| Operating Cycles | >50,000,000 |
| Switch Resistance OFF | > 5 MΩ |
| Switch Resistance ON | < 20 Ω |
| Capacity | 30pF |
| Contact Configuration | Free polarity |
| Mechanical Data |
| Material | Aluminium 6061 T651/ Stainless Steel 316L |
| Actuating Force | 3 - 5N |
| Connection | Wires, Pins, Cables |
| Actuating Travel | 0.002mm |
| Shock Protection | IK 06 |
| Fastening Torque | 2.5Nm |
| Anodize Colors | Gold / Red / Blue / Black / Green / Natural |
| Environmental Data |
| Operating Temperature | -40°C to 75°C std. |
| IP Protection | IP69K (front and back) |

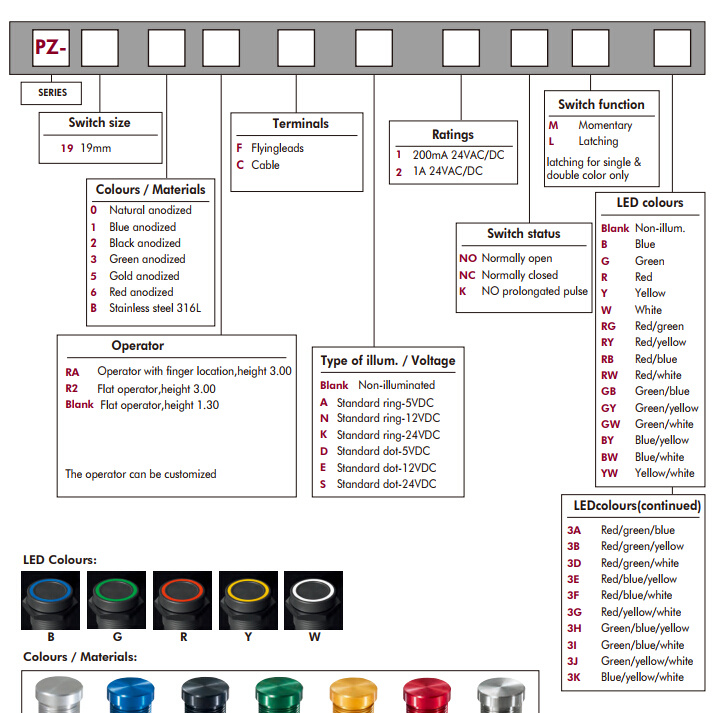

| Prod Model: |
PZ192RAFN1NOMR |
| Function: |
Momentary Normal Open |
| Material: |
Aluminum Black Anodized |
| Ratings: |
200mA 24V DC |
| Type: |
Normal Open |
| Usage: |
Reset Button |
| Brand: |
Langir |
| Certification: |
RoHS |
