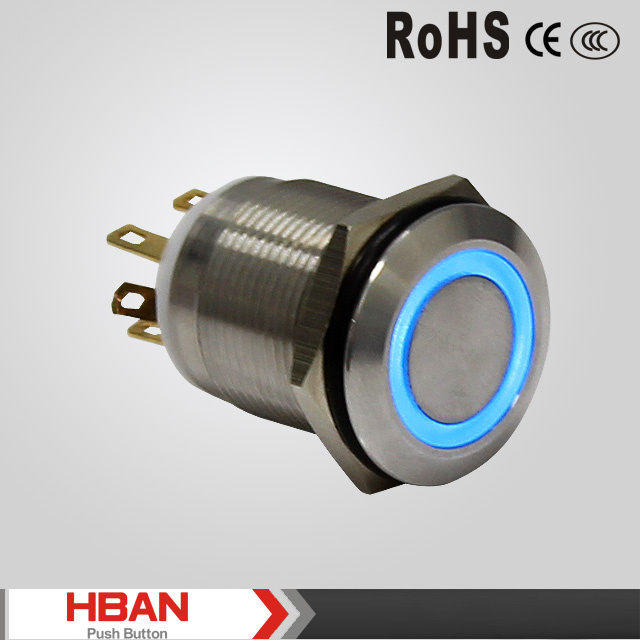

19mm stainless steel ring illuminated momentary push button switch
Item No.:
HBS1GQF-11E/S
Mounting Hole Size: Φ 19mm
Switch Rating: 5A/250VDC
The Front Shape: FLAT ROUND
The Crust Material: Nickel-plated Brass / Stainless Steel
Protection Degree: IP65, IK09
Contact configuration:1NO1NC
Packging Details:
We pack 40 pieces diameter 16mm metal push button switches into 1 foam box to protect them. We supply 40 pieces rubber rings and 1 piece guarantee card with these switches. Then we packed this foam box into a plastic bag, it will packed into a small box with 3 layers corrugated. Finally, we packed 10boxes / 20 boxes into
A 5 layers corrugated export carton.
About Us:
Yueqing Dahe Electric Co., Ltd is a professional manufacturer of push button
Switch, signal lamp, buzzers, waterproof and anti vandal metal push button switch for more than 10 years with CE,RoHS ,UL,CCC,TUV certificates.
Our products are widely used in machinery, machine tools, electric power,
Electronics, production control, medical, banks, ships, automation and other
Industries.
We can customize push button switch according to your specification, If you have any requirement or question, please feel free to contact us.
We offer a warranty on all items that we sold. Item will be tested before ship,it will be in good condition,if there are some problems with the item,feel free to contact us. send the photo to us that we can check and give you best solution .
Tel: 0086-577-62708000 Fax: 0086-577-62708007
FAQ:
Why choose us?
1:complete product catagory,metal push button switch,plastic bush button switch,signal light,rotary switch,key lock switch,emergency stop switch,buzzer and so on.
2:13 years manufacturing experiences
3:factory direct price
4safe payment terms:T/T,PAYPAL,WEST UNION
5:OEM avaliable
6 provideing customized prodects
| Item No. | HBS1GQF-11E/S |
| Specification | 1NO1NC MOMENTARY |
| Terminal Type | PIN TERNIMAL |
| Switch Type | C(SINGAL BREAKPOINT SNAP-ACTION CHANGEOVER CONTACT) |
| Switch Specification | Ith:3A Ui: 250VDC |
| Contact Resistance | ≤50m Ω |
| Insulation Resistance | ≥1000MΩ |
| Dielectric Strength | 2000V AC |
| Operating Temperature | -20degree~+55degree |
| Machanical Life | >2,000,000 times |
| Electrical Life | >50,000 times |
| Panel Thickness | 1~10mm |
| Torque | 5~14Nm |
| Operating Pressure | About 2.5-4N |
| Operating Stroke | About 2.8mm |
| Protection Degree | IP65,IK09 |
| Material | Contact | Sliver Alloy |
| Button | Nickel-plated Brass | Stainless Steel |
| Case | Nickel-plated Brass | Stainless Steel |
| Base | PBT |
| Lamp type | (LED)ring illumination |
| lamp color | R/W/G/O/Y/B |
| Lamp voltage | 6V/12V/24V/26V/110V/220V |
| Life | 50000hours |
Yueqing Dahe Electric Co., Ltd. Set up on 2003, is a professional manufacturer of push button switch, indicator lights, signal lamp, buzzers, high-intensity resistance and anti-vandal metal push button switch.
Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries. We have state-of-the-art production, laboratory equipment and testing apparatus, and insist on the quality of survival, to serve and promote the development quality management service support system, to ensure that the product of the index is quality controlled state.
After years of pioneering spirit, the company has now made a number of patents, the products have passed national mandatory CCC certification, CE certification and RoHS certification, with high quality and cost-effective, favored by the majority of users. We sincerely welcome people to join together to create brilliant.
At present, we cooperate with customers in more than 50 countries and areas. We sincerley hope to cooperate with you. Welcome to become our Distributor in your city.
Tel: 0086-577-62708000 Fax: 0086-577-62708007
