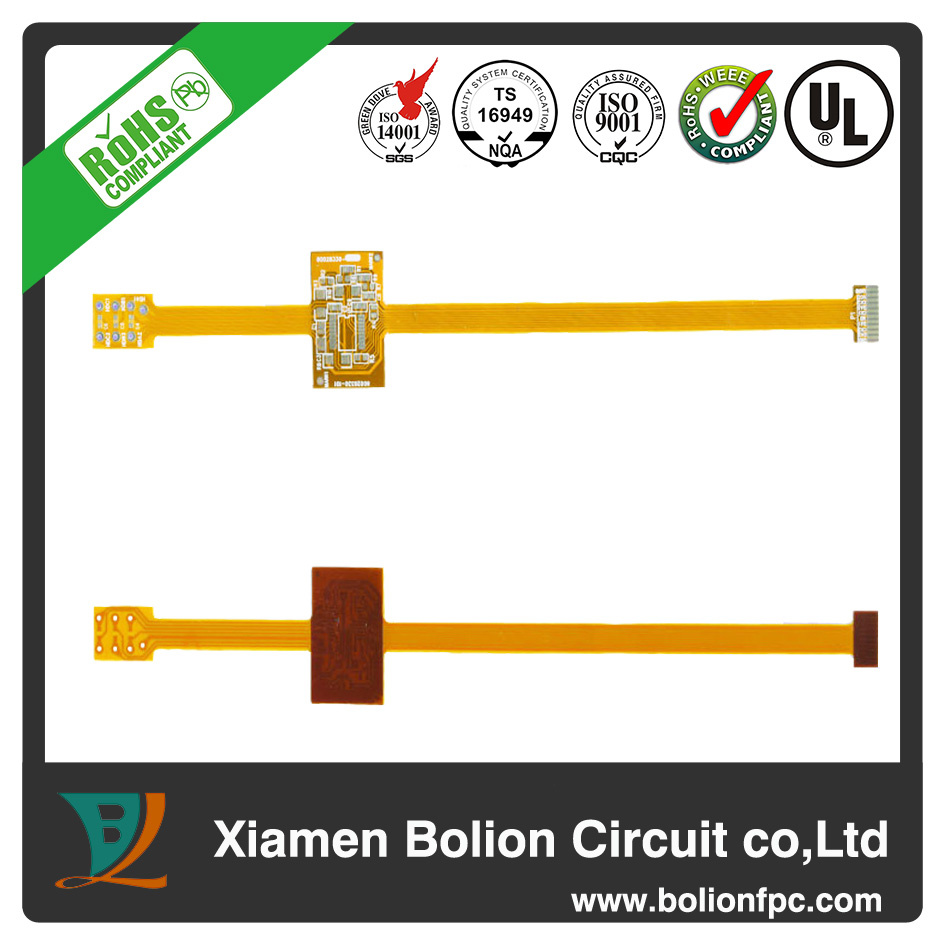

Single-sided Flexible Printed Circuit Board

Model: S6025
Type: Single-sided FPCB
Base material: 25um PI, 20um ADH, 1oz CU
Dimensions: 250 x 200mm
Coverlay: 25um ADH/25um PI
Surface treatment: ENIG (Au: 0.05-0.12um, Ni:2-6um)
Coverlay tolerance: ±0.3mm
Meet the RoHS & WEEE lead-free requirement

Process capability:

Base film thickness:
Polyamide: 12.5/25/35/50um
Polyester: 12.5/25/35/50um
Copper thickness: 12/17.5/35/50/70/105um
Minimum line width/line space: 0.075/0.075mm
Minimum hole size: 0.2mm
Tolerance: outline ±0.05/cover layer ±0.2mm
Peel strength:
Polyamide: above 1.0kgf/cm
Polyester: above 0.8kgf/cm
Solder resistance:
Polyamide: 260°C/10 seconds
polyester: 204°C/5 seconds
Certificates: UL, TS16949
Meets RoSH and WEEE lead-free requirement

Main Technique Index
Description	Parameters
Description	Polyimide	Polyester
Base film Thickness (um)	12.5,25,35,50	12.5,25,35,50
Copper Thickness (um)	12,17.5,35,50,70,105
Min. Line Width/Line Space (mm)	0.075/0.075
Min. Hole Size (mm)	0.15
Tolerance (mm)	Outline:+/-0.05; Coverlay: +/-0.2
Peel Strength (kgf/cm)	Above 1.0	Above 0.8
Solder Resistance	260C 10 seconds	204C 5 seconds

Surface Treatment
Content	Normal coating thickness	Normal PNL size
Plating nickel gold (In house)	Ni:2-9um;Au:0.03-0.09um	300mm×400 MM
Plating hard gold (In house)	Ni:2-9um;Au:0.1-1.0um	300mm×400 MM
Plating soft gold (In house)	Ni:2-9um;Au:0.03-0.09um	300mm×400 MM
Plating pure tin (In house)	2.0-8.0um	300mm×400 MM
Immersion Tin (In house)	0.3-0.6um	300mm×400 MM
OSP (In house)	N/A	300mm×400 MM
ENIG (Hard Nickel) (In house)	Ni:2-6um;Au:0.03-0.10um	300mm×400 MM
ENIG (Soft Nickel) (In house)	Ni:2-6um;Au:0.03-0.10um	300mm×400 MM
ENEPIG (Hard Nickel) (In house)	Ni:2-6um;Au:0.03-0.10um	300mm×400 MM
HASL (Outsource)	Cover the pads with min thickness 1~2 um	300mm×400 MM
Immersion silver (Outsource)	Per standand creteria	300mm×400 MM

Prod Model:	S6025
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimensions:	250 * 200mm
